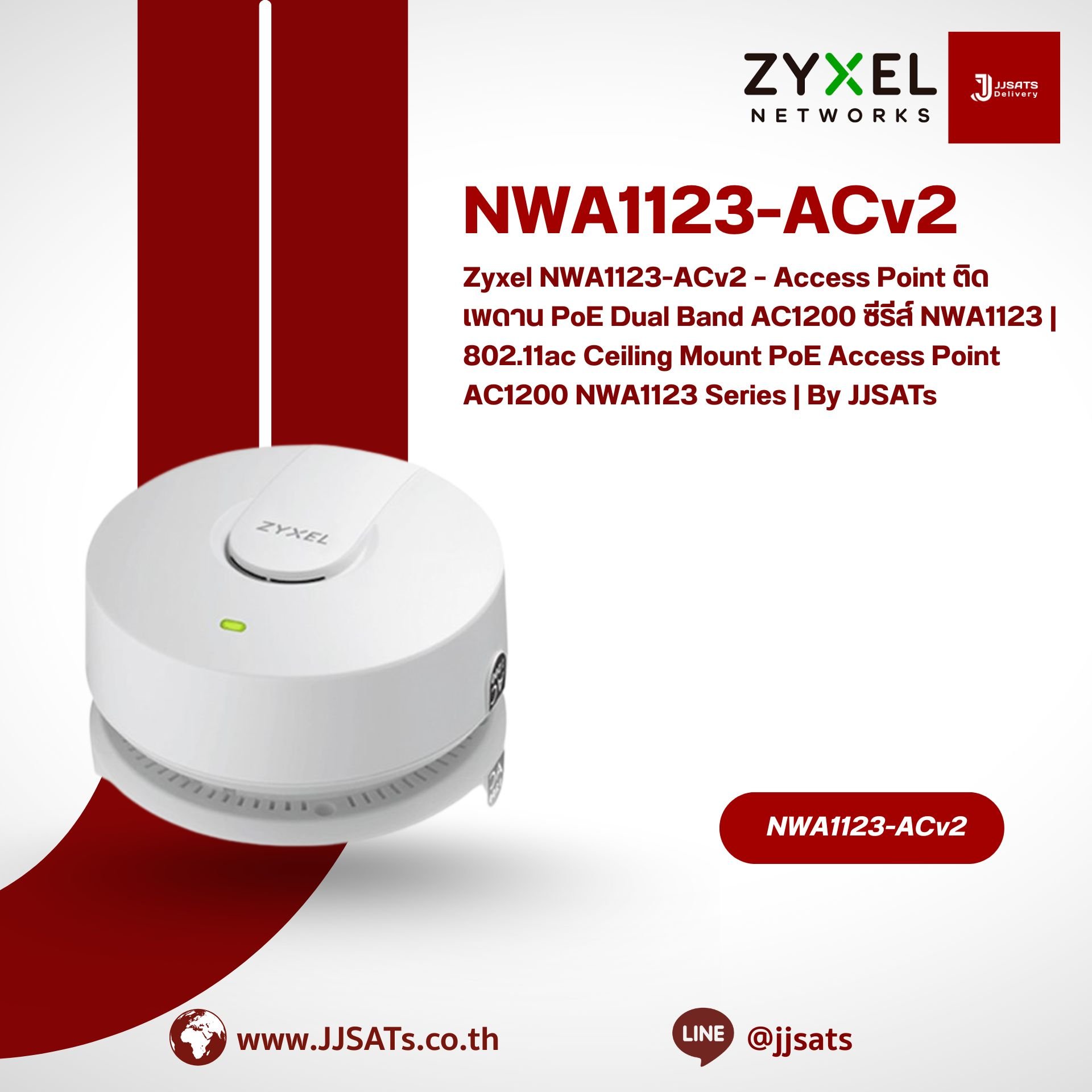

Zyxel NWA1123-ACv2 – 802.11ac Ceiling Mount PoE Access Point AC1200 NWA1123 Series | By JJSATs

Attribute:

SKU : NWA1123-ACv2

Brand : Zyxel

Share

Key Features and Detailed Specifications of Zyxel NWA1123-ACv2

  • Model: NWA1123-ACv2
  • Type: 802.11ac Dual-Radio Ceiling Mount PoE Access Point
  • Standard: IEEE 802.11 a/b/g/n/ac (Dual-band AC1200)
  • Data Rate: Up to 1200 Mbps (300 Mbps at 2.4GHz and 866 Mbps at 5GHz)
  • LAN Interface: 1 x 10/100/1000 Mbps RJ-45 (Gigabit LAN)
  • Antenna: Internal 2T2R MIMO (Gain: 3 dBi @ 2.4GHz, 4 dBi @ 5GHz)
  • Management: Hybrid mode support (Standalone or NebulaFlex Cloud)
  • Power Source: PoE (802.3af) or DC 12V 1A adapter
  • Security Features: WPA/WPA2-PSK, WPA/WPA2-Enterprise, Multiple SSIDs (up to 16)
  • Dimensions: 130 x 130 x 54.7 mm
  • Weight: 300 g
Zyxel NWA1123-ACv2 (AC1200 PoE AP)
Wireless Standard802.11 a/b/g/n/ac
Frequency Band2.4 GHz & 5 GHz
Maximum Throughput1200 (Combined)Mbps
LAN Port1 x 10/100/1000M RJ-45
Antenna System2T2R Internal MIMO
PoE Compliance802.3af standard
Power Draw9W
Max SSID Count16
Operating Environment0 to 50°C
Product Dimensions130 x 130 x 54.7mm
