CGP-OLT-8T Cisco Catalyst – 8-Port GPON OLT for ONT Connection and Central Control | FTTx Core Network Hub Supporting Large-Scale Fiber Network Expansion | By JJSATs

Name: CGP-OLT-8T Cisco Catalyst – 8-Port GPON OLT for ONT Connection and Central Control | FTTx Core Network Hub Supporting Large-Scale Fiber Network Expansion | By JJSATs
Brand: Cisco
SKU: CGP-OLT-8T
Availability: InStock

Attribute:

SKU : CGP-OLT-8T

Add to wishlist

Compare

Categories : GPON FTTx/FTTr , Network Infrastructure , Cisco GPON OLT ,

Brand : Cisco

Product Type: Optical Line Terminal (OLT) for GPON networks.
Model Number: CGP-OLT-8T.
Downlink Ports: 8 GPON ports (for connecting to ONTs).
Uplink Ports (Gigabit): 4 Gigabit Combo ports (supports both Copper RJ45 and SFP optical modules).
Uplink Ports (10 Gigabit): 2 SFP+ ports for 10 Gigabit Ethernet uplinks.
Switching Capacity: 78 Gigabits per second (Gbps).
Forwarding Rate: 65 Million packets per second (Mpps).
Maximum Split Ratio: 1:128 (1:64 recommended).
Physical Distance: Supports up to 20 km physical distance for ONT ranging.
Form Factor: 1U Rack-mountable design.
Power Redundancy: Supports both default AC power supply and optional secondary AC or DC power supply.
Fans: Modular and replaceable fans for high availability.

Cisco Catalyst PON OLT 8-port GPON Switch (CGP-OLT-8T)
High-Performance Optical Line Terminal (OLT) for Fiber Networks
Model Number	CGP-OLT-8T
Downlink GPON Ports	8 GPON Ports (for connecting to ONTs)
Gigabit Uplink Ports (GE)	4 Gigabit Combo Ports (RJ45 or SFP)
10 Gigabit Uplink Ports	2 SFP+ Ports
Total Switching Capacity	78 Gigabits per second (Gbps)
Max Split Ratio	1:128 (Maximum)
Power Redundancy	Supports AC/DC Redundancy (Optional Secondary Supply)
Fans	Modular and replaceable

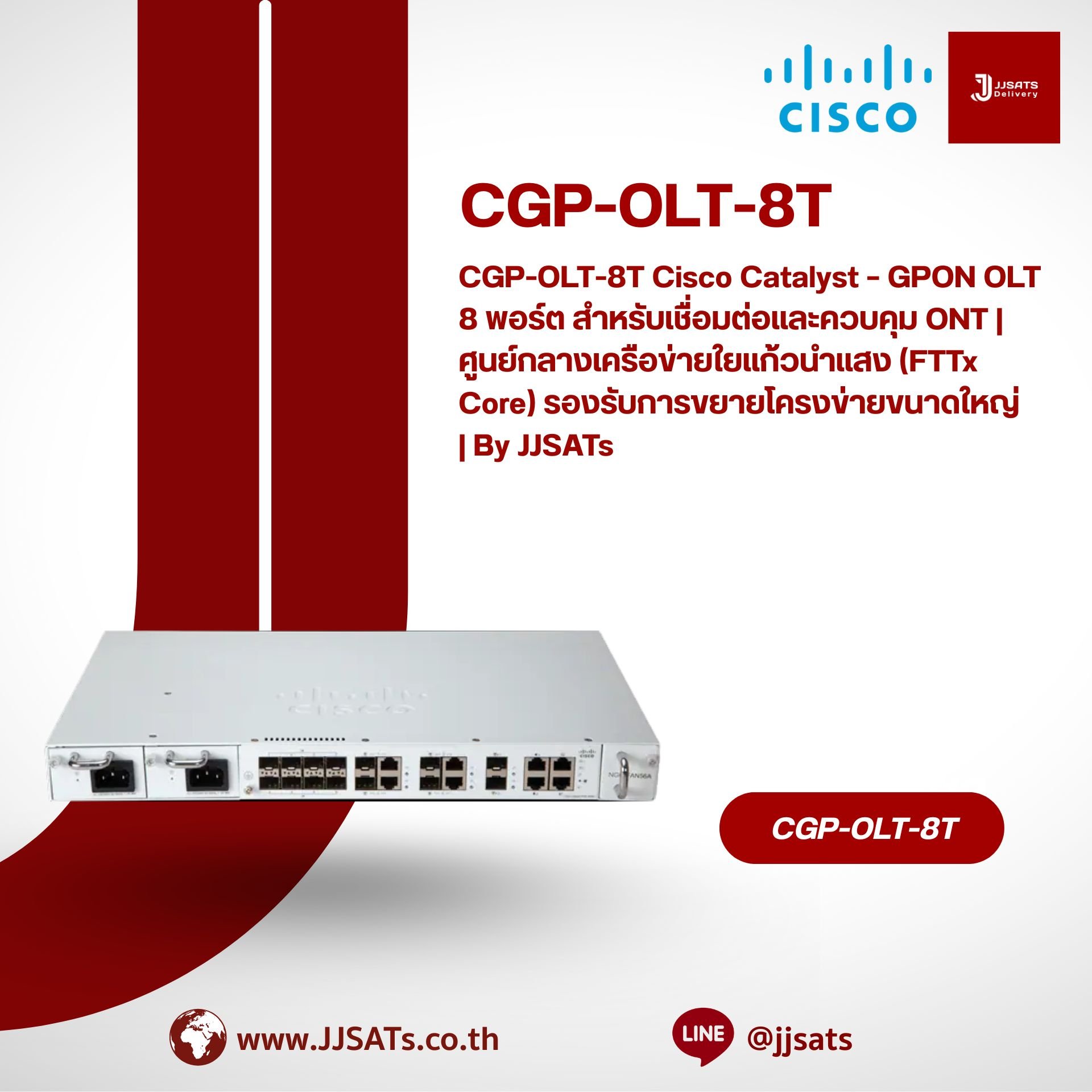

CGP-OLT-8T Cisco Catalyst 8-Port GPON OLT Connection GPON ONT JJSATs
