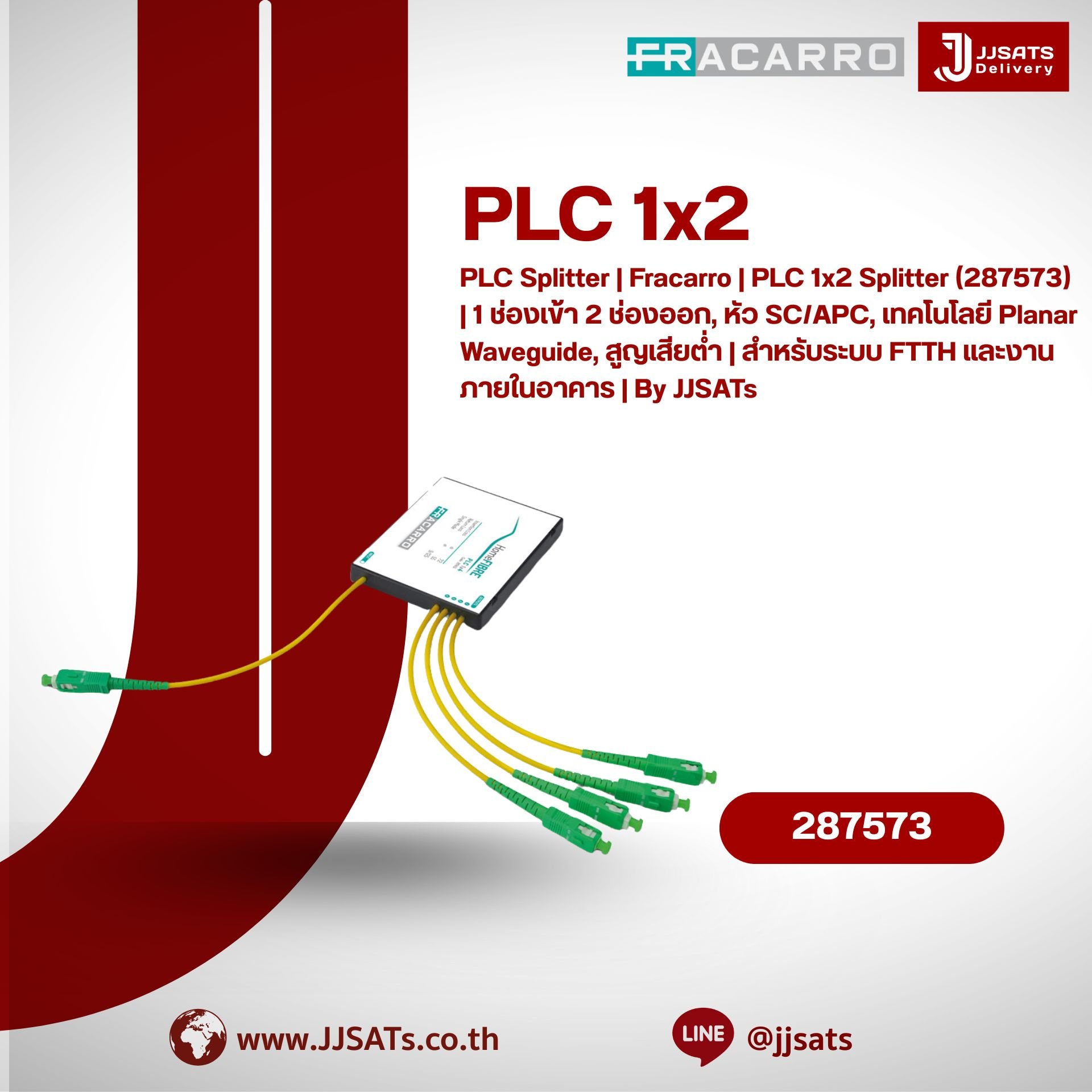

PLC Splitter | Fracarro | PLC 1x2 Splitter (287573) | 1 Input 2 Outputs, SC/APC Connector, Planar Waveguide Technology, Low Loss | For FTTH System and Indoor Applications | By JJSATs

Attribute:

SKU : 287573

Add to wishlist

Compare

Device Type: 2-way Optical Splitter/Divider (1x2 partition).
Technology: Planar Waveguide Circuit (PLC).
Application: Suitable for building ROEs (Residue of Exploitation) and general high-performance optical distribution.
Key Feature: Enables very low insertion losses.
Connectors: SC/APC.
Patch Cords/Pigtails: 1 m length.
Optical Property: Very high Return Loss.
Design: Compact design.

Fracarro PLC 1x2 Optical Splitter (For FTTH)
Key Technical Details
Part Number (Codice)	287573
Number of Inputs (Ingresso)	1 Port
Number of Outputs (Uscita)	2 Ports
Connectors (Connettori)	SC/APC - SC/APC
Optical Insertion Loss (Perdita inserzione ottica)	Less than 4 dB
Return Loss (Perdita riflessione)	Greater than 55 dB
Input Wavelength Range (Lunghezza onda input)	1260-1650 nm
Fiber Type (Tipo fibra)	Single-mode 9/125 (G657 A1)
Operating Temperature (Temperatura lavoro)	-20 to +55 degrees Celsius

PLC 1x2 Splitter PLC Splitter SC/APC Fracarro JJSATs
