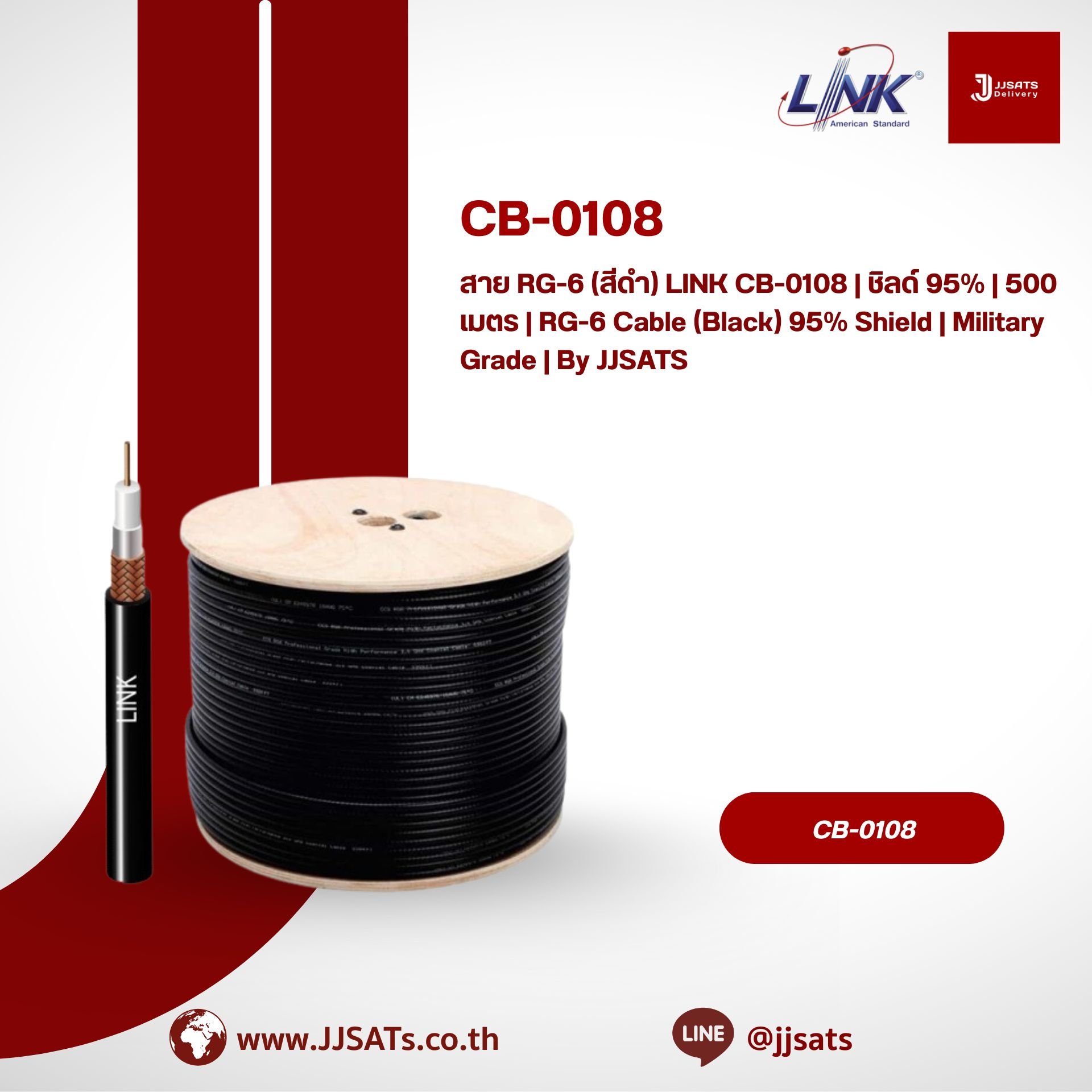

LINK CB-0108 RG-6/U Cable (Black) 95% Shield 500M Reel in Box | Military Grade | By JJSATS

Product Description: LINK CB-0108 RG6 Coaxial Cable, Military Grade, Shield 95% (Bare Copper)

The LINK CB-0108 is a high-quality RG6 coaxial cable classified under the **Military Grade** series, designed for demanding installations where superior signal integrity is crucial. Unlike standard RG6 cables, the CB-0108 features a **Bare Copper** inner conductor with a diameter of 1.02 mm, which offers superior conductivity compared to Copper Covered Steel (CCS), resulting in lower DC resistance. It provides a strong 95% braid shield coverage and is intended for use in professional CCTV, CATV, MATV, and Satellite TV systems. The cable has a 75 Ohm impedance and excellent electrical characteristics.

Main Features:

• Model: CB-0108 (Military Grade).
• Cable Type: RG6 Coaxial Cable with 75 Ohm Impedance.
• Inner Conductor: **Bare Copper (BC)**, 1.02 mm (18 AWG), offering high conductivity.
• Shielding: 95% Braid Shield coverage for high noise rejection.
• Dielectric: Foamed Polyethylene, 4.57 mm diameter.
• Jacket: Black PVC Jacket, 6.86 mm diameter, suitable for indoor use.
• Screening Attenuation: >= 90 dB (5~1000 MHz), indicating superior shielding performance.
• Return Loss: >= 25 dB (5~470 MHz) and >= 20 dB (470~1000 MHz).
