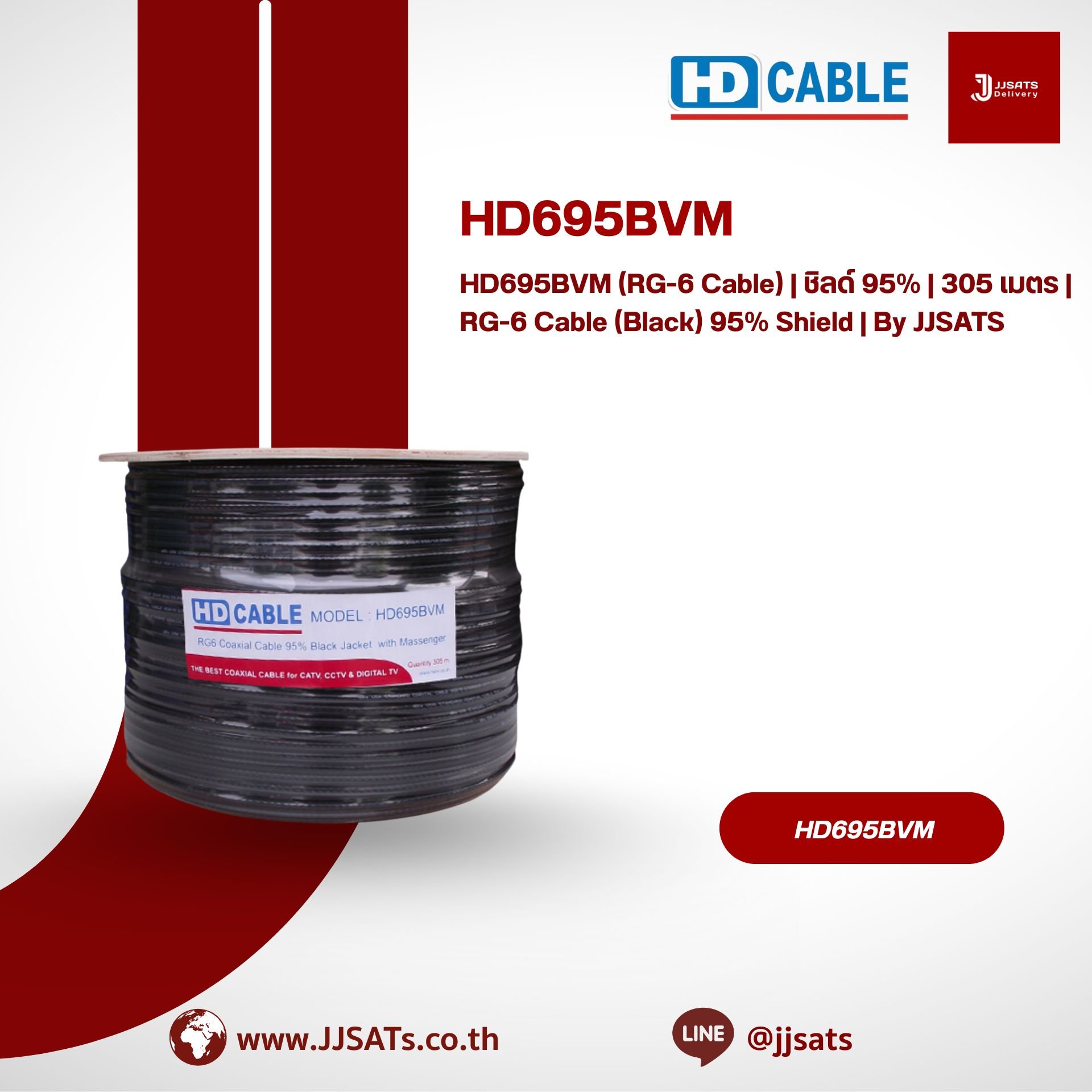

HD695BVM RG-6 Cable (Black) 95% Shield 305M | By JJSATS

Name: HD695BVM RG-6 Cable (Black) 95% Shield 305M | By JJSATS
Brand: HD Cable
SKU: HD695BVM
Availability: InStock

Attribute:

SKU : HD695BVM

Add to wishlist

Compare

Model: HD695BVM
Cable Type: RG6 Coaxial Cable with Messenger Shield 95%
Applications: Suitable for centralized TV systems (CATV/MATV), CCTV systems, and video applications
Center Conductor: 18 AWG Copper-Clad Steel (CCS), 0.040" (1.02 mm) nominal diameter
Dielectric: Foam PE, 0.18" (4.57 mm) diameter
Shield: 95% Shield, consisting of Bonded Foil + 90% Aluminium Braided Shield
Jacket: Black PVC Jacket, 0.030" (0.76 mm) nominal thickness
Messenger: Steel Messenger wire, 0.051" nominal diameter
Impedance: 75 ohms (Ohm) plus/minus 3 ohms
Return Loss: greater than or equal to 20 dB (5 MHz to 1000 MHz)
Velocity of Propagation: Nominal 85.0%

RG6 Coaxial Cable HD1195BVM
Product Model	HD1195BVM
Cable Type	RG11 Coaxial Cable with Messenger Wire
Center Conductor Material / AWG	CCS (Copper-Clad Steel) / 14 AWG
Inner Conductor Diameter	1.63 mm plus/minus 0.005 mm
Insulation Material / Diameter	Physically Foamed PE / 7.112 mm
Shielding	95% Shield (Bonded Aluminium Laminated Tape & Braided Shield)
Messenger Wire	Galvanize Steel 1.83 mm PE 3.47 mm
Jacket Material / Color	PVC / Black
Cable Length	305 M / Roll
Application	CATV/MATV, CCTV Systems, Video Applications, Internet DOCSIS & EOC System
Electrical Characteristics
Impedance	75 Ohm plus/minus 3 Ohm
Nominal Capacitance	52 pF/m
Velocity of Propagation	82%
Return Loss (1000 MHz to 2000 MHz)	greater than or equal to 20 dB
