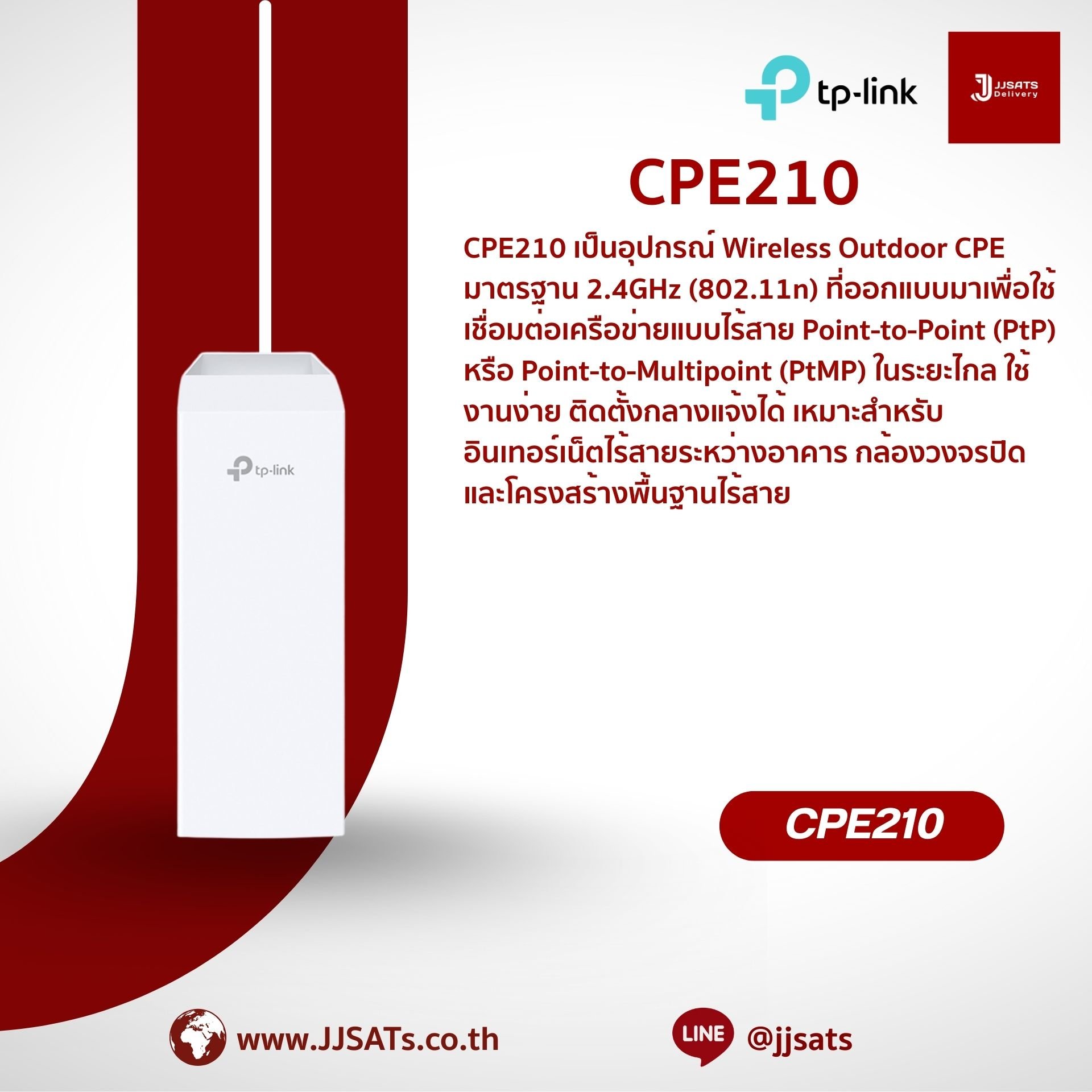

The TP-Link Pharos CPE210 is an Outdoor Wireless CPE operating on 802.11n (WiFi 4) 2.4GHz, designed for Point-to-Point (PtP) and Point-to-Multipoint (PtMP) wireless connections. It delivers long-range, stable internet connectivity for buildings, campuses, and community networks.
Key Features- 2.4GHz WiFi up to 300 Mbps
- Long-range coverage up to 5 km (environment dependent)
- High-Gain Directional Antenna 9 dBi for long-distance links
- Supports Pharos Control / Pharos MAXtream for PtP / PtMP deployment
- Weatherproof IP65 for outdoor installation
- Passive PoE support for simple cabling
Best For- Hotels, resorts, and office buildings needing long-range connectivity
- Small ISPs or community network providers
- Outdoor WiFi networks requiring stable long-distance wireless links
| TP-Link CPE210 |
| Interface | 1 x 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in) |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) Voltage range: 16-27VDC |
| Antenna | Built-in 9dBi 2x2 Dual-polarized Directional Antenna |
| Protection | 15 KV ESD Protection, 6 KV Lightning Protection, IPX5 waterproof |
| Processor | Qualcomm Atheros 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |
