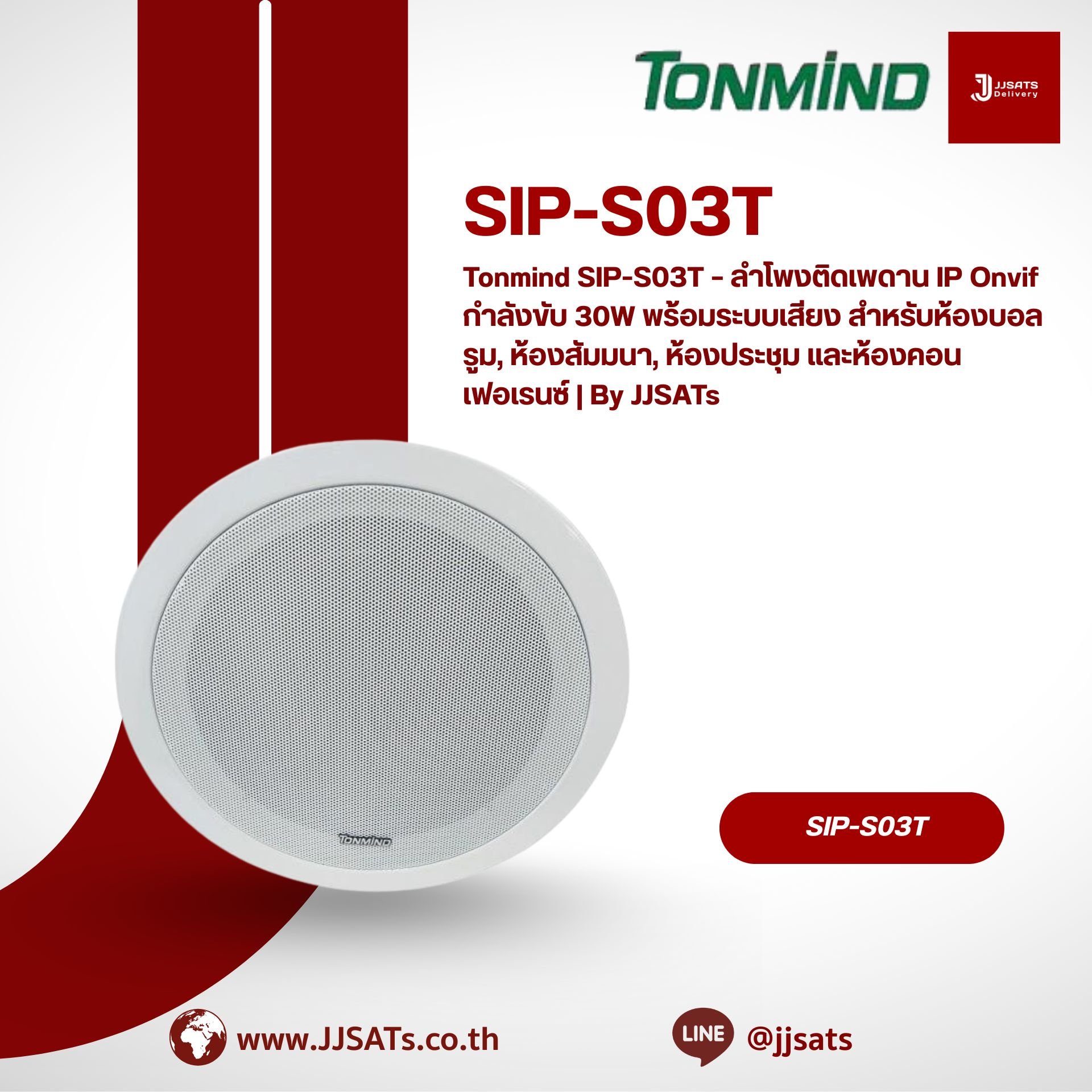

| Tonmind IP Ceiling Speaker (SIP-S03T) Specifications | |
|---|---|
| Audio | |
| Codec | OPUS 48 kHz, MP3 44.1 kHz, G.722 ADPCM 16 kHz, G.711 PCMU 8 kHz, G.711 PCMA 8 kHz |
| MIC | Built-in MIC: No |
| Speaker (Max SPL) | 110dB |
| Frequency Response | 93Hz ~ 20KHz |
| Frequency Range | 500-2KHz ±10dB, 400-12KHz ±20dB |
| Harmonic Distortion | 0.1% at 1kHz |
| Signal to Noise Ratio | 91dB |
| Network | |
| Security | Password protection, IP address filtering, Digest authentication, User access log |
| Network Protocol | SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Network Interface | 10/100 Base-TX, RJ45 |
| VoIP | Supports SIP protocol for integration with VoIP systems/PBX. Supports ONVIF protocol for interaction with security systems VMS/NVR. Supports SIP features: secondary/backend SIP server, IPv4 (IPv6 future). Supports codecs: OPUS, G711U, G711A, GSM, MP3, WAV. |
| Amplifier | |
| Amplifier | Built-in 30W Amplifier |
| General | |
| Material | Metal |
| Rated Power | 15W |
| Power Supply | PoE or DC 12V |
| Installation | In Ceiling |
| Dimensions | 265 x 105 mm |
| Weight | 1.95 KG |
| Languages | English |
| Warranty | 2 years |
| Package Includes | Network Ceiling Speaker, User Manual |
