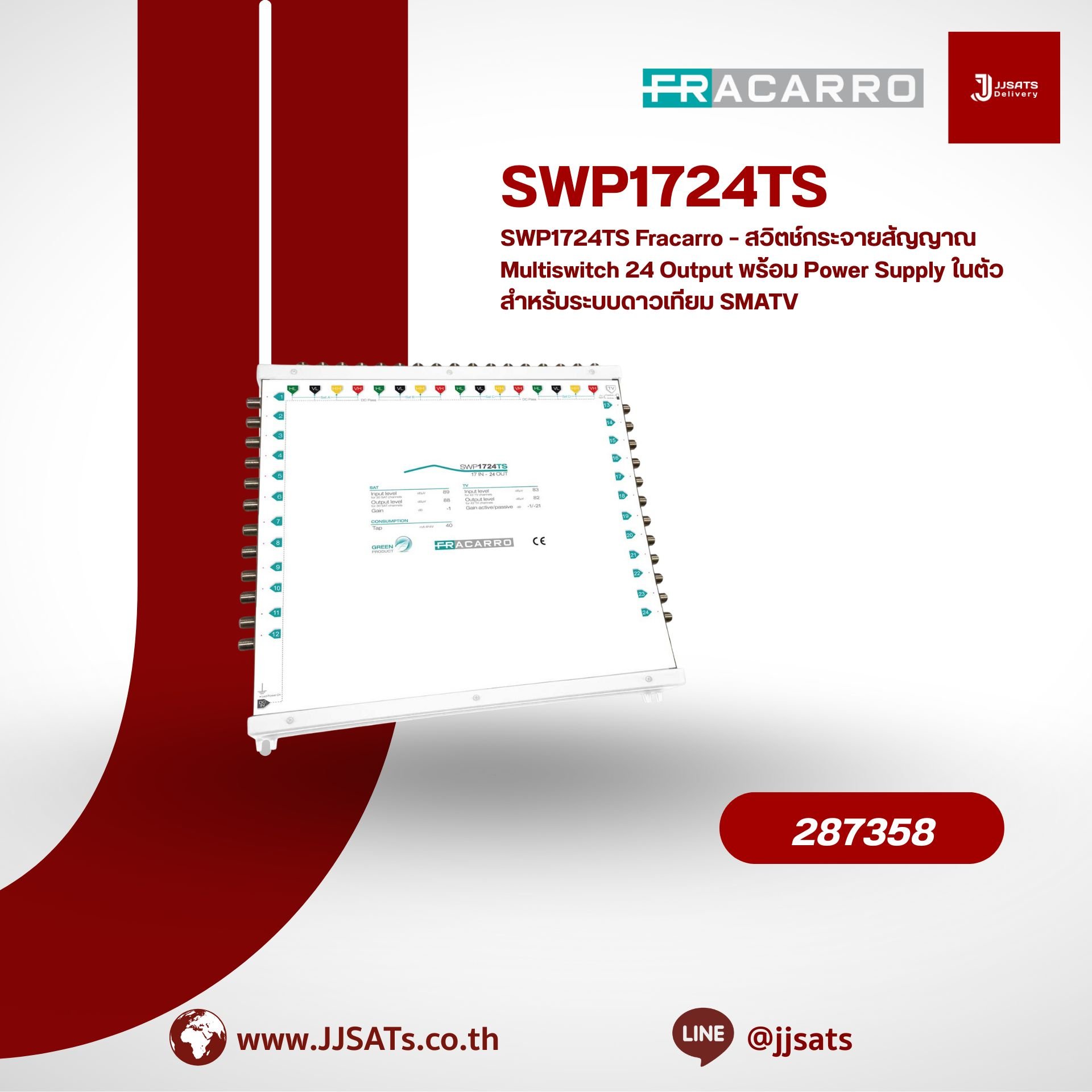

SWP1724TS Fracarro – 24 Output Multiswitch with Built-in Power Supply for SMATV Systems

Name: SWP1724TS Fracarro – 24 Output Multiswitch with Built-in Power Supply for SMATV Systems
Brand: FRACARRO
SKU: 287358
Availability: InStock

Attribute:

SKU : 287358

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

Fracarro SWP1724TS (287358) Multiswitches 17-input compact multiswitch with 24 output taps; DIP switch to select active and passive TV gain.

Technical characteristics:

Satellite band up to 2300MHz.
High output level to cover long cable distances(60m with 6.7mm cable).
Each port has an LED to show correct reception of DiSEqC commands.
Return channel included when TV gain is passive (5-65MHz).
When TV gain is passive, the product is fully powered by the receivers, the power supply only serves to power the active TV gain, other amplifiers and LNBs.
External PSU1340TS power supply (13V, 4A) included in the package with Male Jack connector (2.1x5.5x12; inside positive, outside negative); to optimise installation space and reduce maintenance time.
Small size due to matrix switching system, with connectors on both sides.
Easy to install thanks to standard input colouring.

SWP1724TS
Code	287358
Optical input
Inputs	16 SAT, 1 TV
Taps	24
SAT
Bandwidth	950-2300	MHz
Gain	-7/-3	dB
Max Output level	100	dBµV
TV
TV bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active)	-3	dB
Gain (Passive)	-23	dB
Max Output level	Active TV: 95	dBµV
Return channel
Bandwidth	Passive TV: 5-65	MHz
Consumption
Tap	50	mA
Power supply voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@13V; Passive TV: entirely fed by the receiver	mA
Maximum power supply current SAT	Passive TV: 4000; Active TV: 3840	mA
