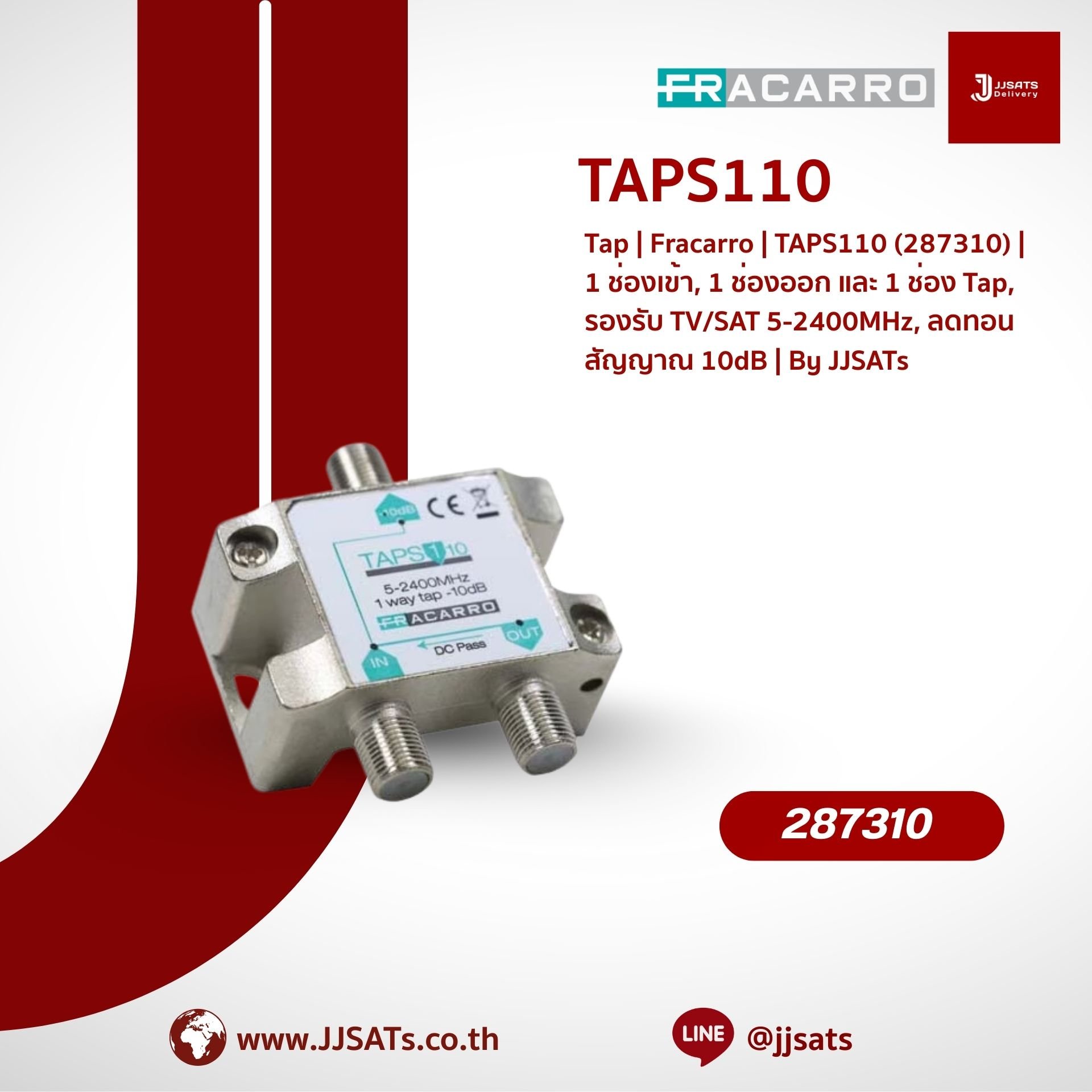

Tap | Fracarro | TAPS110 (287310) | 1 Input, 1 Output & 1 Tap Output, Supports TV/SAT 5-2400MHz, 10dB Attenuation | By JJSATs

Name: Tap | Fracarro | TAPS110 (287310) | 1 Input, 1 Output & 1 Tap Output, Supports TV/SAT 5-2400MHz, 10dB Attenuation | By JJSATs
Brand: FRACARRO
SKU: 287310
Availability: InStock

Attribute:

SKU : 287310

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Splitter & Tapoff ,

Brand : FRACARRO

Technical chars

- The elegant and compact design allows installation in any junction box.
- The die-cast zinc products in this series ensure high performance, with very low insertion losses even at SAT frequencies and high isolation between outputs.
- Prepared for earth connection and wall mounting.
- DC is allowed to pass between the through output and input.

TAPS110
Code	287310	unit
Taps	1
Insertion loss
RC 5-40MHz	2	dB
TV 47-862MHz	2	dB
SAT 950-1750MHz	2.5	dB
SAT 1750-2150MHz	3	dB
SAT 2150-2400MHz	3.5	dB

TAPS110 Fracarro JJSATS MATV SMATV CATV Hotel IPTV
