Product Introduction
Lampro LC2.5PO Outdoor Full-Color LED Display
The Lampro LC2.5PO is an outdoor full-color LED display designed for high-quality image and video presentation in outdoor environments. Featuring a fine 2.5 mm pixel pitch, it delivers detailed visuals with a brightness of 4,0004,500 nits and a high refresh rate of 3,840 Hz.
It is suitable for digital signage, commercial displays, and outdoor LED billboards.
Engineered for outdoor applications, the product features efficient heat dissipation, moisture protection, and stable system performance.
Key Features
2.5mm Fine Pixel Pitch
The 2.5 mm pixel pitch delivers high image detail, making it suitable for short- to medium-distance viewing.
High Brightness
Provides 4,0004,500 nits of brightness for outdoor applications.
3,840Hz High Refresh Rate
A high refresh rate of up to 3,840 Hz helps ensure smooth and consistent motion display.
Efficient Heat Dissipation
Designed for effective heat management in outdoor environments.
Weather-Oriented Design
Features moisture protection and a protective adhesive coating on the front of the LED modules, according to the manufacturer's specifications.
2K / 4K Video Support
Supports 2K HD and 4K UHD video input sources.
Why LC2.5PO?
Designed for Outdoor Visual Performance
High Image Clarity: A 2.5 mm pixel pitch and pixel density of 160,000 dots/m² deliver detailed visuals.
Excellent Outdoor Visibility: Brightness of 4,0004,500 nits enhances visibility in outdoor environments.
High-Quality Image and Video Display: A 3,840 Hz refresh rate and support for 2K/4K video sources provide smooth, high-quality visuals.
Long-Term Operation: A rated lifespan of up to 100,000 hours, according to the manufacturer.
Applications
Outdoor LED Display Applications

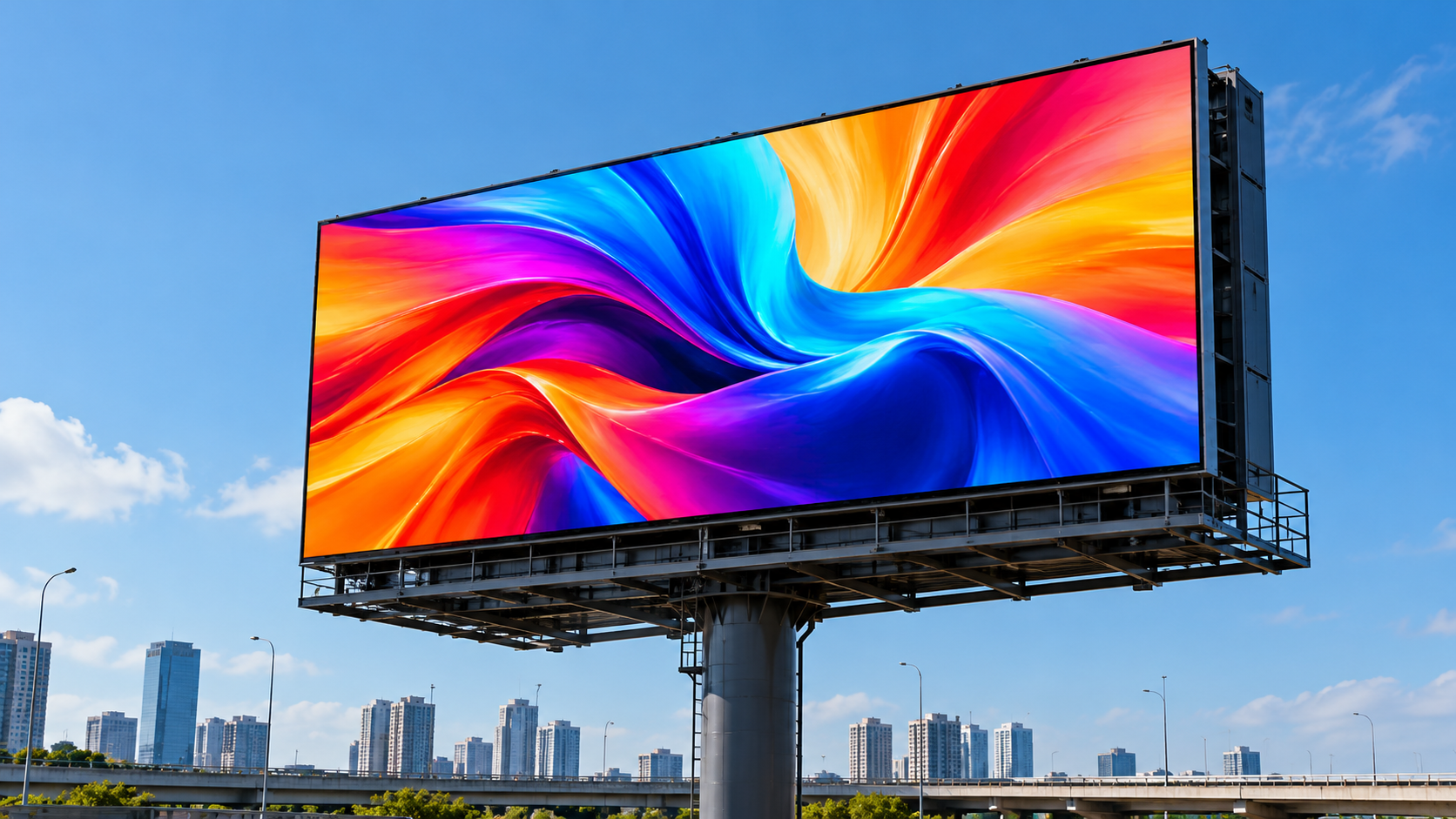

LED Billboards: Large-format digital advertising displays for roadsides, building exteriors, and commercial areas.
Commercial Centers: LED displays for shopping malls and commercial spaces.
Theme Parks: Digital displays for theme parks and entertainment venues.
Outdoor Digital Signage: Digital signage solutions for outdoor advertising, information displays, and public communication.
Product Specifications
Lampro LC2.5PO Technical Specifications
| Lampro LC2.5PO Technical Specifications | |
| LED Type | SMD1415 |
| Pixel Pitch | 2.5 mm |
| Module Resolution | 128 × 64 Pixels |
| Module Dimensions | 320 × 160 × 17.5 mm |
| Pixel Density | 160,000 pixels/m² |
| Brightness | 4,0004,500 cd/m² |
| Color Temperature | 6,500 K (Adjustable: 1,0009,500 K) |
| Contrast Ratio | 5,000:1 |
| Viewing Angle (H/V) | 140° / 140° |
| Refresh Rate | 3,840 Hz |
| Color Processing Depth | 1214 Bit |
| Supported Video Input | 2K HD / 4K UHD |
| Maximum Power Consumption | 879 W/m² |
| Typical Power Consumption | 293 W/m² |
| Input Voltage | AC 90132 V / AC 186264 V |
| Lifespan | 100,000 Hours |
| Operating Temperature | 20°C to +50°C |
| Operating Humidity | 1080% RH |
| Certifications | BIS / CE / CB / RoHS / EAC |

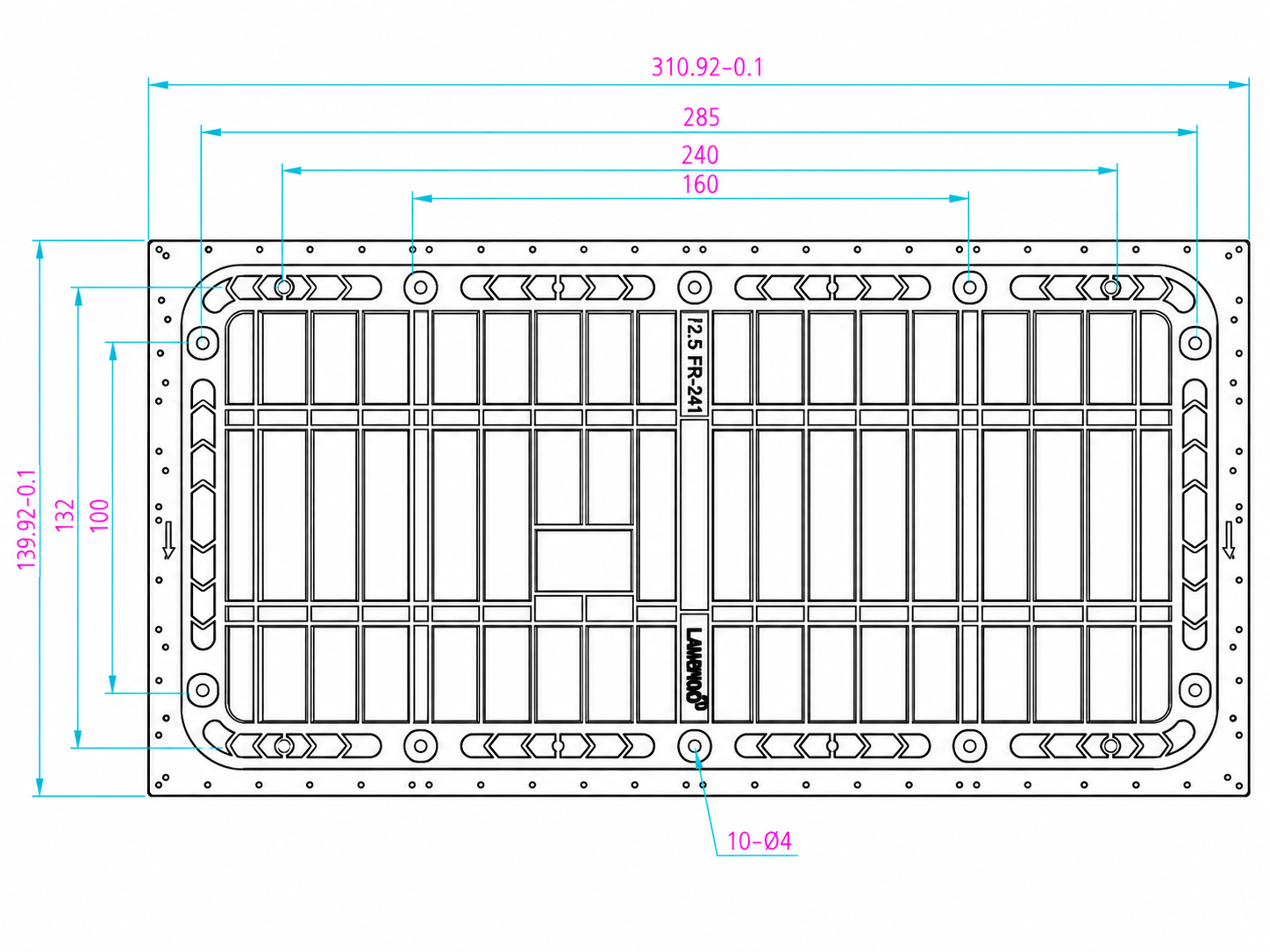

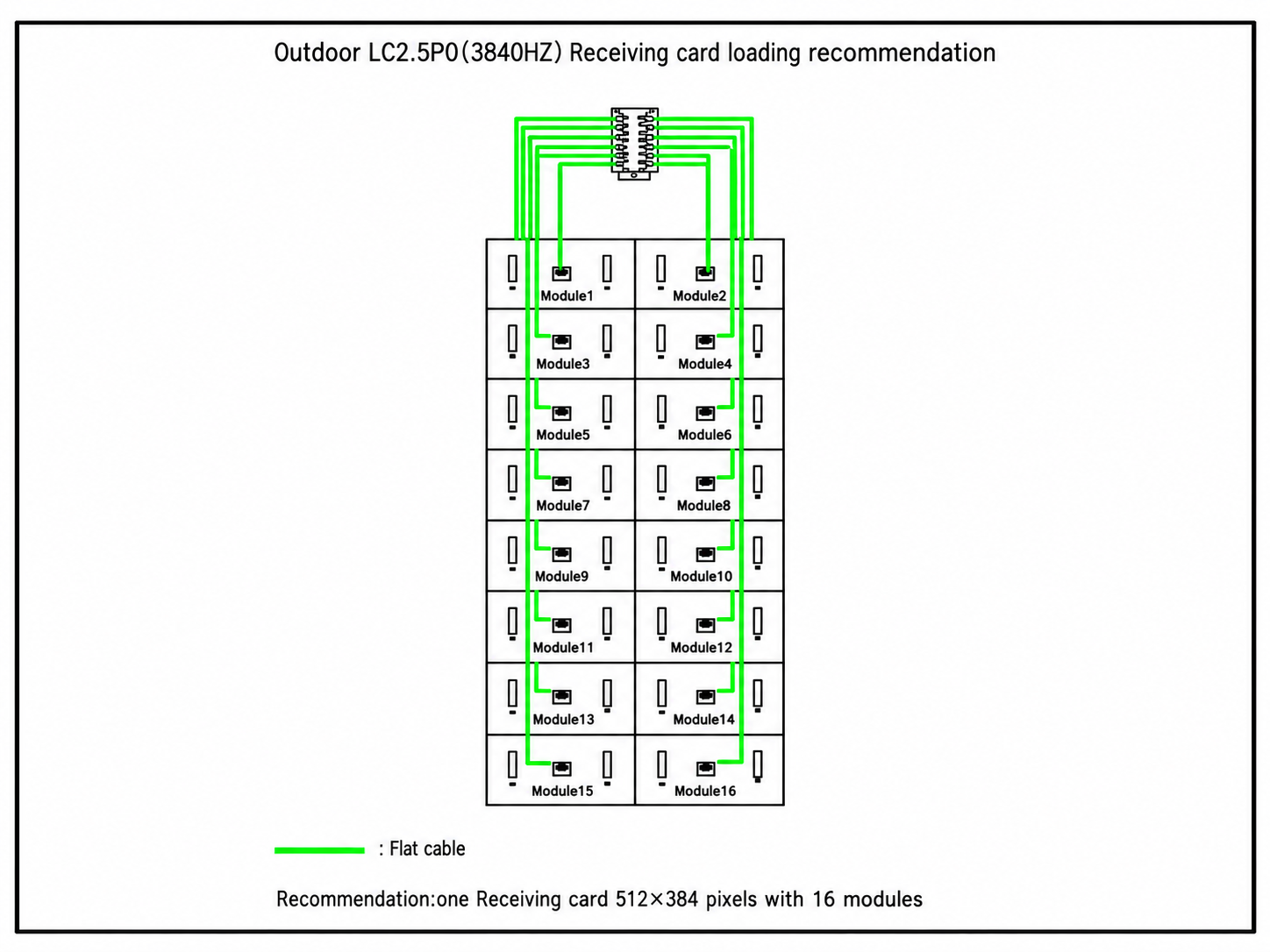

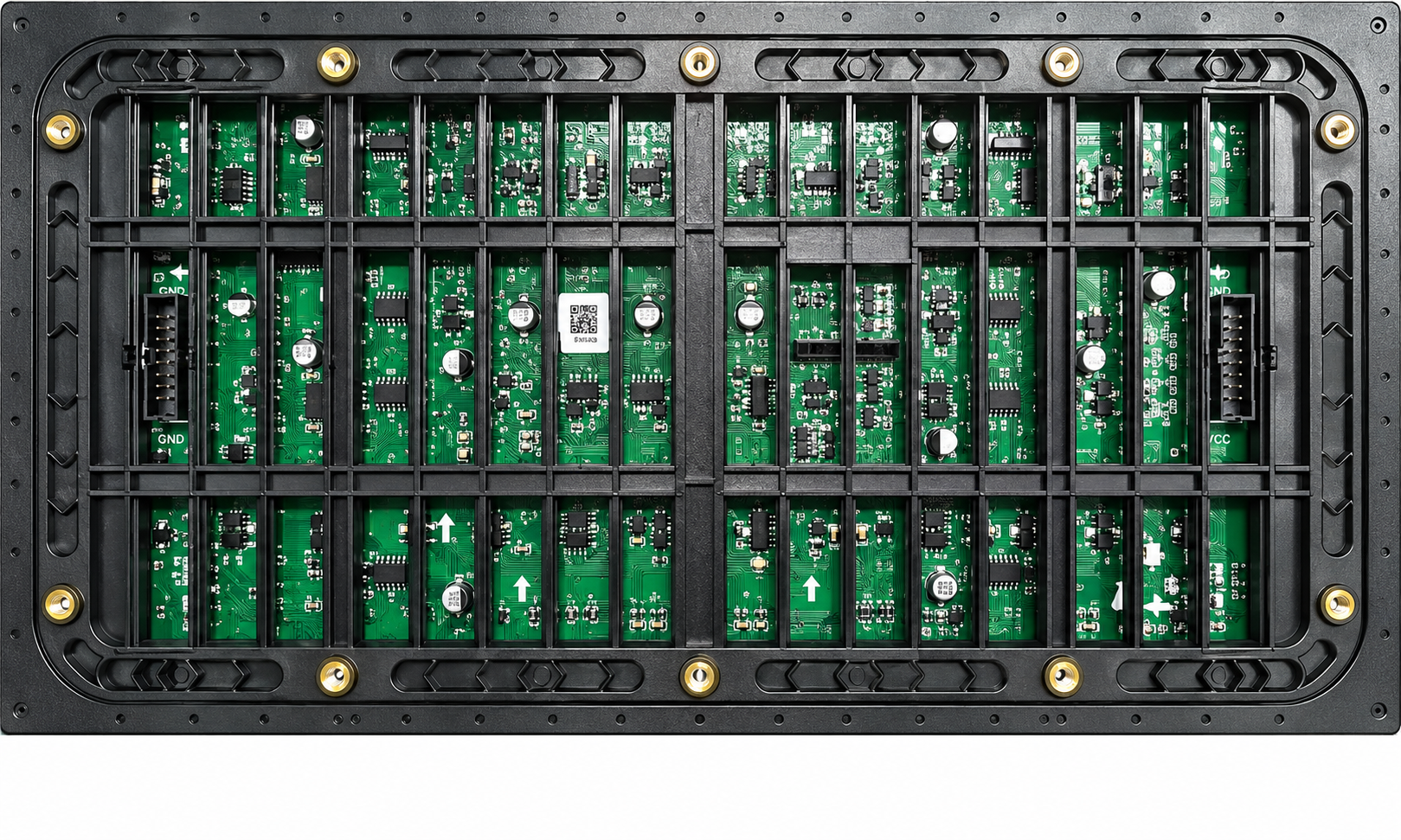

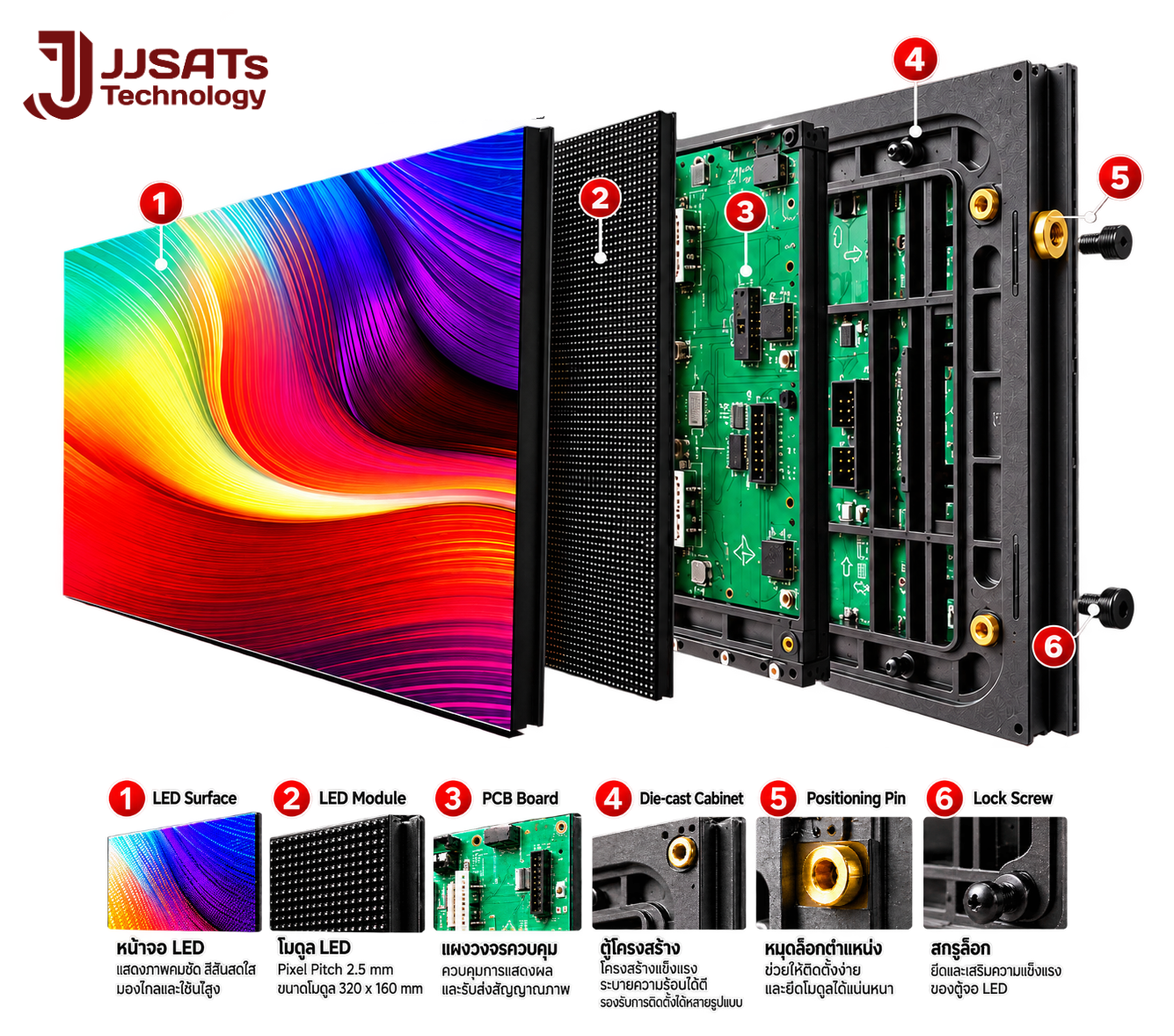

Module & Cabinet Design

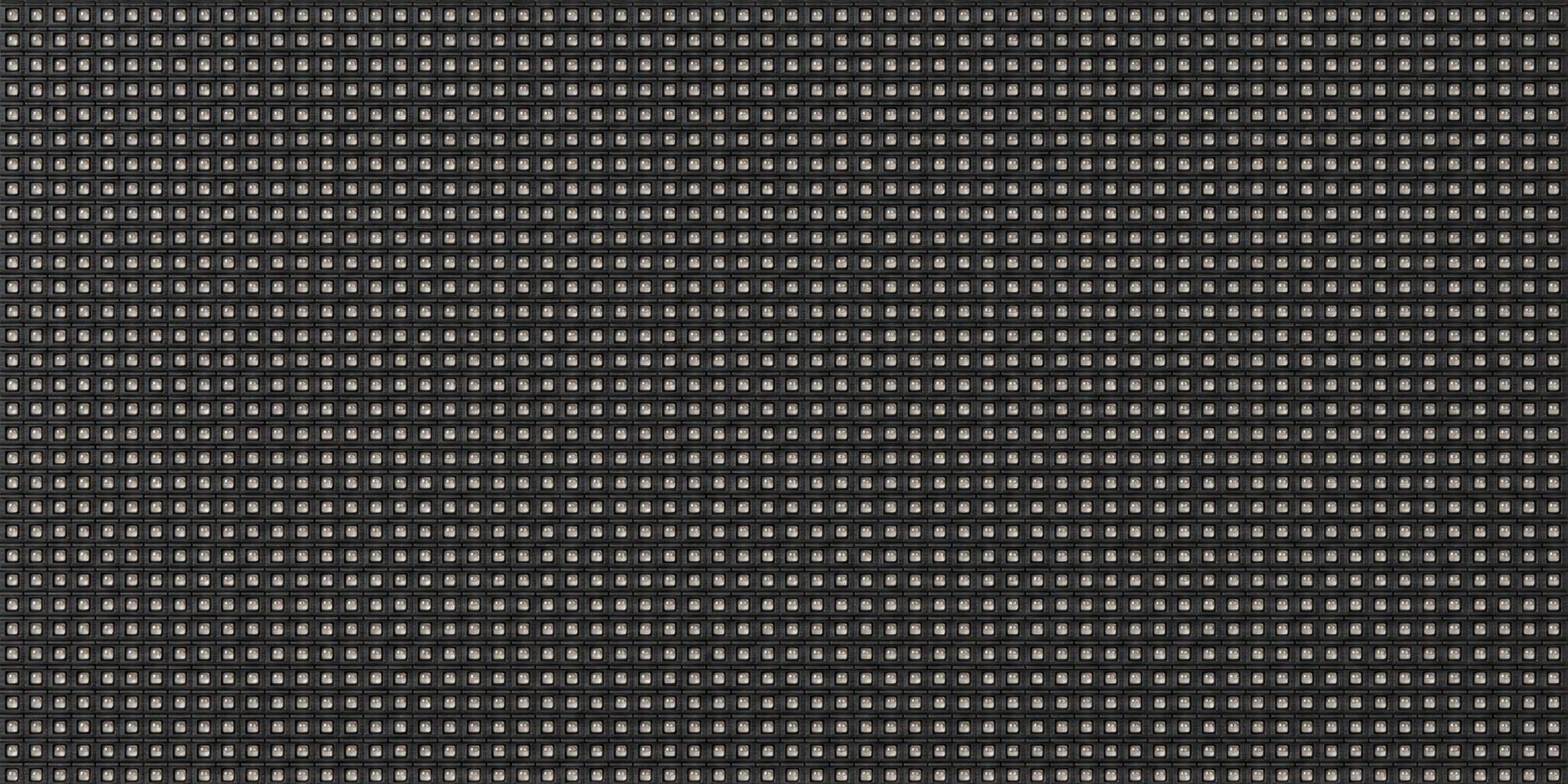

Module Highlights
Outdoor Performance
Built for Outdoor Environments
Operating Temperature: 20°C to +50°C
Operating Humidity: 1080% RH
Rated Lifespan: 100,000 Hours
Refresh Rate: 3,840 Hz

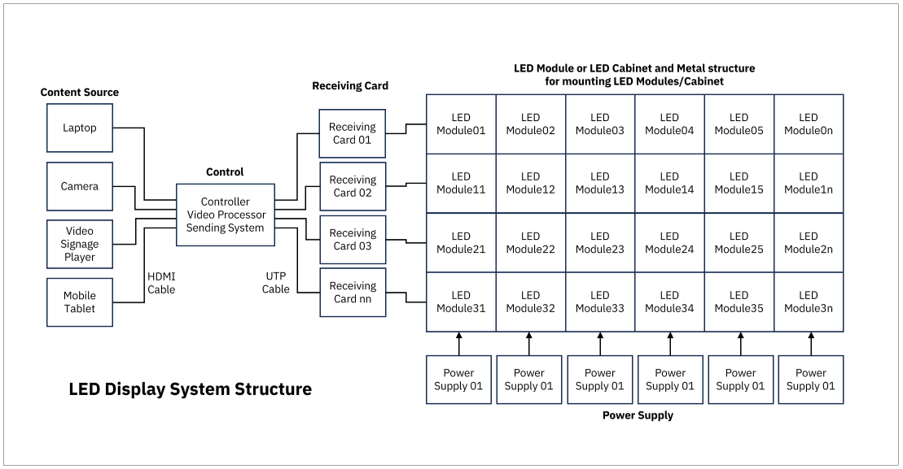

System Integration
JJSATs provides consultation and LED display system design services, covering display selection based on project budgets, image resolution and pixel pitch requirements, screen dimensions, video control systems, and installation structures.
Our services extend to system installation and commissioning for projects, with a focus on delivering suitable LED display solutions at reasonable prices.
Why JJSATs?
More Than an LED Display
FAQ: Lampro LC2.5PO
What is the Lampro LC2.5PO?
The Lampro LC2.5PO is an outdoor full-color LED display featuring a 2.5 mm pixel pitch. It is designed for outdoor applications such as LED billboards, commercial centers, and digital signage.
What is the pixel pitch of the LC2.5PO?
The LC2.5PO features a 2.5 mm pixel pitch with a pixel density of 160,000 dots/m².
How bright is the LC2.5PO?
According to the manufacturer's specifications, the LC2.5PO offers a brightness of 4,0004,500 cd/m².
What applications is the LC2.5PO suitable for?
The LC2.5PO is suitable for outdoor LED displays, LED billboards, commercial centers, digital signage, and other applications requiring high-resolution display solutions. The LC-PO Series also lists billboards and theme parks among its recommended applications.
Does the LC2.5PO support 4K video?
Yes. The LC2.5PO supports 2K HD and 4K UHD video input sources.
