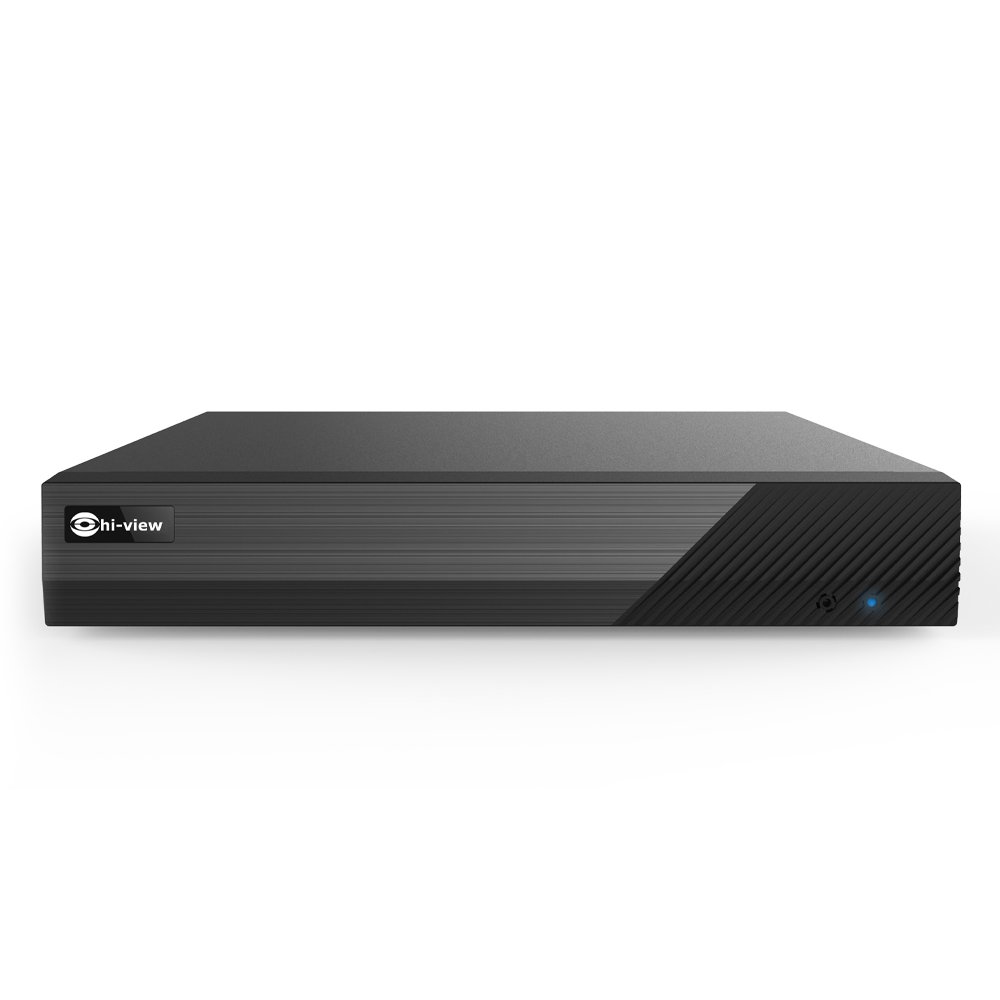

The Hiview HP-9716 is a 16-channel Network Video Recorder (NVR) built for IP surveillance systems that need reliable multi-camera management and high-resolution recording. It supports IP cameras up to 8MP (4K), uses H.265+ video compression to save storage, and includes 1 SATA bay supporting up to 10TB HDD for extended recording retention. With HDMI/VGA display, P2P remote viewing via mobile app, and ONVIF compatibility, it’s a flexible choice for homes, retail shops, offices, and light industrial sites.
Key Features- Supports up to 16 IP camera channels
- Up to 8MP / 4K recording & playback
- H.265+ compression reduces storage usage
- 1 SATA HDD slot (up to 10TB)
- HDMI & VGA outputs for live display
- P2P remote viewing via mobile / cloud app
- ONVIF compatible with many IP camera brands
- Easy setup; suitable for small–medium surveillance projects
| Hi-View HP-9716 (Summary) |
| Model | HP-9716 |
| OS | Embedded Linux |
| Video | - Network Input: 16 CH IPC input
- Network Input Resolution: 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
- Output: HDMIx1: 1920x1080 / 1280x1024 / 1024x768, VGA: 1920x1080 / 1280x1024 / 1024x768 (HDMI and VGA output the same video source)
- Compression: H.265S/H.265+/H.265/H.264
- Multi-screen Display: 1/4/6/8/9/13/16
|
| Audio | - Network Input: 16 CH IPC audio input
- Local Output: No (HDMI supports the audio output)
- Compression: G.711(U/A)
|
| Record | - Resolution: 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/CIF
- Frame Rate: 30fps/25fps (NTSC/PAL)
|
| Simultaneous Playback | Max. 9 CH |
| Search | Time slice/time/event/tag/ smart search |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events |
| Function | Play, pause. FF. FB. digital zoom, etc. |
| Decoding Capability (Live View / Playback) | 1CH 6MP: 4CH 720P |
| Alarm | - Type: Manual, sensor, motion, exception, smart events, etc.
- Input/Output: Support IPC alarm input
- Triggering: Record, snapshot, buzzer, preset, e-mail, etc.
|
| Network | - Interface: RJ 45 100Mbpsx1
- Protocol: TCP/IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPS, RTSP, ONVIF, etc.
- Incoming Bandwidth: 64 Mbps
- Outgoing Bandwidth: 64 Mbps
|
| Client Connection | Max. 10 users access |
| LPR | Supported |
| Plate Recognition | Supported |
| Mobile Device OS | iOS, Android |
| Storage (HDD Interface) | SATA 3.0x1, max 10TB |
| Backup | - Local Backup: U disk, USB mobile HDD
- Network Backup: Yes
- Port USB: USB 2.0x2
|
| Others | - Power Supply: DC 12V/1.5A
- Consumption: 5W (without HDD)
- Dimensions (mm): 255x222x42 (WxDxH)
|
| Working Environment | -10~50°C, 10%~90% humidity |
