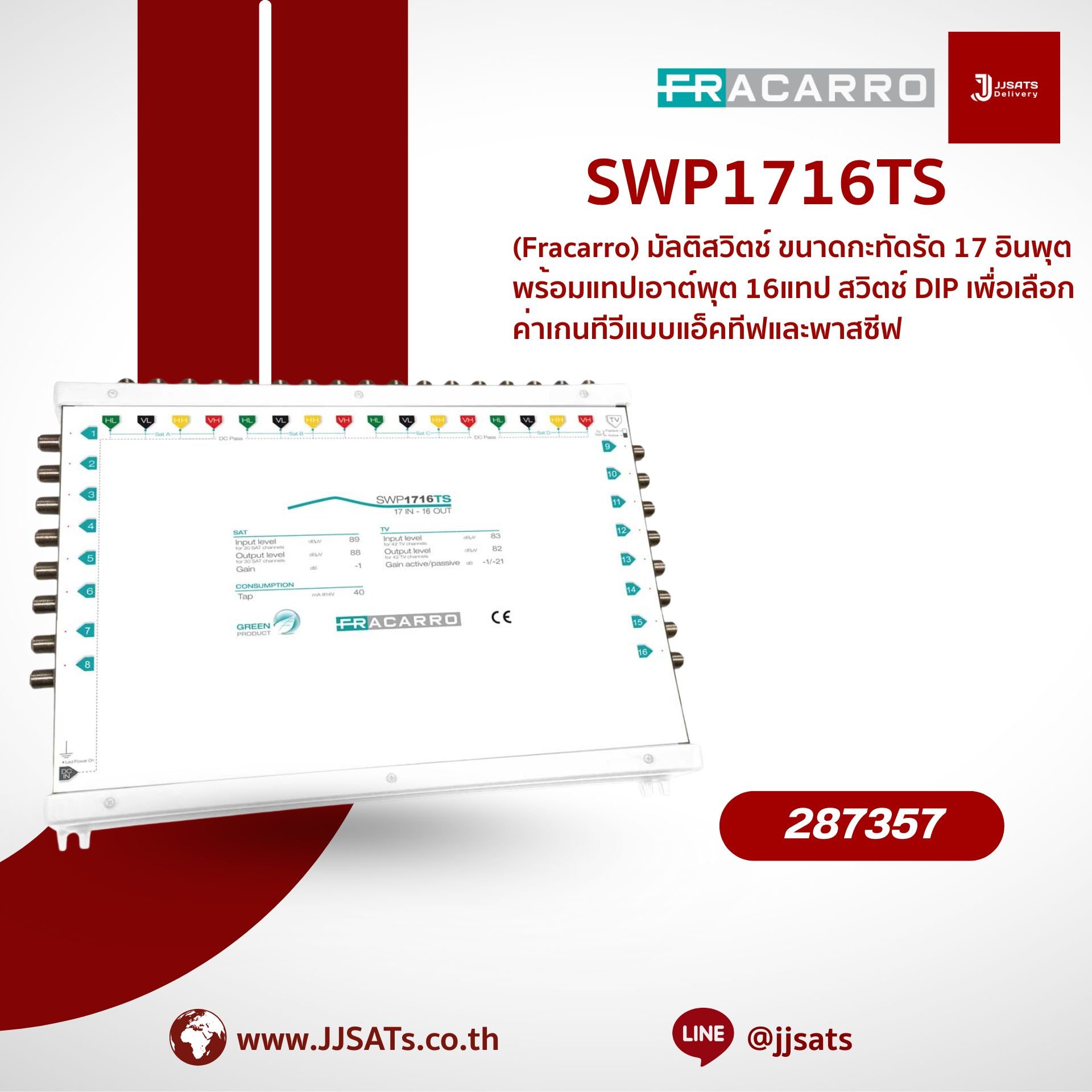

287357 – Fracarro SWP1716TS 17-Input (16 SAT + 1 TV) 16-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287357 – Fracarro SWP1716TS 17-Input (16 SAT + 1 TV) 16-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287357
Availability: InStock

Attribute:

SKU : 287357

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

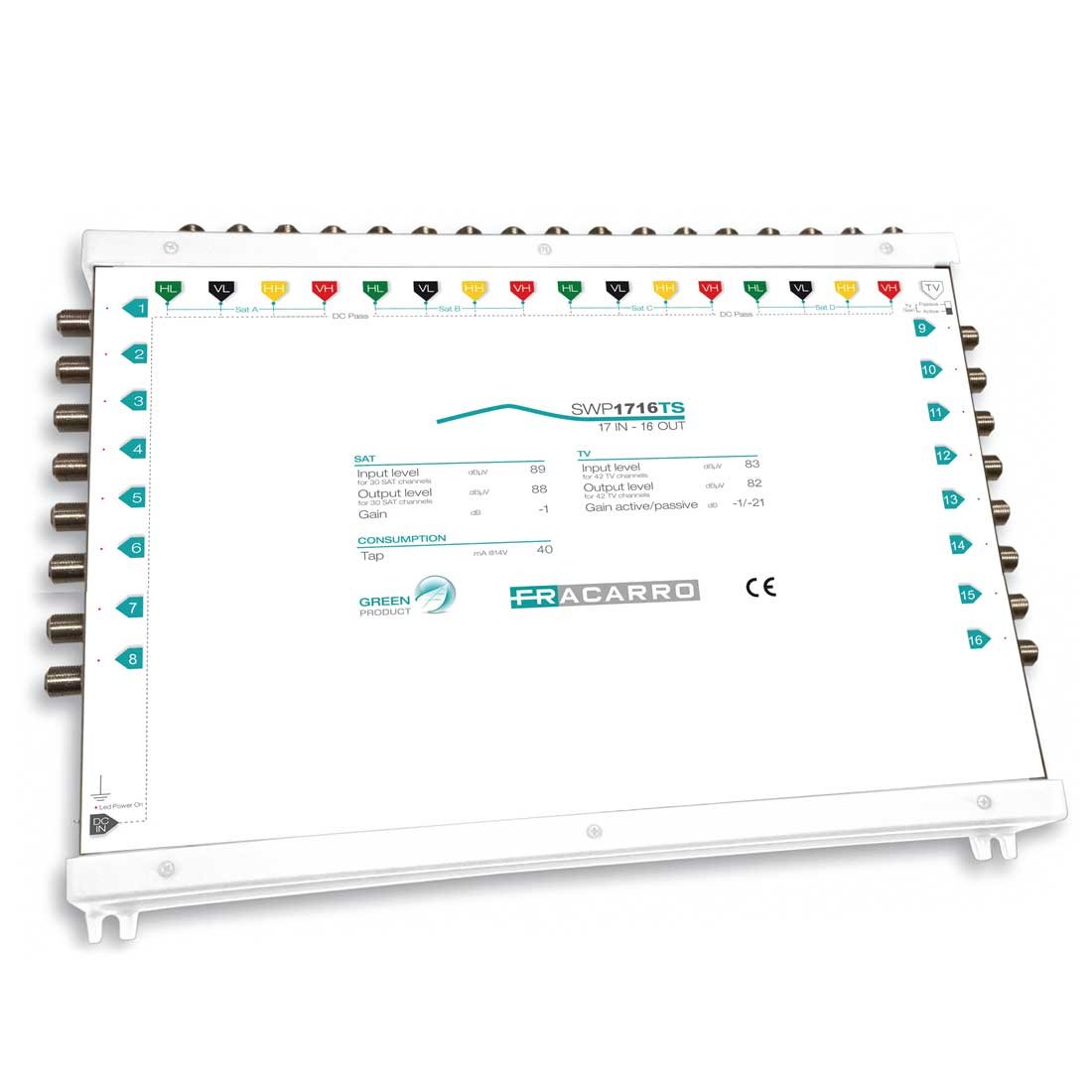

The FRACARRO SWP1716TS is a standalone multiswitch with 17 inputs and 16 outputs, designed to distribute signals from 4 satellite orbital positions (via QUATTRO LNBs) and terrestrial TV signals (DTT/FM/UHF/VHF) to up to 16 independent user outlets. It operates without the need for cascading and is ideal for buildings requiring flexible access to multiple satellite signals and terrestrial broadcasts through a single infrastructure.

Key Features:

17 inputs: 16 SAT inputs from 4 QUATTRO LNBs (4 inputs per satellite) + 1 terrestrial TV input
16 independent outputs – supports up to 16 SAT/TV receivers
Compatible with QUATTRO LNBs only
Built-in amplification for both SAT and terrestrial signals
High isolation between outputs – minimizes interference
Standard F-Type female connectors
Fully standalone operation – no cascading required
Powered via internal 220V AC supply or through connected SAT receivers
Durable construction, designed for safe and efficient indoor installation

SWP1716TS
Product Code	287357
Inputs/Outputs
Inputs	16 SAT, 1 TV
Outputs (Taps)	16
SAT Section
Bandwidth	950-2300	MHz
Gain	-5/-1	dB
Max Output level TV	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active)	-2	dB
Gain (Passive)	-22	dB
Max Output level (Active TV)	95	dBµV
Return channel Bandwidth (Passive TV)	5-65	MHz
Power Consumption
Consumption per Tap	50	mA
Power supply voltage	120-240/50-60	Vdc/A
Absorption (Active TV)	160@13V	mA
Absorption (Passive TV)	entirely fed by the receiver
Maximum power supply current SAT (Passive TV)	4000	mA
Maximum power supply current SAT (Active TV)	3840	mA
Specifications
Dimensions power supply	110 x 52 x 34	mm
Operating temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Pieces	1
EAN code	8016978097050
Packaging dimensions	330 x 245 x 55	mm
Product dimensions	190 x 310 x 40	mm
Packaging weight	1.3	kg

287357 Fracarro SWP1716TS 17-Input (16 SAT + 1 TV) 16-Output Multiswitch Gain Adjustable via DIP Switch มัลติสวิตช์ 17 อินพุต (16 SAT + 1 TV) 16 เอาต์พุต ปรับเกนผ่าน DIP switch JJSATs Multiswitch Compact

Related Product

New

287355 – Fracarro SWP1708TS 17-Input (16 SAT + 1 TV) 8-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

New

287356 – Fracarro SWP1712TS 17-Input (16 SAT + 1 TV) 12-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

New

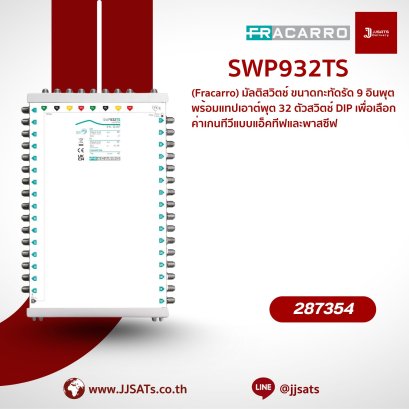

287354 – Fracarro SWP932TS 9-Input (8 SAT + 1 TV) 32-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use
