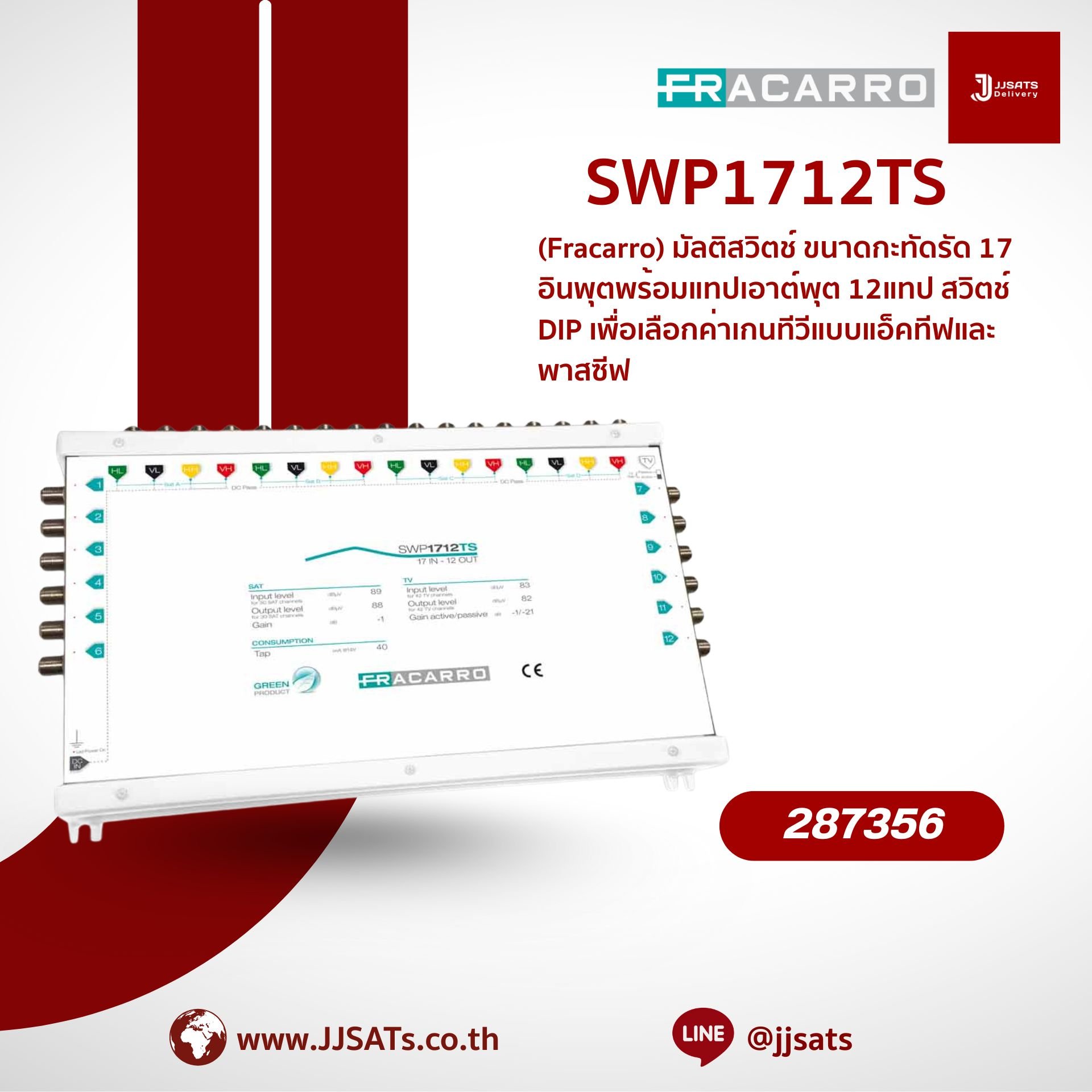

287356 – Fracarro SWP1712TS 17-Input (16 SAT + 1 TV) 12-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287356 – Fracarro SWP1712TS 17-Input (16 SAT + 1 TV) 12-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287356
Availability: InStock

Attribute:

SKU : 287356

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

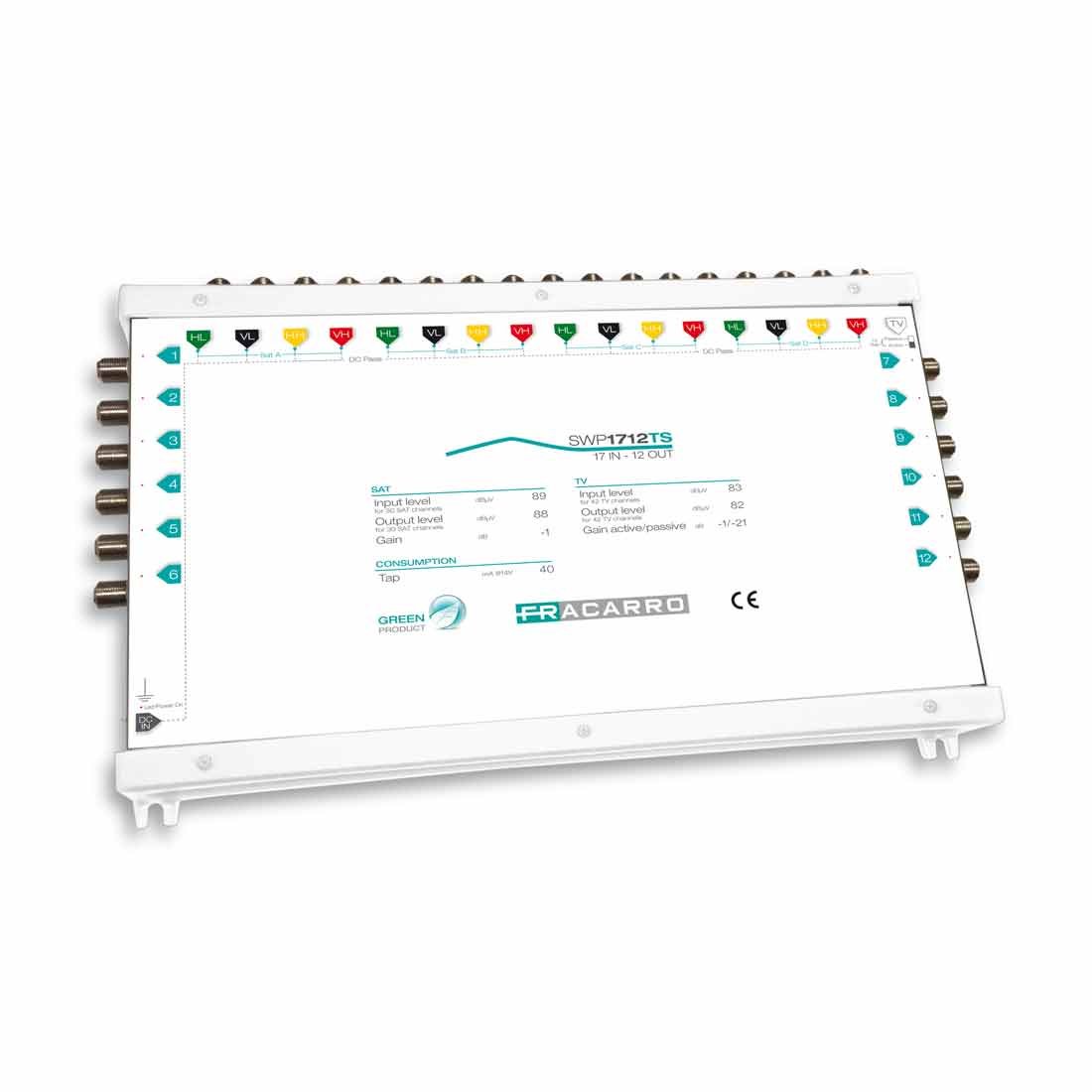

The FRACARRO SWP1712TS is a standalone multiswitch featuring 17 inputs and 12 outputs, designed to distribute signals from 4 satellite orbital positions (via QUATTRO LNBs) and terrestrial TV signals (DTT/FM/UHF/VHF) to up to 12 independent user outlets. This model is ideal for medium-sized SMATV/MATV systems that require combining multiple satellite and terrestrial signals through a single coaxial network.

Key Features:

17 inputs: 16 SAT inputs from 4 QUATTRO LNBs (4 per satellite position) + 1 terrestrial TV input
12 independent outputs – supports up to 12 SAT/TV receivers
Compatible with QUATTRO LNBs only
Built-in amplification for both SAT and terrestrial signals
High output isolation – reduces signal interference
Equipped with standard F-Type female connectors
Fully standalone operation – no cascading required
Powered by internal 220V AC or via connected SAT receivers
Durable construction and efficient heat dissipation, ideal for indoor installation

SWP1712TS
Product Code	287356
Inputs/Outputs
Inputs	16 SAT, 1 TV
Outputs (Taps)	12
SAT Section
Bandwidth	950-2300	MHz
Gain	-5/-1	dB
Max Output level TV	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active)	-1	dB
Gain (Passive)	-21	dB
Max Output level (Active TV)	95	dBµV
Return channel Bandwidth (Passive TV)	5-65	MHz
Power Consumption
Consumption per Tap	50	mA
Power supply voltage	120-240/50-60	Vdc/A
Absorption (Active TV)	160@13V	mA
Absorption (Passive TV)	entirely fed by the receiver
Maximum power supply current SAT (Passive TV)	4000	mA
Maximum power supply current SAT (Active TV)	3840	mA
Specifications
Dimensions power supply	110 x 52 x 34	mm
Operating temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Pieces	1
EAN code	8016978097043
Packaging dimensions	330 x 245 x 55	mm
Product dimensions	190 x 310 x 40	mm
Packaging weight	1.3	kg

287356 Fracarro SWP1712TS 17-Input (16 SAT + 1 TV) 12-Output Multiswitch Gain Adjustable via DIP Switch มัลติสวิตช์ 17 อินพุต (16 SAT + 1 TV) 12 เอาต์พุต ปรับเกนผ่าน DIP switch Multiswitch Compact JJSATs
