287352 – Fracarro SWP916TS 9-Input (8 SAT + 1 TV) 16-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287352 – Fracarro SWP916TS 9-Input (8 SAT + 1 TV) 16-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287352
Availability: InStock

Attribute:

SKU : 287352

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

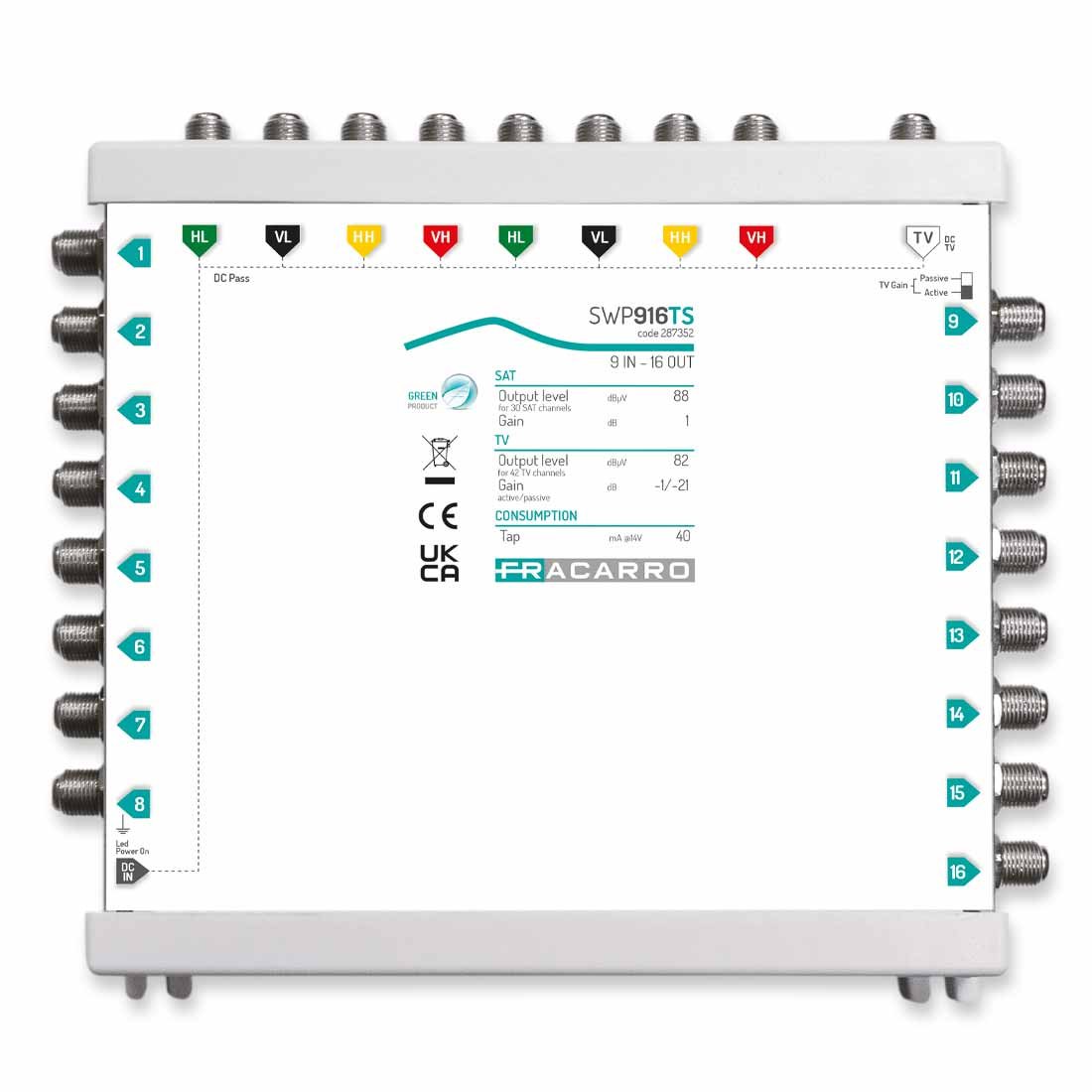

The FRACARRO SWP916TS is a standalone multiswitch with 9 inputs and 16 outputs, designed to distribute signals from two satellite orbital positions (Dual Satellite Positions) and terrestrial antenna (DTT/FM/VHF/UHF) to up to 16 independent user outlets. It is ideal for medium-to-large SMATV or MATV systems such as condominiums, hotels, and commercial buildings requiring flexible dual satellite reception.

Key Features:

9 inputs: 8 satellite inputs from two QUATTRO LNBs (4 from each satellite) + 1 terrestrial TV input
16 independent outputs – supports up to 16 SAT/TV receivers
Compatible with QUATTRO LNBs
Built-in amplification for both satellite and terrestrial signals
High isolation between outputs to prevent cross-interference
Standard F-Type female connectors
Standalone operation – no cascading required
Powered via internal 220V AC supply or via connected SAT receivers
Durable design with excellent heat dissipation – for indoor installation

SWP916TS
Product Code	287352
Inputs/Outputs
Inputs	8 SAT, 1 TV
Outputs (Taps)	16
SAT Section
Bandwidth	950-2300	MHz
Gain	-3/1	dB
Max Output level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active)	-1	dB
Gain (Passive)	-21	dB
Max Output level (Active TV)	95	dBµV
Return channel Bandwidth (Passive TV)	5-65	MHz
Power Consumption
Consumption per Tap	50	mA
Power supply voltage	12V, 1.5A (External PSU1215TS included)	Vdc/A
Absorption (Active TV)	160@12V	mA
Absorption (Passive TV)	entirely fed by the receiver	mA
Maximum power supply current SAT (Passive TV)	1500	mA
Maximum power supply current SAT (Active TV)	1340	mA
Specifications
Dimensions power supply	90 x 70 x 45	mm
Operating temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Pieces	1
EAN code	8016978096992
Packaging dimensions	330 x 245 x 55	mm
Product dimensions	170 x 190 x 40	mm
Packaging weight	1.1	kg

287352 Fracarro SWP916TS 9-Input (8 SAT + 1 TV) 16-Output Multiswitch Gain Adjustable via DIP Switch มัลติสวิตช์ 9 อินพุต (8 SAT + 1 TV) 16 เอาต์พุต ปรับเกนผ่าน DIP switch JJSATs Multiswitch Compact
