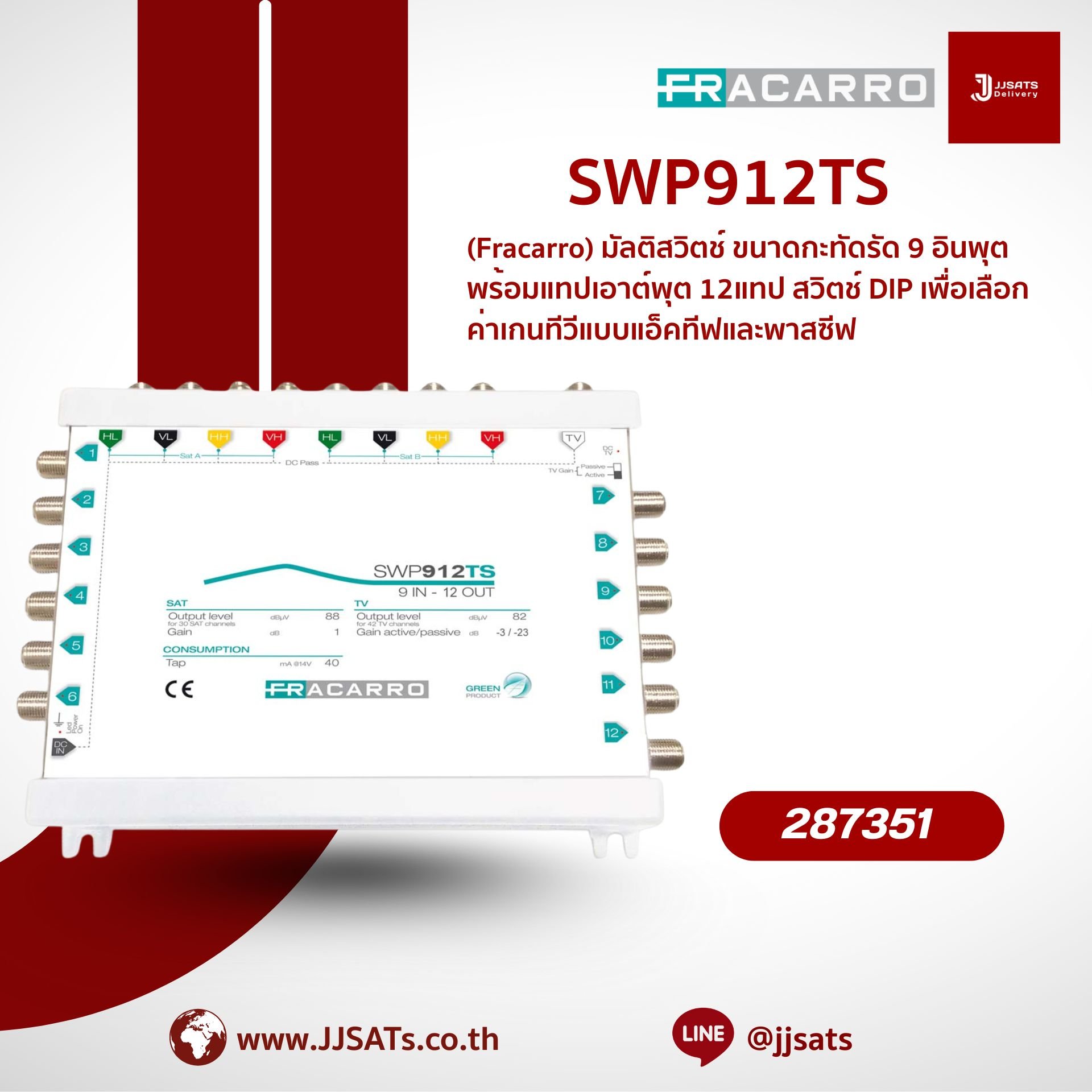

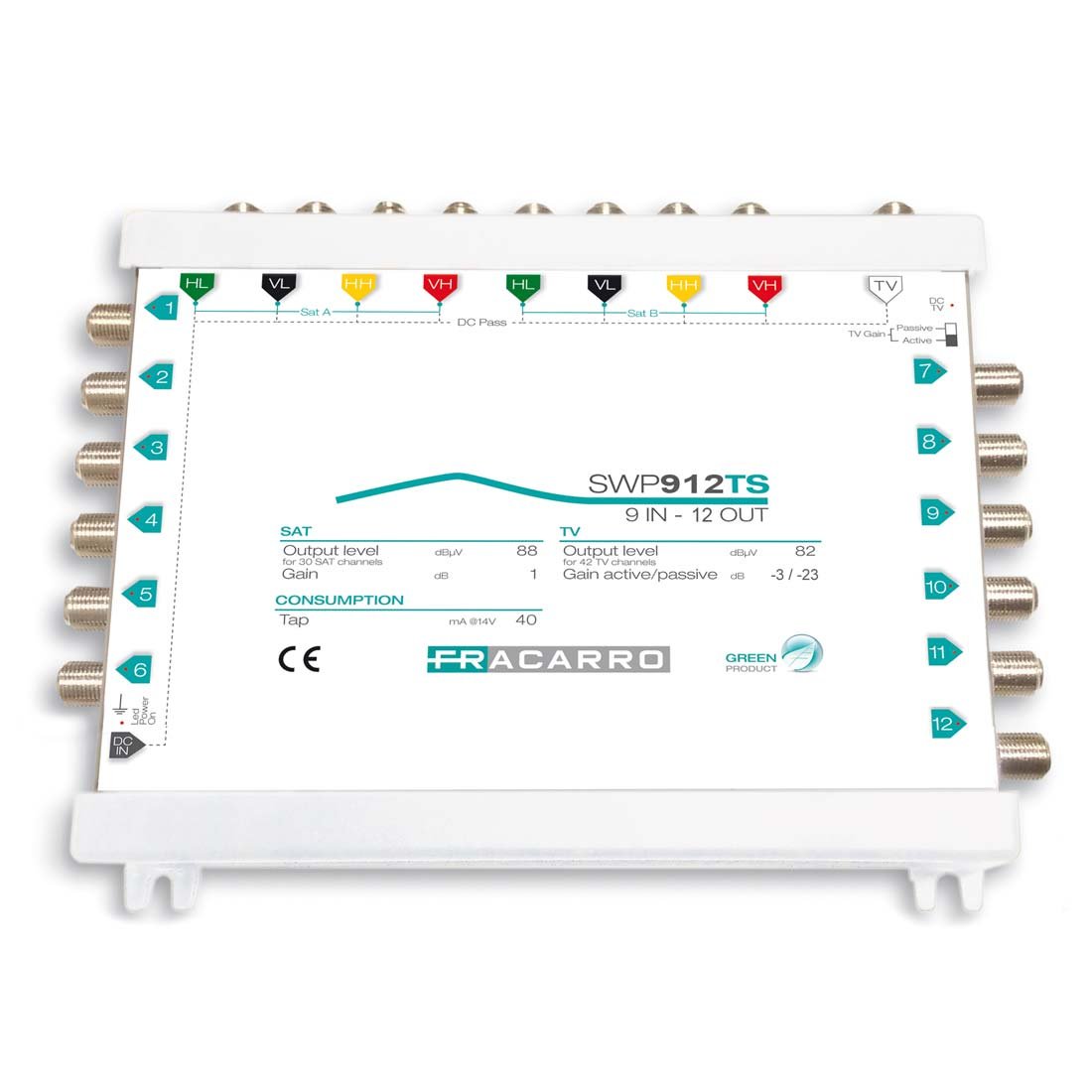

The FRACARRO SWP912TS is a standalone multiswitch featuring 9 inputs and 12 outputs, designed to distribute signals from two satellite orbital positions and terrestrial TV to up to 12 independent user outlets. It is ideal for medium-sized SMATV/MATV systems that require integrated distribution of signals from 2 QUATTRO LNBs and terrestrial antenna over a single coaxial line.
Key Features:- 9 inputs:8 satellite inputs (4x from satellite position 1 + 4x from position 2) + 1 terrestrial TV input
- 12 independent outputs – supports up to 12 SAT/TV receivers
- Compatible with QUATTRO LNBs
- Built-in amplification for both satellite and terrestrial signals
- High isolation between outputs for reliable signal quality
- Standalone operation – no cascading required
- Uses standard F-Type female connectors
- Can be powered via internal 220V power supply or through SAT receivers
- Durable design with good heat dissipation, suitable for indoor installation
| SWP912TS |
| Product Code | 287351 | |
| Inputs/Outputs |
| Inputs | 8 SAT, 1 TV | |
| Outputs (Taps) | 12 | |
| SAT Section |
| Bandwidth | 950-2300 | MHz |
| Gain | -3/1 | dB |
| Max Output Level | 100 | dBµV |
| TV Section |
| TV Bandwidth | Active TV: 47-862; Passive TV: 5-862 | MHz |
| Gain (Active) | 0 | dB |
| Gain (Passive) | -20 | dB |
| Max Output Level (Active TV) | 95 | dBµV |
| Return Channel Bandwidth (Passive TV) | 5-65 | MHz |
| Power Consumption |
| Power Supply Voltage | 120-240 / 50-60 | Vdc/A |
| Current Consumption per Tap | 50 | mA |
| Specifications |
| Operating Temperature | -10 to +55 | °C |
| Dimensions and Packaging |
| Pieces | 1 | |
| EAN Code | 8016978050963 | |
| Packaging Dimensions | 405 x 170 x 75 | mm |
| Product Dimensions | 320 x 125 x 60 | mm |
| Packaging Weight | 0.81 | kg |
