287350 – Fracarro SWP908TS 9-Input (8 SAT + 1 TV) 8-Output Multiswitch, Gain Adjustable via DIP Switch, Satellite Band 950–2300 MHz, Ideal for Indoor Use

Name: 287350 – Fracarro SWP908TS 9-Input (8 SAT + 1 TV) 8-Output Multiswitch, Gain Adjustable via DIP Switch, Satellite Band 950–2300 MHz, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287350
Availability: InStock

Attribute:

SKU : 287350

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

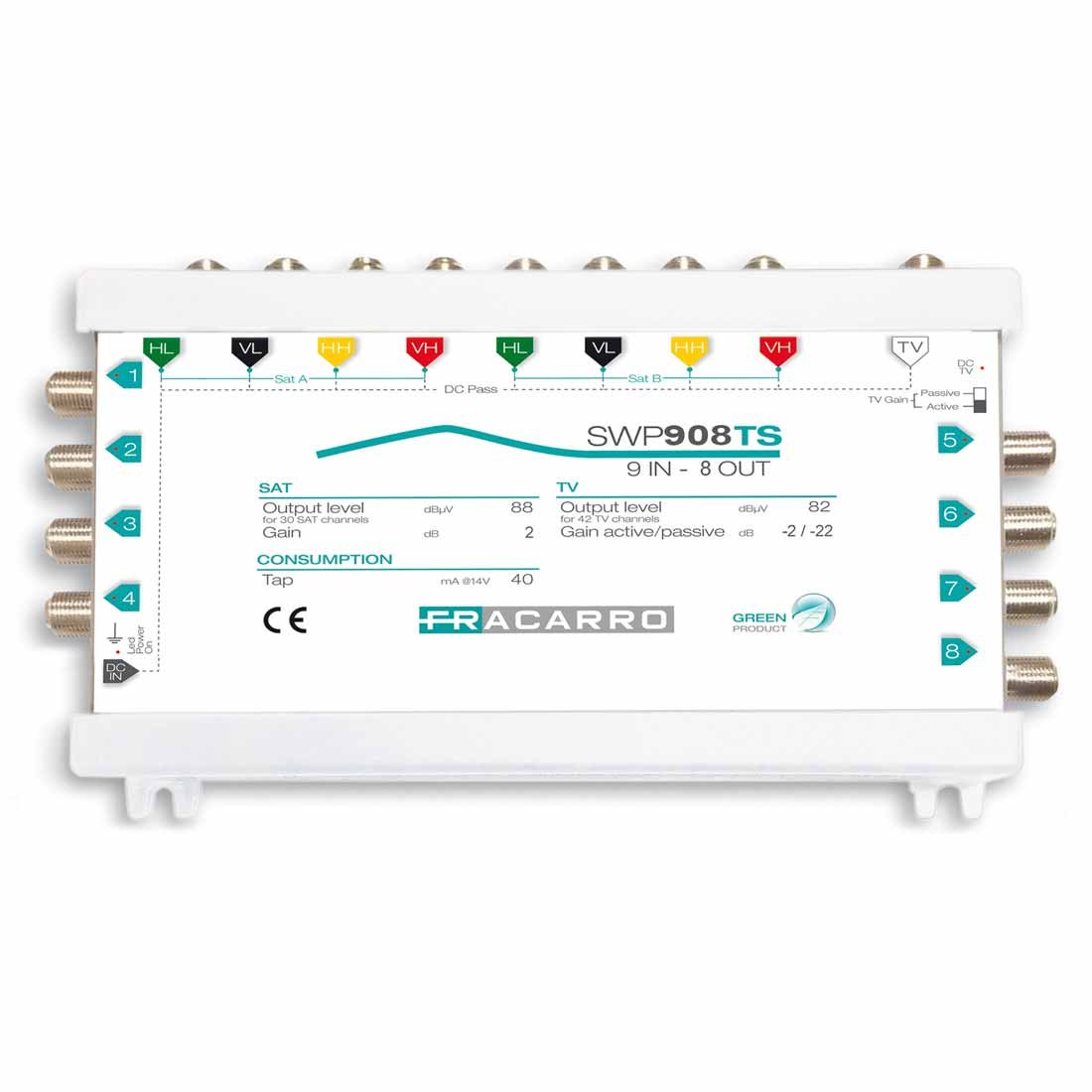

The FRACARRO SWP908TS is a standalone multiswitch with 9 inputs and 8 outputs, designed to distribute signals from two satellite orbital positions (dual satellite) and terrestrial TV (DTT/FM/VHF/UHF) to up to 8 independent user outlets. It is ideal for small to medium-sized SMATV/MATV systems requiring the flexibility to receive signals from two separate LNBs and a terrestrial antenna.

Key Features:

9 inputs: 4 SAT inputs from Satellite Position 1 (VL, VH, HL, HH) + 4 SAT inputs from Satellite Position 2 (VL, VH, HL, HH) + 1 terrestrial TV input (DTT/FM/VHF/UHF)
8 independent outputs – supports up to 8 receivers
Compatible with QUATTRO LNBs
Built-in amplification for both SAT and TV signals
High output isolation to prevent cross-interference
Fully standalone operation – no cascading required
Powered via internal 220V AC supply or via connected receivers
Uses F-Type female connectors
Suitable for indoor installation

SWP908TS
Product Code	287350
Input/Output
Input	8 SAT, 1 TV
Tap Output	8
SAT Section
Bandwidth	950-2300	MHz
Gain	-3/1	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	-1	dB
Gain (Passive TV)	-21	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Power Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: Fully powered by receiver	mA
Max Current for SAT Supply	Passive TV: 1500; Active TV: 1340	mA
Features
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978105342
Packaging Dimensions	255 x 242 x 55	mm
Product Dimensions	300 x 130 x 40	mm
Packaging Weight	1.561	kg
