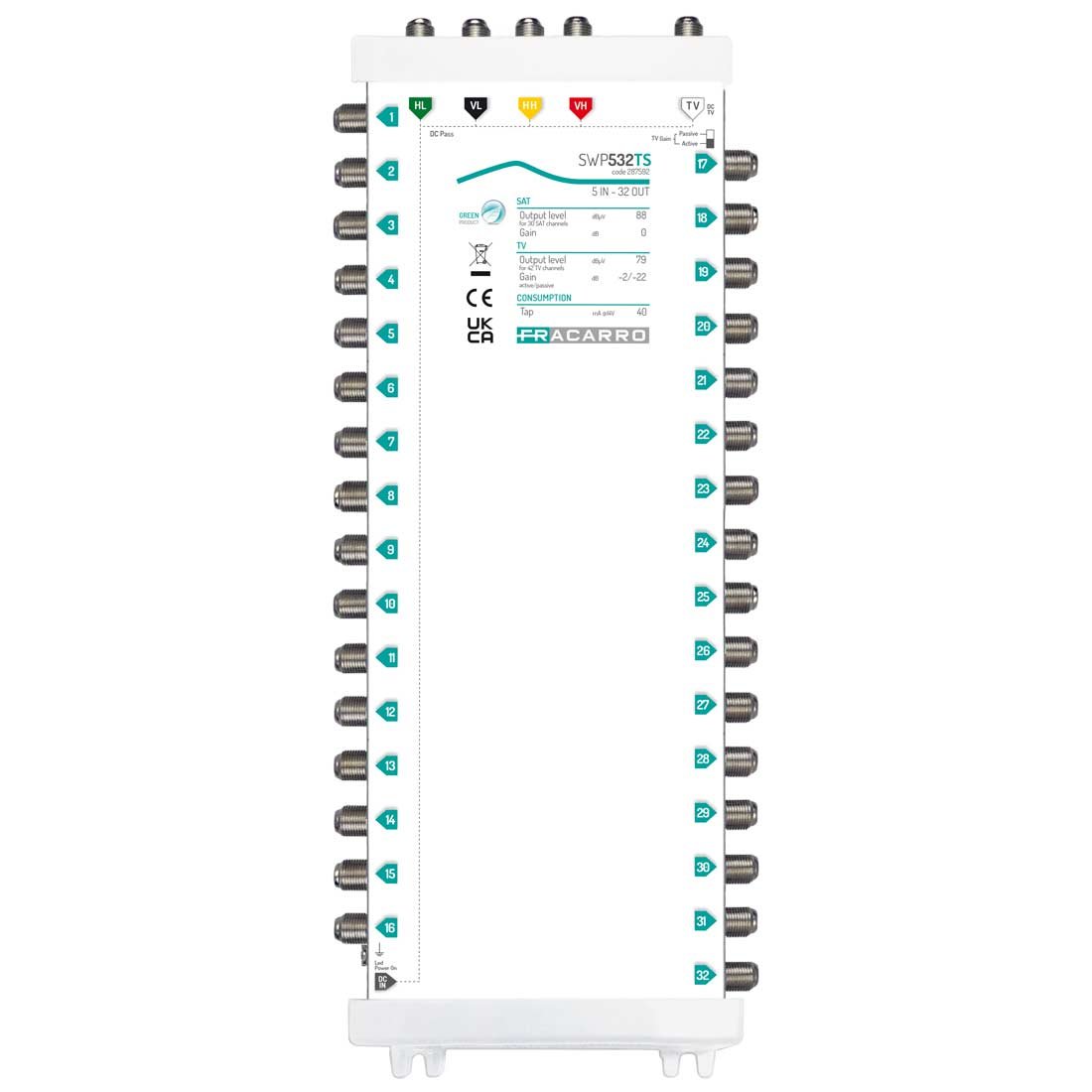

287592 – Fracarro SWP532TS 5-Input (4 SAT + 1 TV) 32-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287592 – Fracarro SWP532TS 5-Input (4 SAT + 1 TV) 32-Output Multiswitch, Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287592
Availability: InStock

Attribute:

SKU : 287592

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

The FRACARRO SWP532TS is a standalone multiswitch with 5 inputs and 32 outputs, designed to distribute satellite (SAT) and terrestrial TV signals (DTT/FM/UHF/VHF) from a single LNB and terrestrial antenna to up to 32 independent outlets. This model is ideal for large SMATV or MATV systems in condominiums, hotels, apartment buildings, or office complexes requiring high-quality and reliable signal distribution.

Key Features:

5 inputs: 4 satellite inputs (VL, VH, HL, HH) + 1 terrestrial TV input
32 independent outputs – supports up to 32 SAT/TV receivers
Compatible with both QUAD and QUATTRO LNBs
Integrated amplification for both SAT and TV signals to compensate for cable loss
High isolation between outputs to prevent signal interference
Standard F-Type female connectors
Fully standalone operation – no cascading required
Can be powered via an external 220V power supply or via connected SAT receivers
Robust and ventilated metal housing, suitable for indoor installation

SWP532TS
Product Code	287592
Input/Output
Input	4 SAT, 1 TV
Tap Output	32
SAT Section
Bandwidth	950-2300	MHz
Gain	-4/0	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	-2	dB
Gain (Passive TV)	-22	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Power Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: Fully powered by receiver	mA
Max Current for SAT Supply	Passive TV: 1500; Active TV: 1340	mA
Features
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978105427
Packaging Dimensions	255 x 242 x 55	mm
Product Dimensions	300 x 130 x 40	mm
Packaging Weight	1.561	kg
