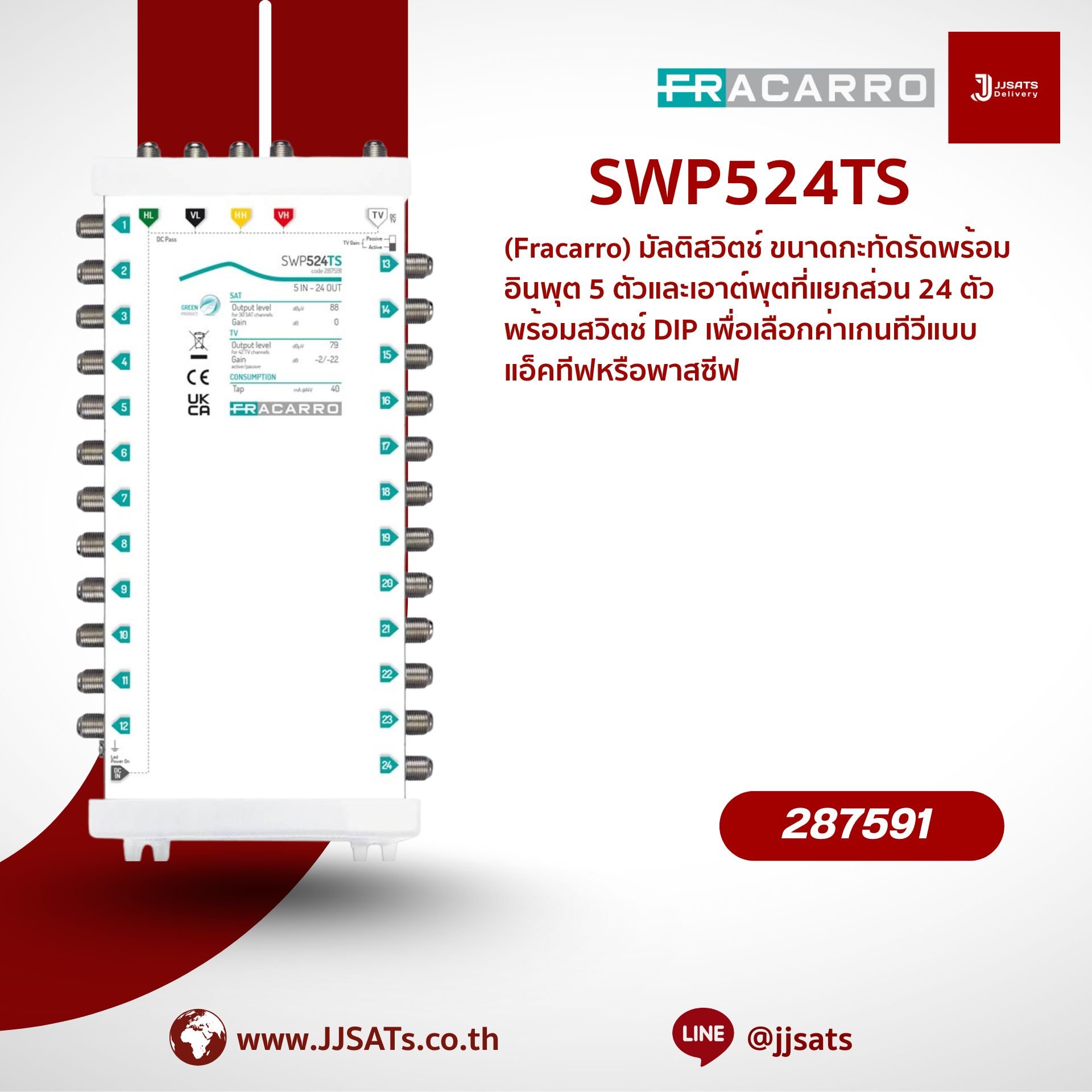

287591 – Fracarro SWP524TS 5-Input (4 SAT + 1 TV) 24-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287591 – Fracarro SWP524TS 5-Input (4 SAT + 1 TV) 24-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287591
Availability: InStock

Attribute:

SKU : 287591

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

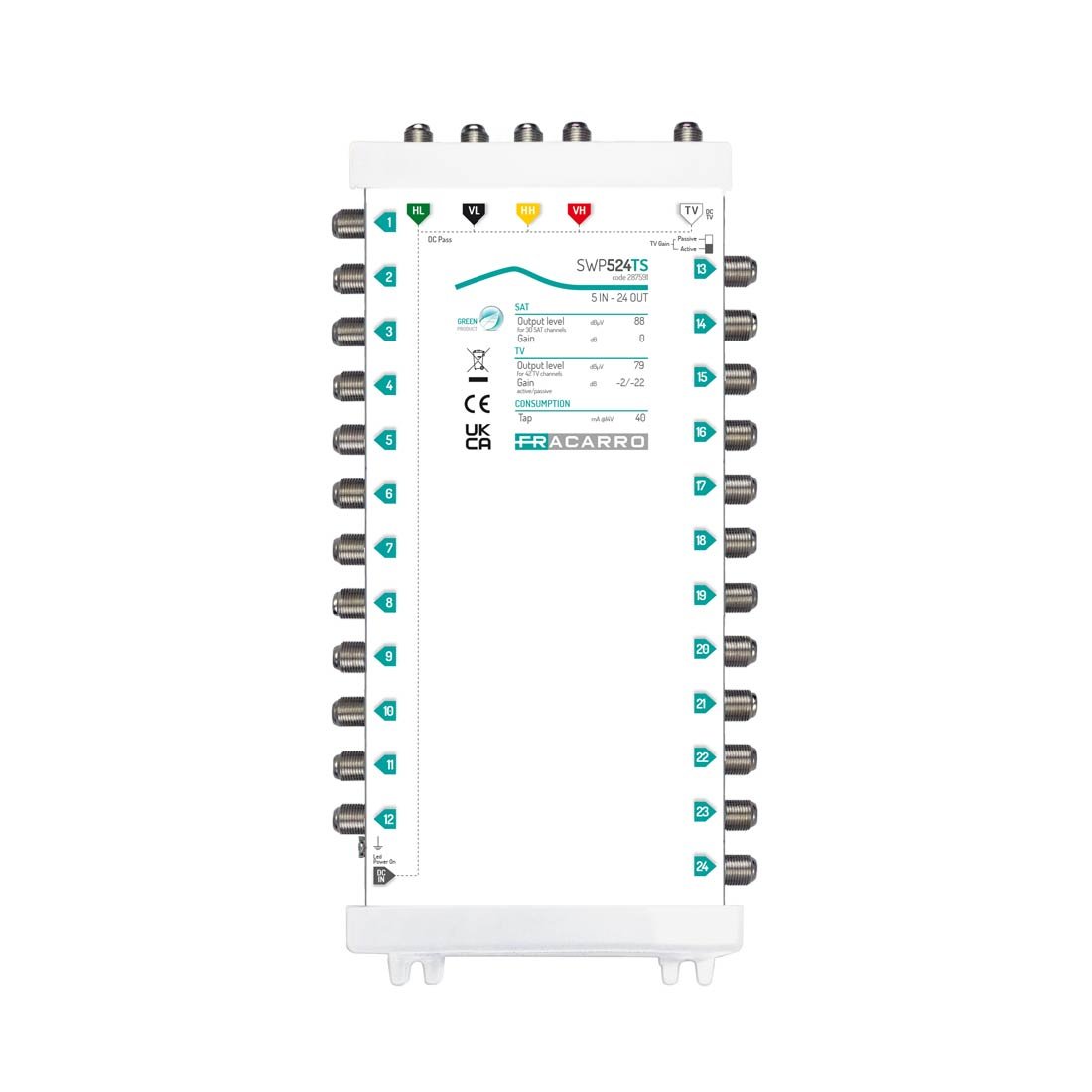

The FRACARRO SWP524TS is a standalone multiswitch with 5 inputs and 24 outputs, designed to distribute both satellite (SAT) and terrestrial TV signals (DTT/FM/UHF/VHF) to up to 24 independent outlets. It is compatible with both QUAD and QUATTRO LNBs and is ideal for medium to large-sized SMATV/MATV systems, such as apartment complexes, hotels, or commercial buildings.

Key Features:

5 inputs: 4 SAT inputs (VL, VH, HL, HH) + 1 terrestrial TV input
24 independent outputs – supports up to 24 SAT/TV receivers
Compatible with QUAD and QUATTRO LNBs
Integrated amplification for both satellite and terrestrial signals
High isolation between outputs to prevent signal interference
Uses standard F-Type female connectors
Operates as a standalone unit – no cascading required
Can be powered via an external 220V adapter or through SAT receivers
Strong and durable housing, suitable for indoor installations

SWP524TS
Product Code	287591
Inputs/Outputs
Inputs	4 SAT, 1 TV
Tap Outputs	24
SAT Section
Bandwidth	950-2300	MHz
Gain	-4/0	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	-2	dB
Gain (Passive TV)	-22	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Power Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: Fully powered by receivers	mA
Max Current Consumption SAT Supply	Passive TV: 1500; Active TV: 1340	mA
Features
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978105410
Packaging Dimensions	315 x 130 x 45	mm
Product Dimensions	230 x 130 x 40	mm
Packaging Weight	0.757	kg

287591 Fracarro SWP524TS 5-Input (4 SAT + 1 TV) 24-Output Multiswitch TV Gain Adjustable via DIP Switch มัลติสวิตช์ 5 อินพุต (4 SAT + 1 TV) 24 เอาต์พุต ปรับเกนทีวีได้ผ่าน DIP switch JJSATs Multiswitchs Compact
