287520 – Fracarro SWP516TS 5-Input (4 SAT + 1 TV) 16-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287520 – Fracarro SWP516TS 5-Input (4 SAT + 1 TV) 16-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287520
Availability: InStock

Attribute:

SKU : 287520

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

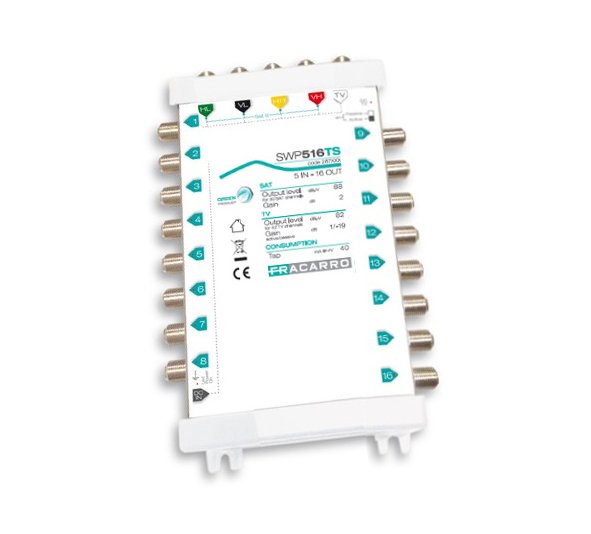

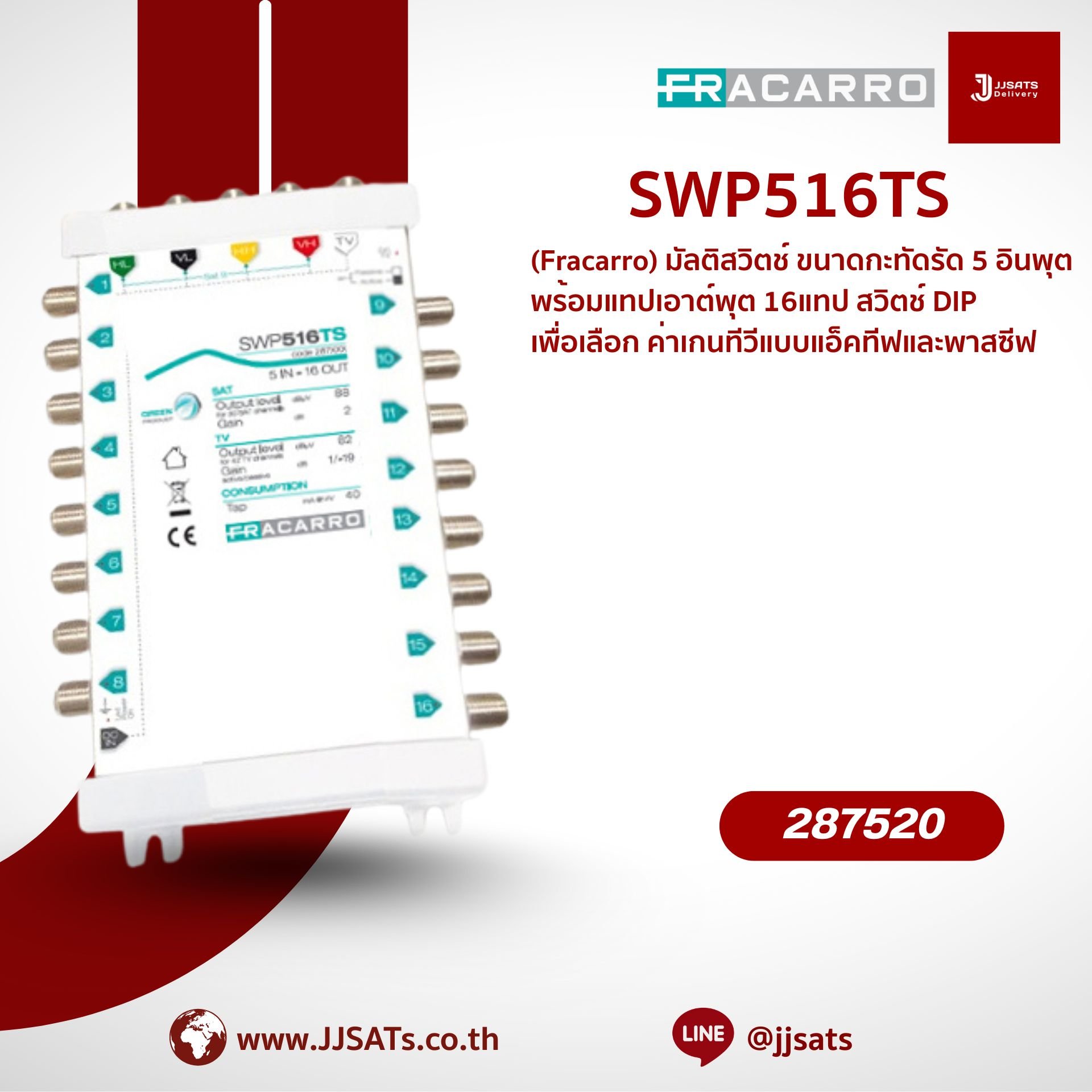

The FRACARRO SWP516TS is a standalone multiswitch with 5 inputs and 16 outputs, designed for distributing satellite (SAT) and terrestrial TV signals (DTT/FM/UHF/VHF) from a single LNB and terrestrial antenna to up to 16 independent TV outlets. Ideal for large homes, apartments, office buildings, or mid-sized SMATV/MATV systems requiring reliable signal distribution without cascading additional multiswitches.

Key Features:

5 inputs: 4 satellite inputs (VL, VH, HL, HH) + 1 terrestrial TV input
16 independent user outputs – connects up to 16 receivers
Compatible with both QUAD and QUATTRO LNBs
Integrated amplification for SAT and terrestrial signals
High isolation between outputs to prevent signal interference
Standard F-Type female connectors
Standalone operation – no cascade setup required
Can be powered via external 220V supply or through connected satellite receivers
Durable metal housing with good heat dissipation – suitable for indoor installation

SWP516TS
Product Code	287520
Inputs/Outputs
Inputs	4 SAT, 1 TV
Tap Outputs	16
SAT Section
Bandwidth	950-2300	MHz
Gain	-3/1	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	-1	dB
Gain (Passive TV)	-21	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Power Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: Fully powered by receivers	mA
Max Current for SAT Supply	Passive TV: 1500; Active TV: 1340	mA
Features
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978102358
Packaging Dimensions	250 x 155 x 45	mm
Product Dimensions	170 x 130 x 40	mm
Packaging Weight	0.655	kg

287520 Fracarro SWP516TS 5-Input (4 SAT + 1 TV) 16-Output Multiswitch TV Gain Adjustable via DIP Switch มัลติสวิตช์ 5 อินพุต (4 SAT + 1 TV) 16 เอาต์พุต ปรับเกนทีวีได้ผ่าน DIP switch JJSATs Multiswitch Compact
