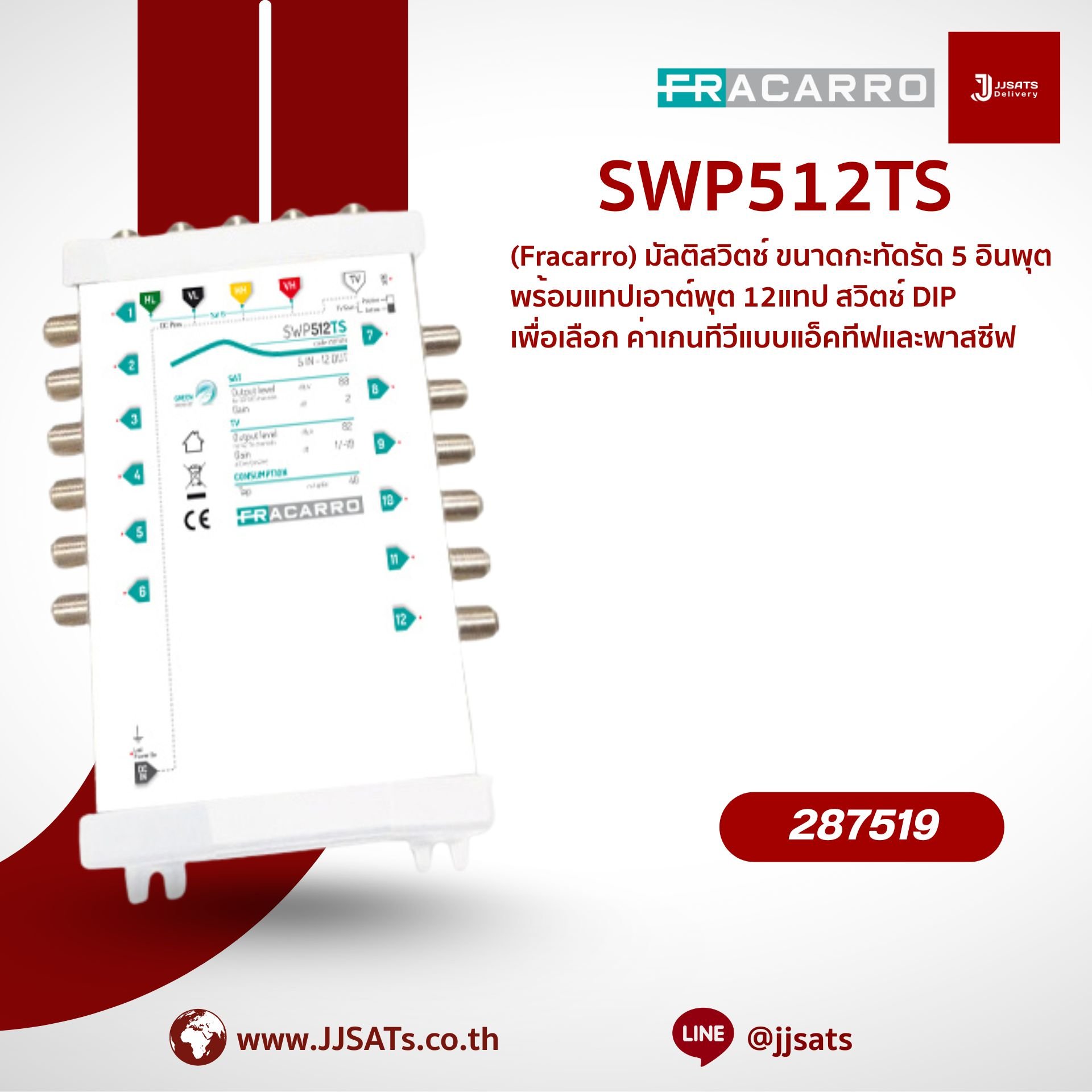

287519 – Fracarro SWP512TS 5-Input (4 SAT + 1 TV) 12-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287519 – Fracarro SWP512TS 5-Input (4 SAT + 1 TV) 12-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287519
Availability: InStock

Attribute:

SKU : 287519

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

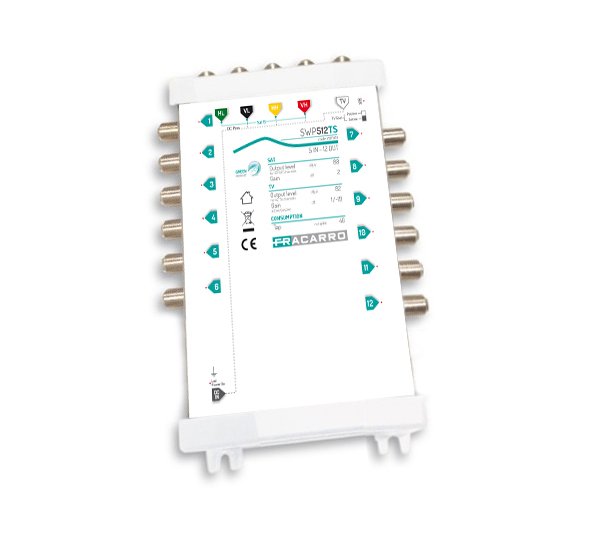

The FRACARRO SWP512TS is a standalone multiswitch with 5 inputs and 12 outputs, designed for distributing both satellite (SAT) and terrestrial TV signals to up to 12 independent outlets. It is ideal for large homes, small apartment buildings, or office environments that require a centralized TV distribution system without complex cascading setups. Compatible with both QUAD and QUATTRO LNBs.

Key Features:

5 inputs: 4 satellite inputs (VL, VH, HL, HH) and 1 terrestrial TV input
12 independent outputs – supports up to 12 SAT/TV receivers
Compatible with QUAD and QUATTRO LNBs
Integrated amplification for both SAT and TV signals
High isolation between outputs to reduce cross-interference
Uses standard F-Type female connectors
Operates as a standalone unit – no need for cascading
Can be powered externally (220V) or via connected SAT receivers
Durable and ventilated housing – designed for indoor installation

SWP512TS
Product Code	287519
Inputs/Outputs
Inputs	4 SAT, 1 TV
Tap Outputs	12
SAT Section
Bandwidth	950-2300	MHz
Gain	-3/1	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	0	dB
Gain (Passive TV)	-20	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: entirely fed by the receiver	mA
Max Current Consumption for SAT	Passive TV: 1500; Active TV: 1340	mA
Specifications
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978102341
Packaging Dimensions	250 x 155 x 45	mm
Product Dimensions	170 x 130 x 40	mm
Packaging Weight	0.613	kg

287519 Fracarro SWP512TS 5-Input (4 SAT + 1 TV) 12-Output Multiswitch TV Gain Adjustable via DIP Switch มัลติสวิตช์ 5 อินพุต (4 SAT + 1 TV) 12 เอาต์พุต ปรับเกนทีวีได้ผ่าน DIP switch JJSATs Multiswitch Compact
