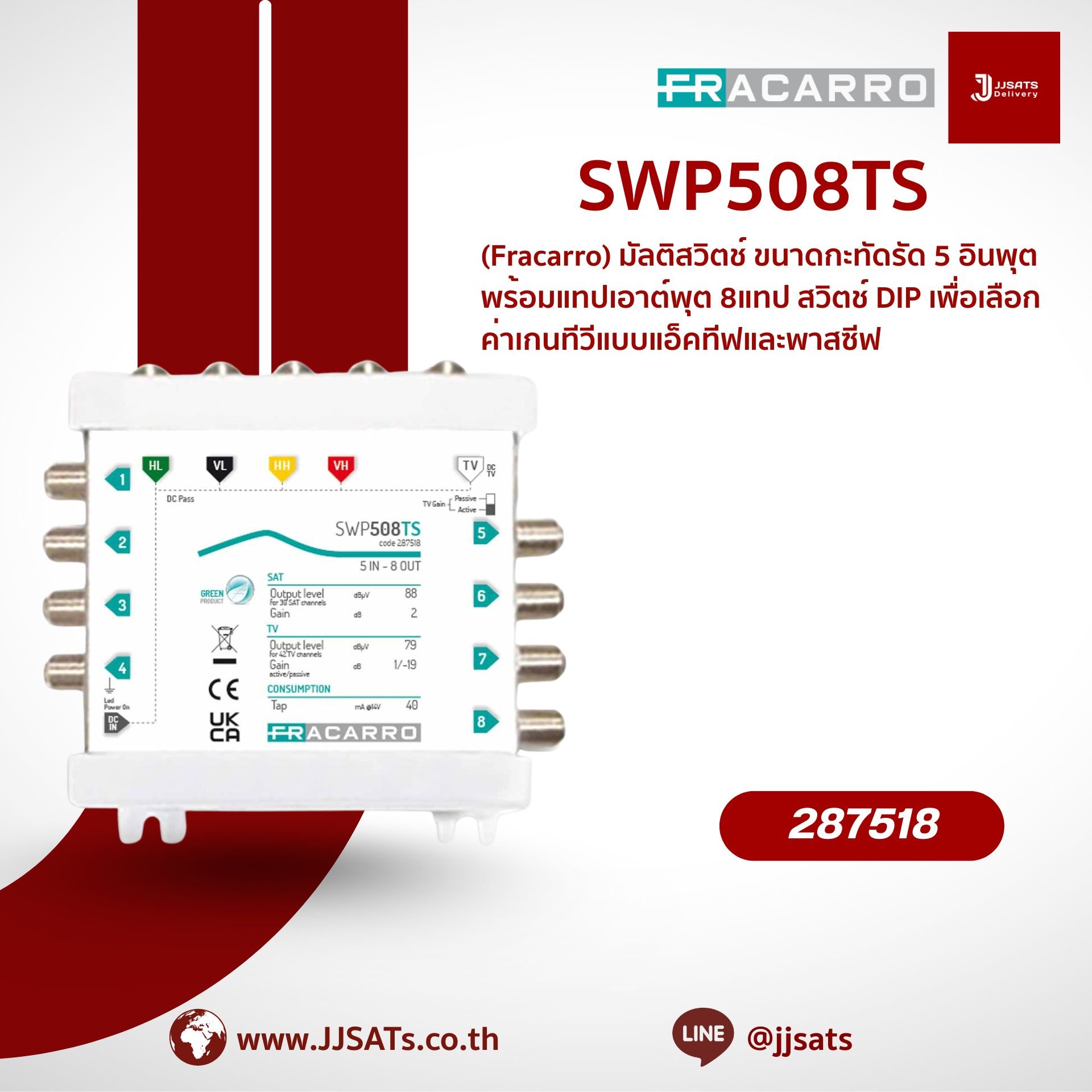

287518 – Fracarro SWP508TS 5-Input (4 SAT + 1 TV) 8-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use

Name: 287518 – Fracarro SWP508TS 5-Input (4 SAT + 1 TV) 8-Output Multiswitch, TV Gain Adjustable via DIP Switch, Ideal for Indoor Use
Brand: FRACARRO
SKU: 287518
Availability: InStock

Attribute:

SKU : 287518

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , TV/SAT Multi switches ,

Brand : FRACARRO

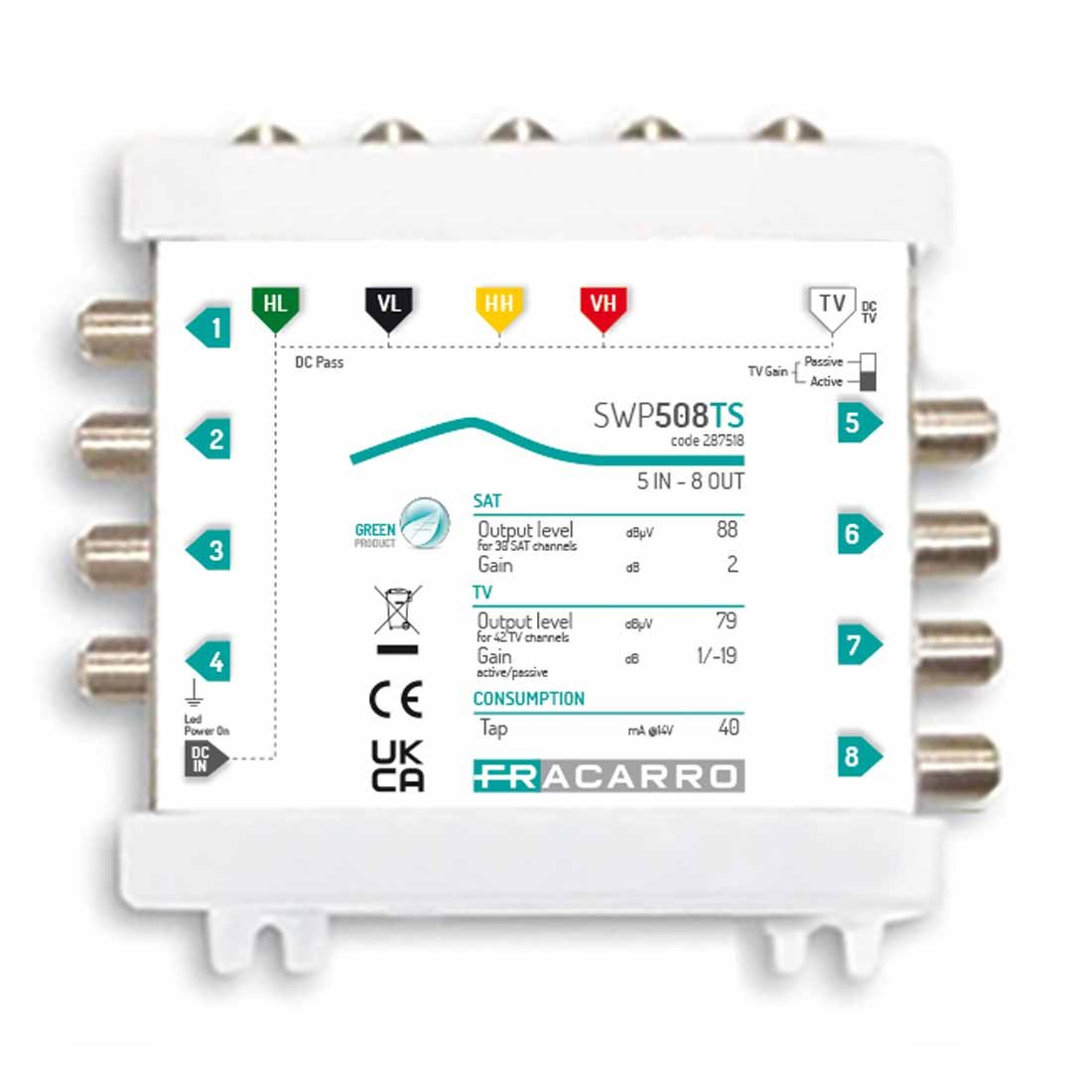

The FRACARRO SWP508TS is a 5-input, 8-output standalone multiswitch for distributing satellite and terrestrial TV signals. It’s designed for small to medium-sized SMATV systems, where a single satellite position and terrestrial antenna need to be distributed to up to 8 TV outlets. This model is standalone, meaning it doesn’t require cascade configuration and is easy to install in residential buildings, villas, or small commercial setups.

Key Features:

5 inputs: 4 satellite (VL, VH, HL, HH) + 1 terrestrial
8 independent outputs – connects up to 8 user outlets
Compatible with universal QUAD or QUATTRO LNBs
Low insertion loss and high isolation between outputs
Integrated amplification for both SAT and TV signals
Uses F-type connectors
Powered via external 220V or through SAT receivers (passive mode)
Compact, robust metal housing for long-term durability
Easy installation – suitable for standalone SMATV applications

SWP508TS
Product Code	287518
Inputs/Outputs
Inputs	4 SAT, 1 TV
Tap Outputs	8
SAT Section
Bandwidth	950-2300	MHz
Gain	-2/2	dB
Max Output Level	100	dBµV
TV Section
TV Bandwidth	Active TV: 47-862; Passive TV: 5-862	MHz
Gain (Active TV)	1	dB
Gain (Passive TV)	-19	dB
Max Output Level (Active TV)	92	dBµV
Return Channel
Bandwidth	Passive TV: 5-65	MHz
Consumption
Tap	40	mA
Power Supply Voltage	120-240 / 50-60	Vdc/A
Absorption	Active TV: 160@12V; Passive TV: Fully powered by receivers	mA
Max Current Consumption for SAT	Passive TV: 1500; Active TV: 1340	mA
Specifications
Power Supply Dimensions	90 x 70 x 45	mm
Operating Temperature	-10 to +55	°C
SAT-SAT Isolation	>30	dB
Dimensions and Packaging
Number of Pieces	1
EAN Code	8016978102334
Packaging Dimensions	250 x 155 x 45	mm
Product Dimensions	110 x 130 x 40	mm
Packaging Weight	0.303	kg

287518 Fracarro SWP508TS มัลติสวิตช์ 5 อินพุต มัลติสวิตช์ 5 อินพุต (4 SAT + 1 TV) 8 เอาต์พุต ปรับเกนทีวีได้ผ่าน DIP switch 5-Input (4 SAT + 1 TV) 8-Output Multiswitch TV Gain Adjustable via DIP Switch JJSATs
