High-Performance Layer 3 Switch for Multi-Service Networks
This Layer 3 switch, due to its advanced performance, aggregation capability, flexibility and scalability, is suitable as a star center for multi-service networks. With support for multicast protocol (IGMP or routing multicast), it enables IPTV traffic, HD video surveillance, and HD video streaming. The 48 GE ports allow the connection of multiple services, servers, controllers, etc. The 6 SFP+ ports at 10GE allow stack or uplink with other switches in the same series. Equipped with AC 220V hot-swap power supply and one slot for redundant power supply.

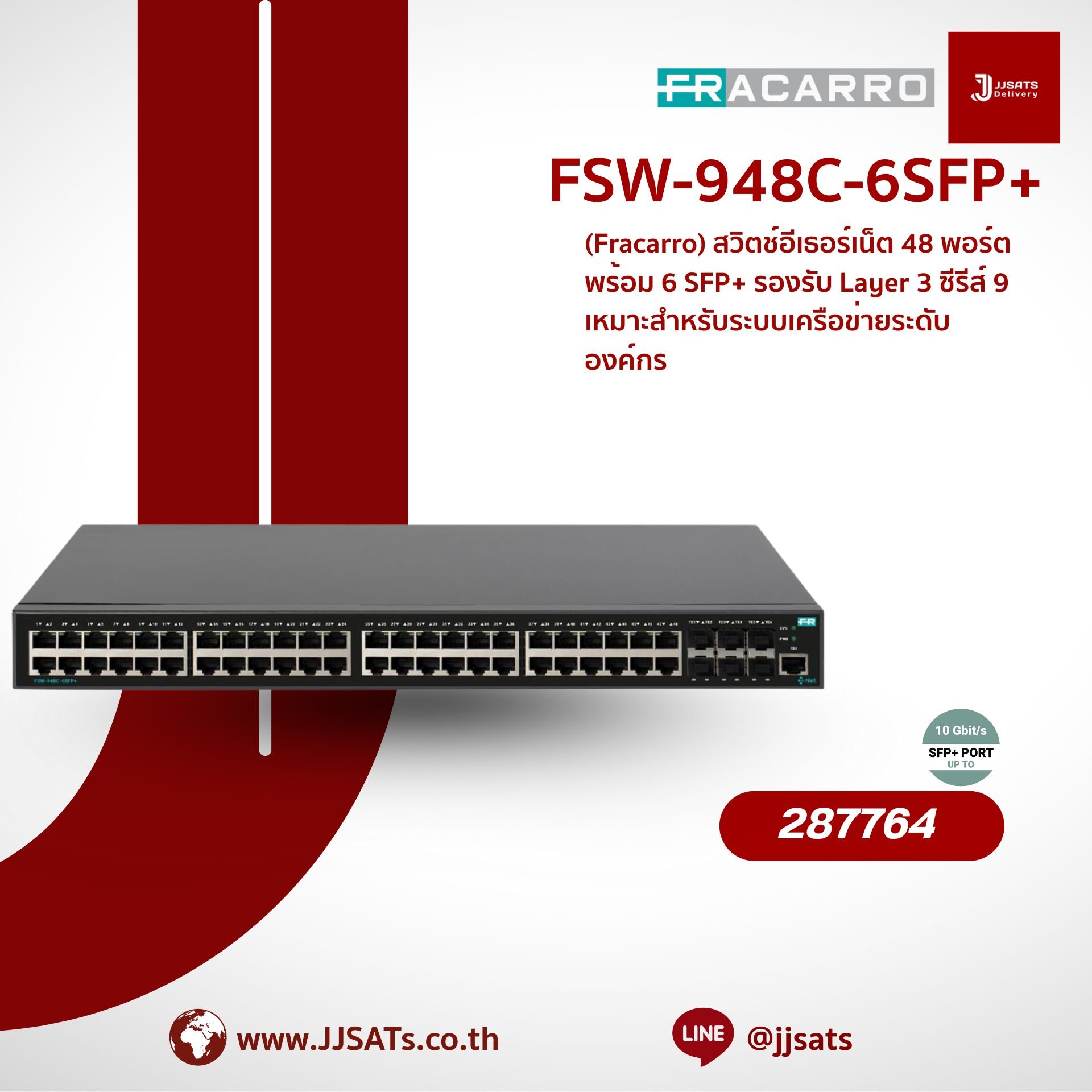

| FRACARRO FSW-948C-6SFP+ | |
| Code | 287764 |
| LAN Input | 48 x 10/100/1000M auto-negotiation, 6 x 10GE/1GE SFP+ |
| RJ45 Console | 1 |
| Backplane (Gbps) | 216 |
| Forwarding Rate (Mpps / 64 bytes) | 162 |
| Fans | 2 |
| Noise @25°C (dBA) | 45 |
| Forwarding Mode | Store-forward |
| Flash Memory (MB) | 16 |
| DRAM Memory (MB) | 512 |
| MAC Table | 32K |
| Buffer Size (MB) | 2 |
| VLAN Interface | 1000 |
| Routing Table (RIB) | 12000 |
| MTBF (h) | >200000 |
