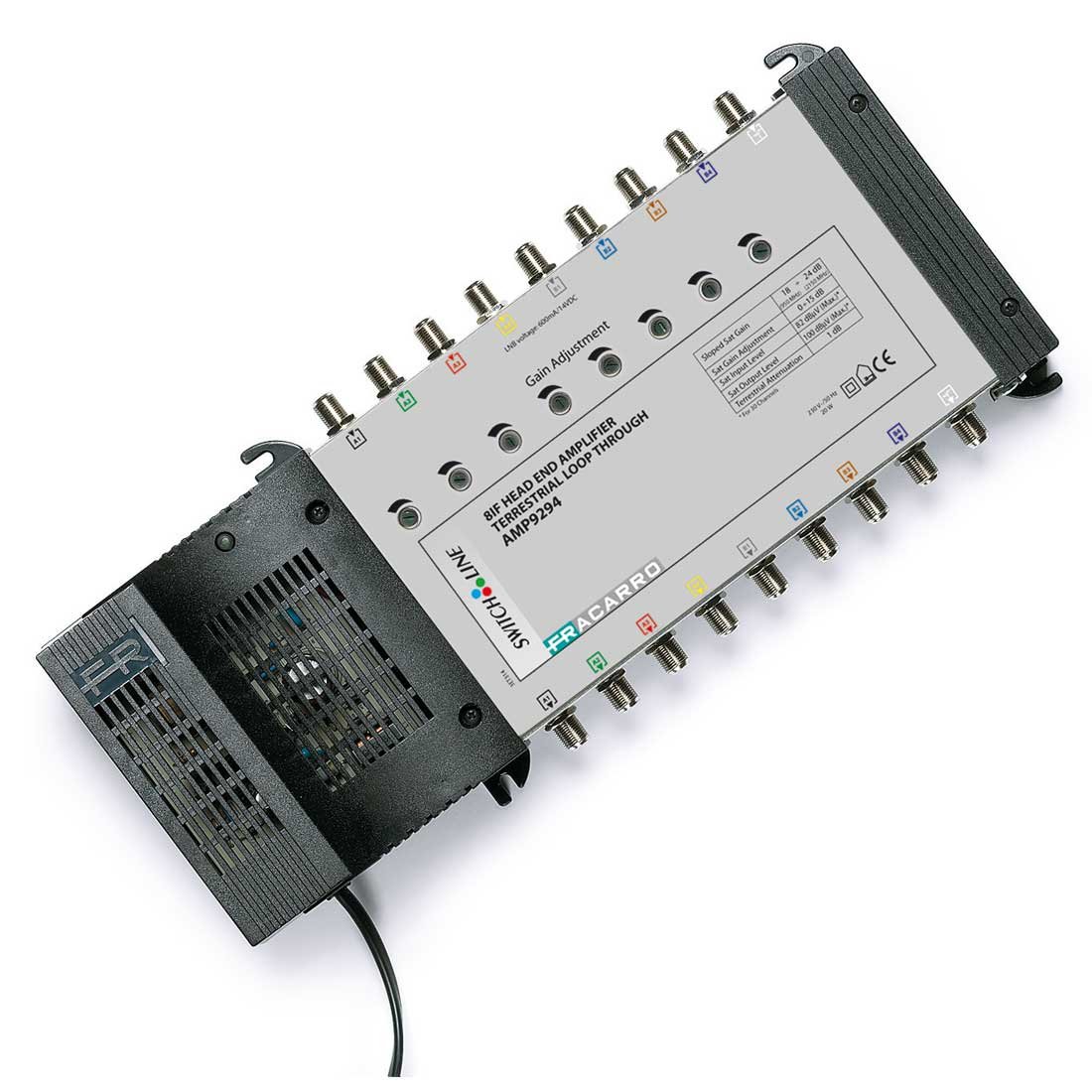

271032 – Fracarro AMP9294 9-Input Headend Amplifier (8 SAT + 1 TV), Gain Adjustable up to 24 dB, Ideal for Small to Medium Satellite TV Installations

Attribute:

SKU : 271032

 Add to wishlist
  Compare


Share

Categories : SMATV / MATV / CATV system ,  Fracarro FTTx HFC Smatv ,

Brand : FRACARRO

Share

The AMP9294 is an active amplifier designed to boost both Wideband Satellite signals (V & H) and terrestrial TV signals (FM, DAB, VHF, UHF). It’s ideal for SMATV, MATV, and FTTH systems where SAT and TV signals are combined and distributed over a single coaxial network. The device improves signal strength before distribution to multiswitches or multiple outlets.

Key Features:
  • Supports SAT Wideband input (V & H): 290–2340 MHz
  • Supports Terrestrial TV (FM / DAB / VHF / UHF): 47–862 MHz
  • 3 independent inputs: TV / SAT V / SAT H
  • Single combined output (TV + SAT)
  • High amplification gain: SAT: Up to 28 dB  TV: Up to 24 dB
  • Excellent Return Loss: ≥ 10 dB
  • Uses standard F-type female connectors
  • Powered via 12–20V DC
  • Compact and easy to install

AMP9294
Product Code271032
Inputs
Inputs8 SAT, 1 TV
SAT Section
Bandwidth950-2150MHz
Gain24dB
Gain Adjustment15dB
Max Output Level112dBµV
TV Section
TV Bandwidth5-862MHz
Insertion Loss-1dB
Consumption
Power Supply Voltage220-240 / 50-60Vdc/A
Max Current Consumption LNB600mA
Specifications
Operating Temperature-10 to +55°C
Dimensions and Packaging
Pieces1
EAN Code8016978051069
Packaging Dimensions405 x 170 x 75mm
Product Dimensions320 x 125 x 65mm
Packaging Weight1.45kg

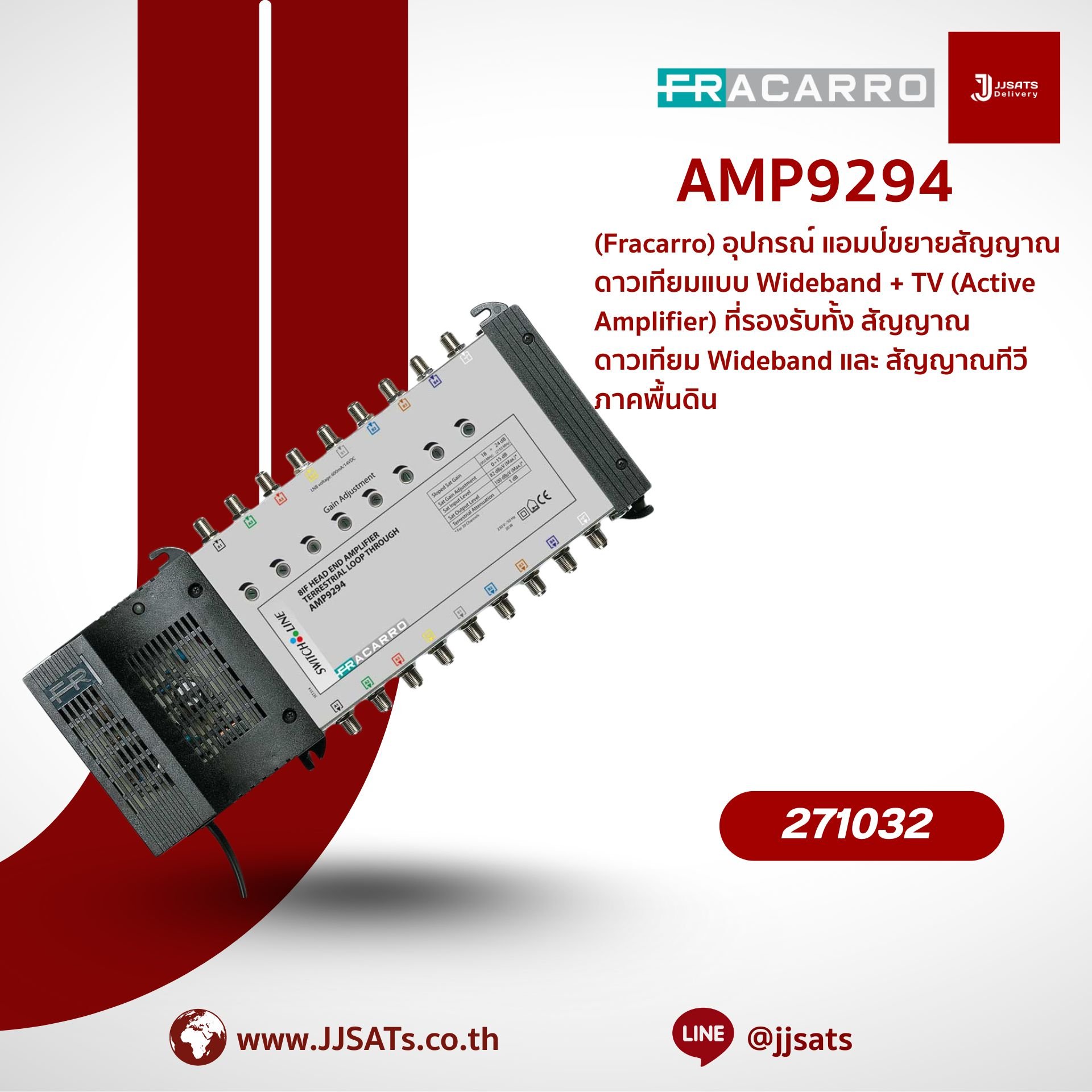

271032 Fracarro AMP9294 9-Input Headend Amplifier (8 SAT + 1 TV) Gain Adjustable up to 24 dB อุปกรณ์แอมป์ขยายสัญญาณดาวเทียมแบบ Wideband + TV JJSATs

Related Product

New

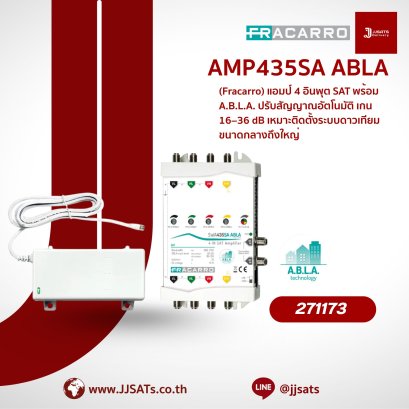

271173 – Fracarro AMP435SA ABLA 4-SAT Input Amp with A.B.L.A., Auto Signal Adjust, Gain 16–36 dB, Ideal for Medium to Large Satellite Systems

271173 – Fracarro AMP435SA ABLA 4-SAT Input Amp with A.B.L.A., Auto Signal Adjust, Gain 16–36 dB, Ideal for Medium to Large Satellite Systems

New

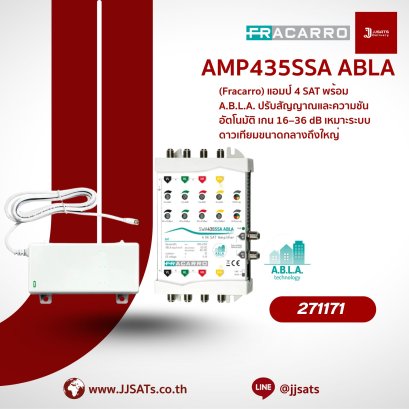

271171 – Fracarro AMP435SSA ABLA 4-SAT Amp with A.B.L.A., Auto Level & Slope Adjust, Gain 16–36 dB, Ideal for Medium to Large Satellite Systems
