SKU : 270665
Categories : Fracarro FTTx HFC Smatv , Optical fibre Receivers (Node) ,
Brand : FRACARRO
Share

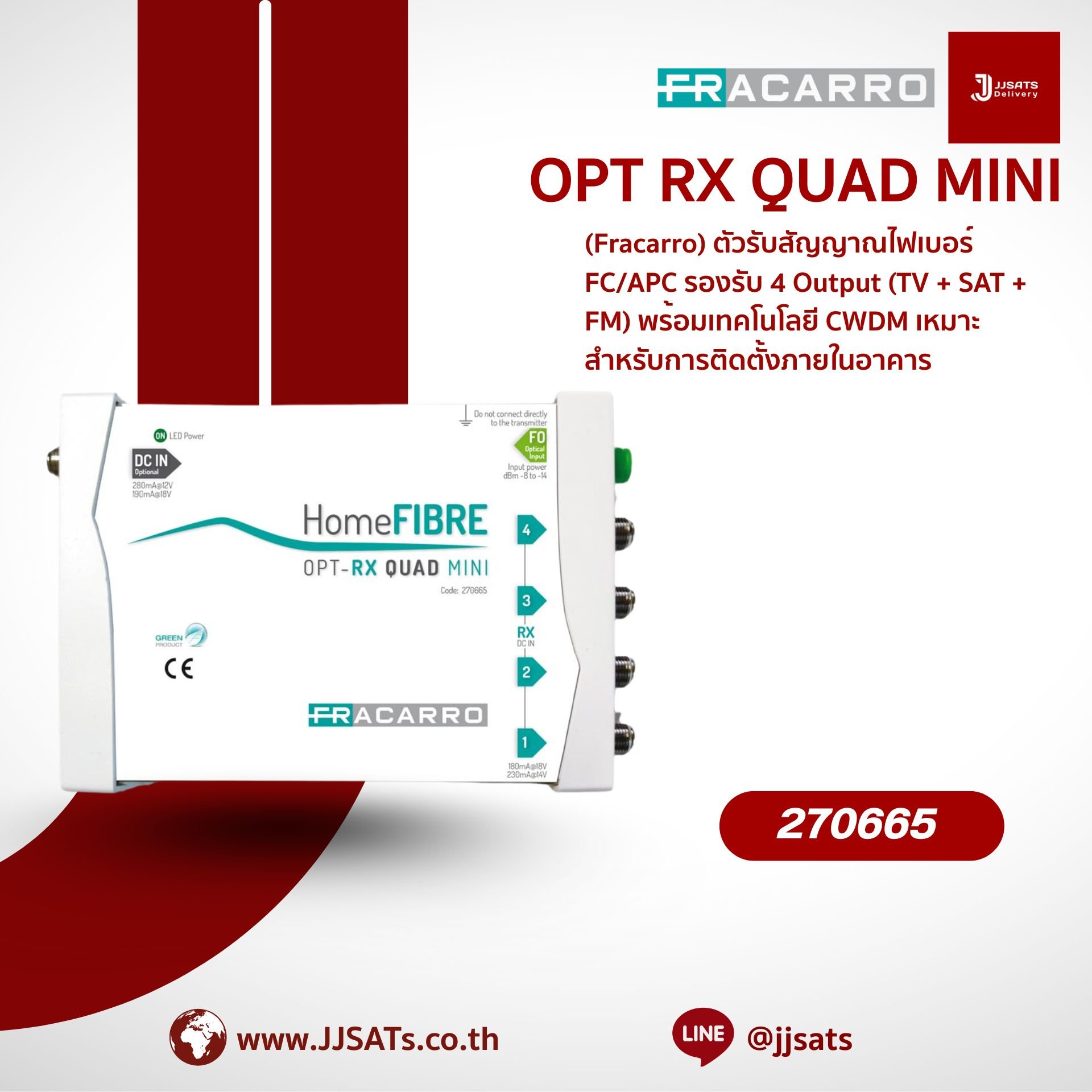

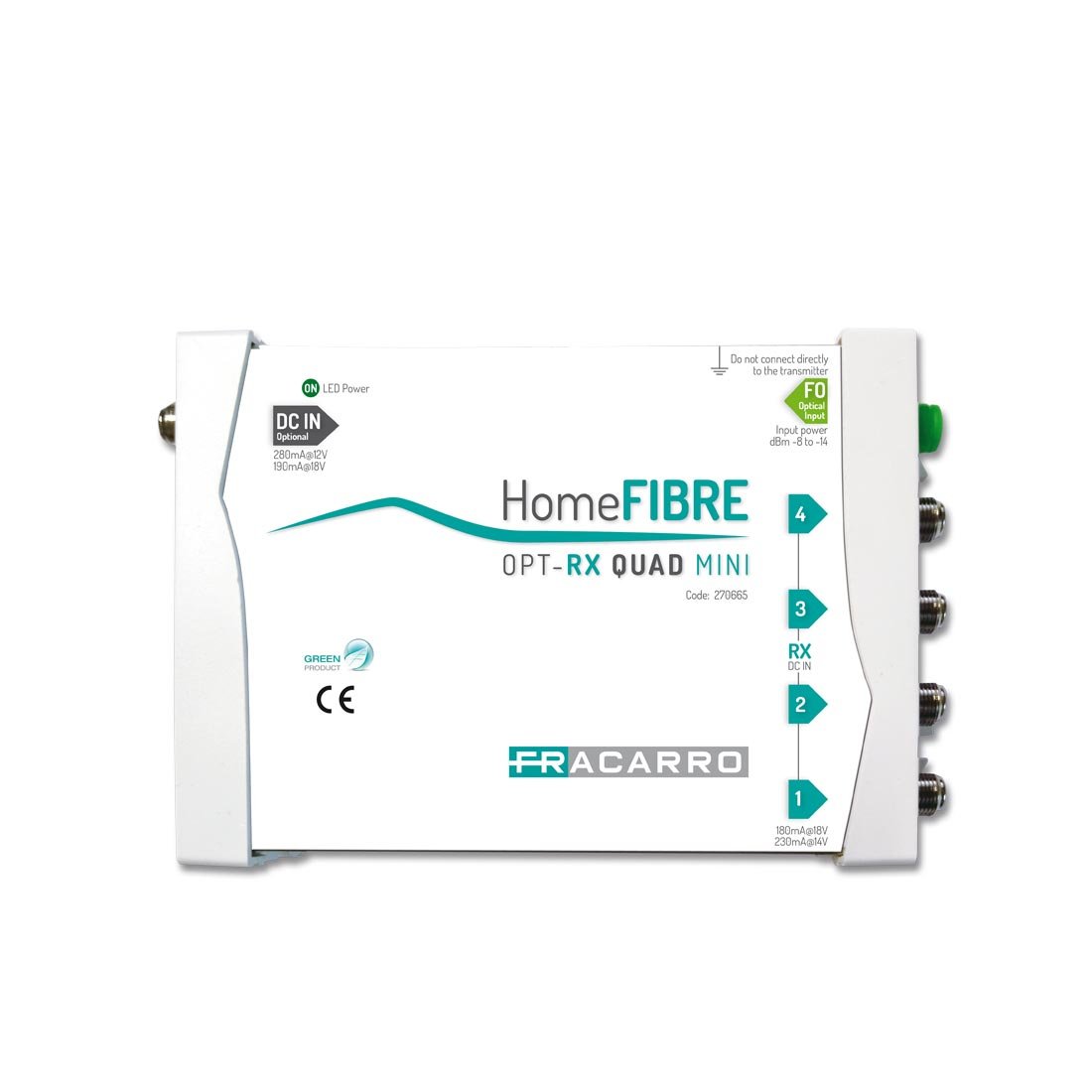

The OPT RX QUAD MINI is a compact active optical receiver from FRACARRO designed to convert an optical signal (1550 nm) into four independent RF outputs equivalent to a Quad LNB (Legacy mode). It delivers full satellite signal output in V/H and Low/High bands, making it compatible with standard satellite receivers that support Universal LNBs. Ideal for FTTH deployments, small apartment blocks, villas, or homes that require direct satellite TV from fiber input.
Key Features:
Converts 1550 nm optical input to RF signals in Quad LNB format
Provides 4 independent Legacy RF outputs (V/L, H/L, V/H, H/H)
Allows direct connection to 4 satellite receivers without the need for a multiswitch
Compatible with Universal LNB-type set-top boxes
4x F-Type female connectors for RF output
Miniature, space-saving design for easy wall or cabinet installation
Requires 12V DC / 0.5A power supply
| OPT RX QUAD MINI | ||
| Product Code | 270665 | |
| Optical Input Section | ||
| Optical Input Connector Type | 1 FC/APC | |
| Wavelength Input Range | 1260-1650 | nm |
| Optical Input Power Level | -8 | dBm |
| RF Output Section | ||
| Connector Type | F Female | |
| Return Loss | -7 | dB |
| Number of Outputs | 4 (1 SAT + TV) | |
| Output Level TV @ 8dBmo 8 transponder | 87 | dBµV |
| Output Level TV @ 8dBmo 16 transponder | 84 | dBµV |
| Output Level TV @ 8dBmo 40 transponder | 81 | dBµV |
| Output Level TV @ 14dBmo 8 transponder | 75 | dBµV |
| Output Level TV @ 14dBmo 16 transponder | 72 | dBµV |
| Output Level TV @ 14dBmo 40 transponder | 69 | dBµV |
| Output Level SAT @ 8dBmo | 76 | dBµV |
| Output Level SAT @ 14dBmo | 64 | dBµV |
| Specifications | ||
| Power Supply Voltage | 12-18 | V |
| Current Consumption | 350@12V | mA |
| LED Indicator | Multi-function LEDs: power status and signaling | |
| Dimensions and Packaging | ||
| Pieces | 1 | |
| EAN Code | 8016978099573 | |
| Packaging Dimensions | 213 x 125 x 37 | mm |
| Product Dimensions | 105 x 100 x 50 | mm |
| Packaging Weight | 0.38 | kg |
