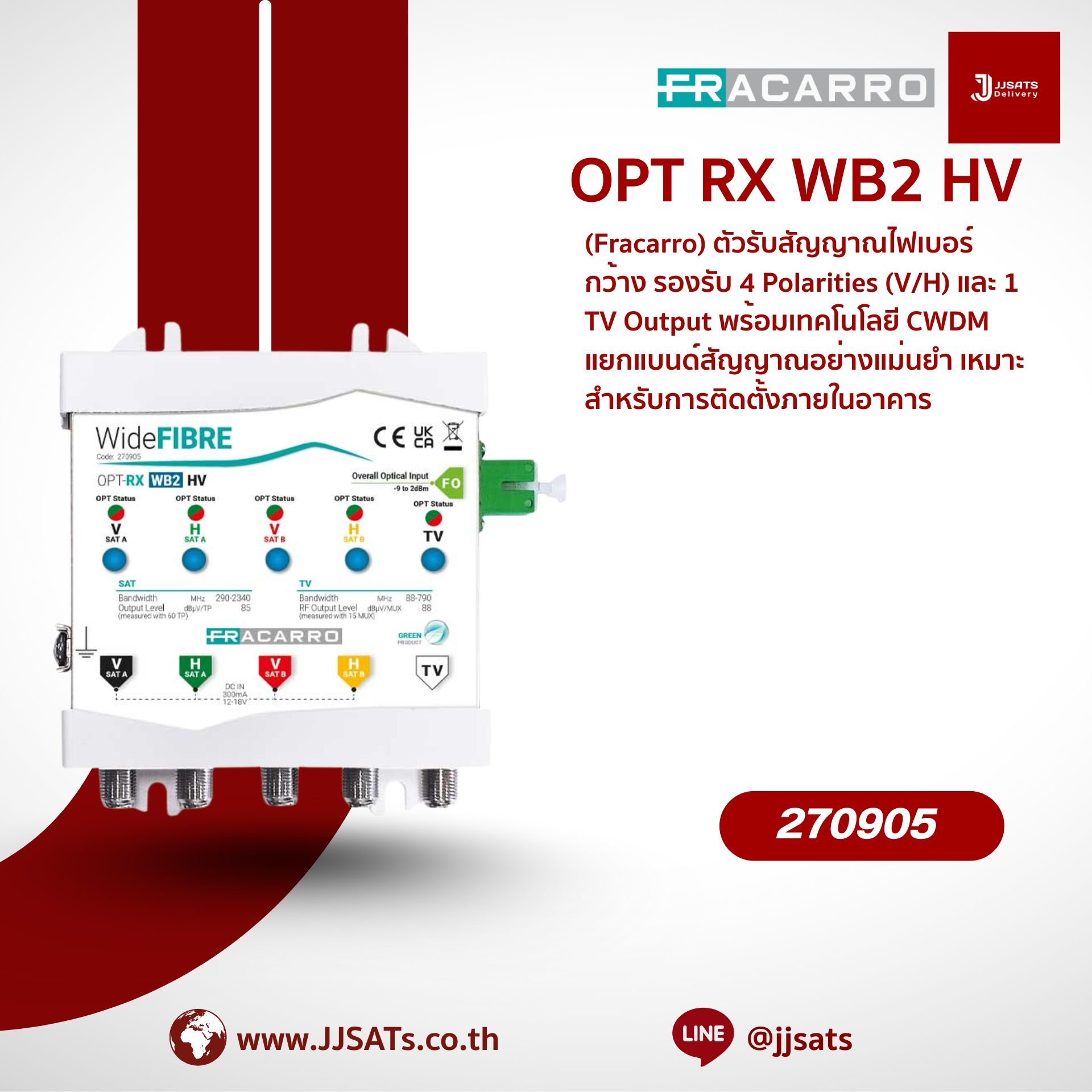

270905 – Fracarro OPT RX WB2 HV Wideband Optical Receiver, 4 Satellite Polarities (V/H) & 1 TV Output, CWDM Technology for Accurate Band Separation, Ideal for Indoor Installations

Name: 270905 – Fracarro OPT RX WB2 HV Wideband Optical Receiver, 4 Satellite Polarities (V/H) & 1 TV Output, CWDM Technology for Accurate Band Separation, Ideal for Indoor Installations
Brand: FRACARRO
SKU: 270905
Availability: InStock

Attribute:

SKU : 270905

Add to wishlist

Compare

Categories : Fracarro FTTx HFC Smatv , Optical fibre Receivers (Node) ,

Brand : FRACARRO

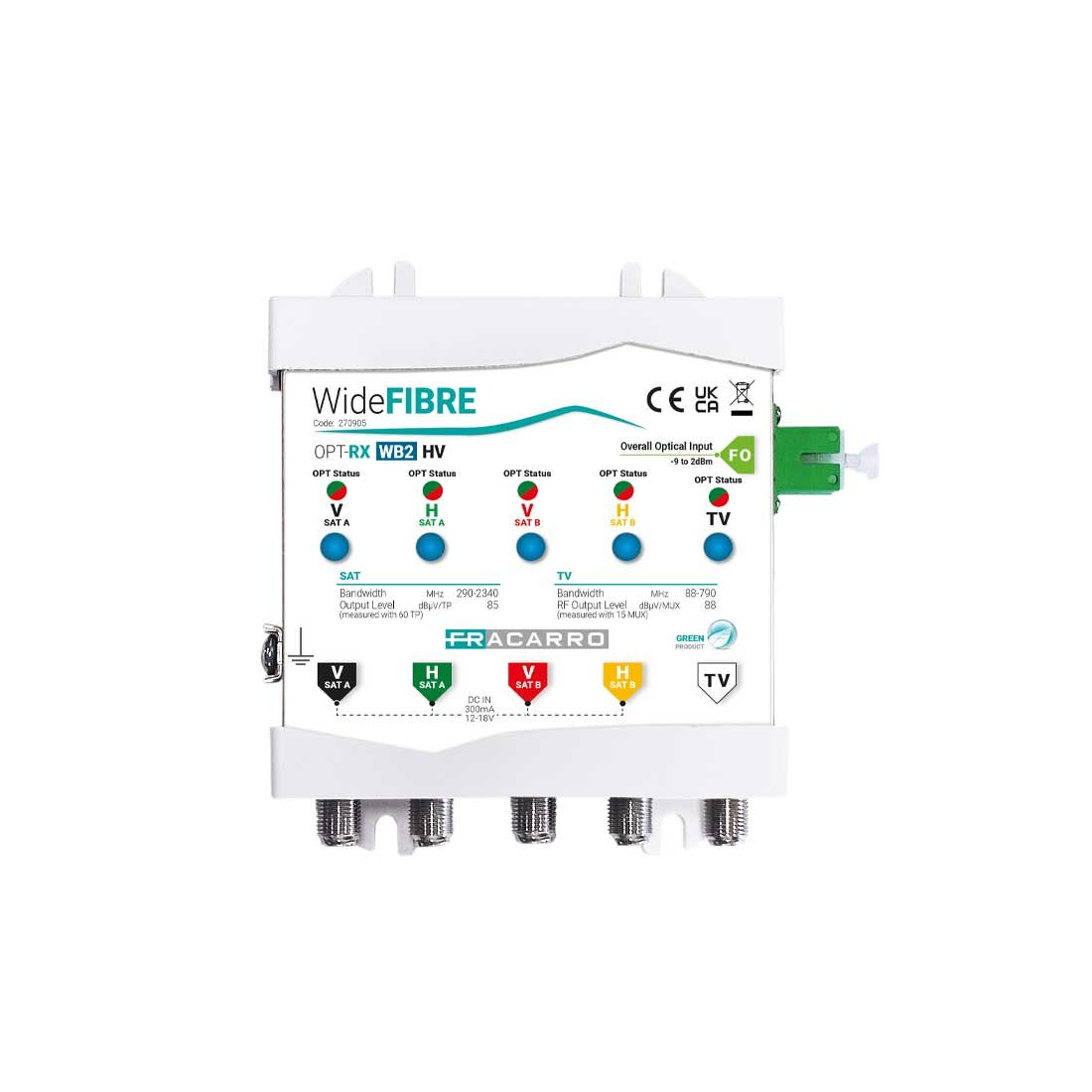

The OPT RX WB2 HV is an active wideband optical receiver designed to convert optical signals at 1550 nm into two independent wideband satellite outputs—each with Vertical (V) and Horizontal (H) RF outputs. This means it provides 4 separate RF outputs (V1, H1, V2, H2), allowing integration with two independent SAT systems or dual-feed satellite distribution from a single fiber input. It is ideal for FTTH/FTTB or SMATV/MATV networks that require full SAT signal delivery via fiber.

Key Features:

Converts 1550 nm optical input into two independent wideband RF outputs (V1/H1 + V2/H2)
Ideal for SMATV, MATV, and FTTx systems requiring dual satellite outputs
4x F-Type Female RF outputs for vertical and horizontal polarizations
Supports RF frequency range: 290 – 2340 MHz
High RF output level up to 90 dBµV
Requires 12V DC / 0.5A power supply
Compact design for rack or wall-mounted installations

OPT-RX WB2 HV
Product Code	270905
Optical Input Section
Optical Input Connector Type	1 x SC/APC
Wavelength Input Range	1310 (SatA V), 1330 (SatA H), 1350 (SatB V), 1370 (SatB H), 1550 (TV)	nm
Optical Input Power Level	-5	dBm
RF Output Section
Connector Type	F Female
Outputs	4 Wideband SAT polarities (V,H) + 1 TV
Output Level TV @ 8dBmo 16 transponder	88	dBµV
Output Level SAT @ 8dBmo	84	dBµV
Output Level SAT @ 14dBmo	84	dBµV
Specifications
Power Supply Voltage	12-18	V
Current Consumption	200@12V	mA
LED Indicator	Status LEDs for each output for quick diagnostics
Recommended auxiliary power supply	PSU1508F (287760) or PSU1215FA (code 287551) in the UK
Dimensions and Packaging
Pieces	1
EAN Code	8016978099580
Packaging Dimensions	213 x 125 x 37	mm
Product Dimensions	160 x 100 x 36	mm
Packaging Weight	0.38	kg
