SKU : 270664
Categories : Fracarro FTTx HFC Smatv , Optical fibre Receivers (Node) ,
Brand : FRACARRO
Share

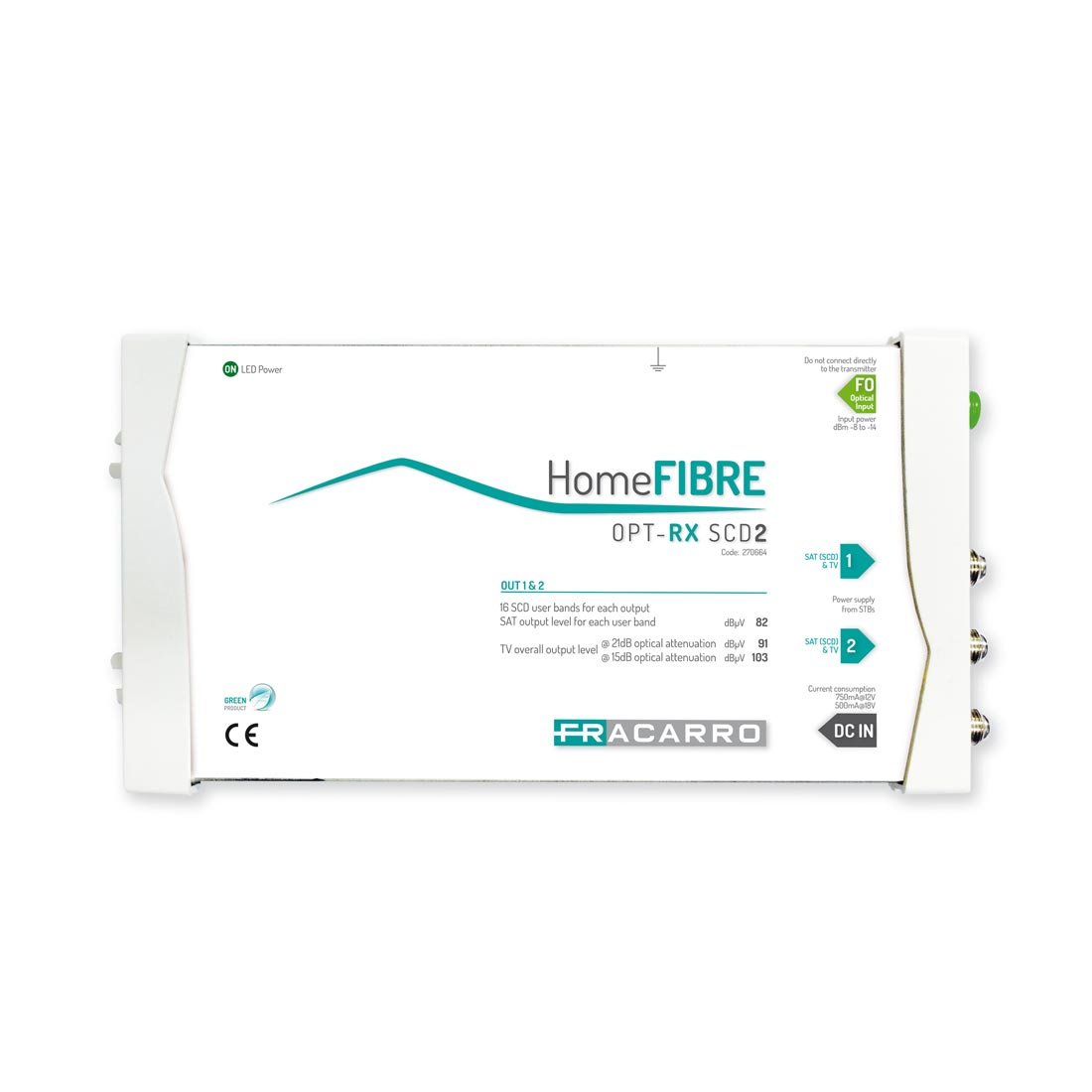

The OPT RX SCD2 is an active optical receiver designed for satellite and TV signal distribution over fiber optic infrastructure (FTTH/FTTB). It receives an optical signal at 1550 nm and converts it into RF output using the Unicable SCD2 (Satellite Channel Distribution) protocol. The unit supports up to 16 User Bands (UBs), allowing satellite and TV signals to be combined and distributed over a single coaxial cable. It is ideal for integration with wideband LNBs or fiber headend systems.
Key Features:| OPT RX SCD2 | ||
| Product Code | 270664 | |
| Optical Input Section | ||
| Optical Input Connector Type | 1 FC/APC | |
| Wavelength Input Range | 1260-1650 | nm |
| Optical Input Power Level | -8 | dBm |
| RF Output Section | ||
| Connector Type | F Female | |
| Return Loss | -10 | dB |
| Number of Outputs | 2 (up to 32 SCD2 users dCSS) | |
| Output Level TV @ 8dBmo 8 transponder | 94 | dBµV |
| Output Level TV @ 8dBmo 16 transponder | 91 | dBµV |
| Output Level TV @ 8dBmo 40 transponder | 87 | dBµV |
| Output Level TV @ 14dBmo 8 transponder | 82 | dBµV |
| Output Level TV @ 14dBmo 16 transponder | 79 | dBµV |
| Output Level TV @ 14dBmo 40 transponder | 75 | dBµV |
| SCR Frequencies | 1210, 1420, 1680, 2040 (standard EN50494) 985, 1050, 1115, 1275, 1340, 1485, 1550, 1615, 1745, 1810, 1875, 1840 (standard EN506...) | MHz |
| Specifications | ||
| Power Supply Voltage | 12-18 | V |
| Current Consumption | 200@12V | mA |
| LED Indicator | Multi-function LEDs: power status and signaling | |
| Dimensions and Packaging | ||
| Pieces | 1 | |
| EAN Code | 8016978099566 | |
| Packaging Dimensions | 213 x 125 x 37 | mm |
| Product Dimensions | 250 x 140 x 50 | mm |
| Packaging Weight | 0.38 | kg |
