SKU : 287754
Categories : Fracarro FTTx HFC Smatv , Optical fibre Splitter & WDM Peripheral ,
Brand : FRACARRO
Share

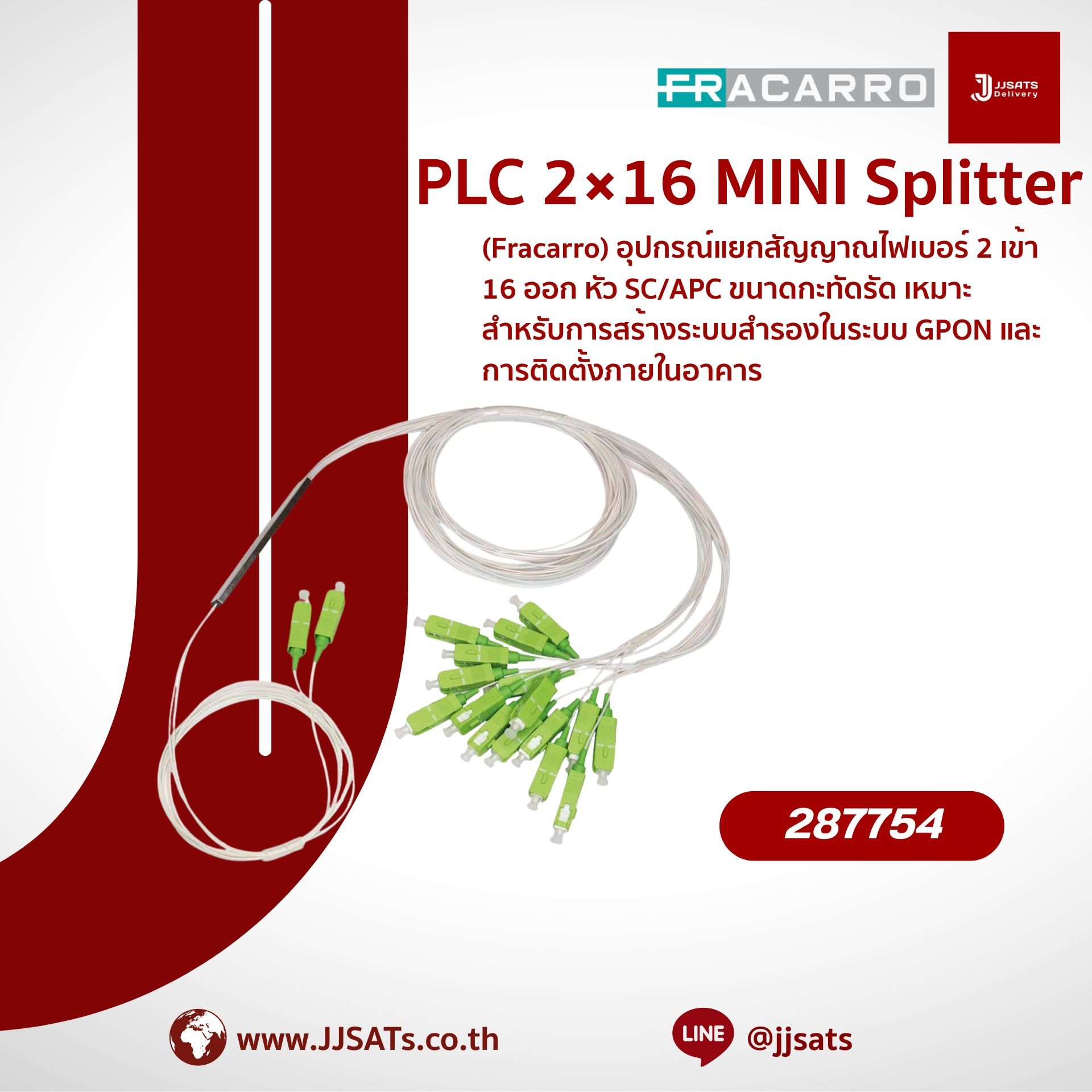

Miniaturized 16-way PLC Optical Divider with 2 Inputs
Suitable for the realization of redundancy in GPON systems, with planar waveguide technology enabling very low insertion losses. Ideal for low-cost, high-performance optical distribution and suitable for several installation types.
| FRACARRO PLC 2x16 MINI | |
| Code | 287754 |
| Input | 2 |
| Outputs | 16 |
| Connectors | SC/APC - SC/APC |
| Insertion Loss (dB) | <14.6 |
| Return Loss (dB) | >55 |
| Isolation (dB) | >55 |
| Wavelength Input (nm) | 1260-1650 |
| Fiber Type | Single-mode 9/125 |
| Sheath | G657 A1 |
| Fiber Length (m) | 0.9 |
| Connector Type | Simplex |
| Operating Temperature (°C) | -40 to +85 |
