SKU : 270658
Categories : Fracarro FTTx HFC Smatv , Optical fibre Receivers (Node) ,
Brand : FRACARRO
Share

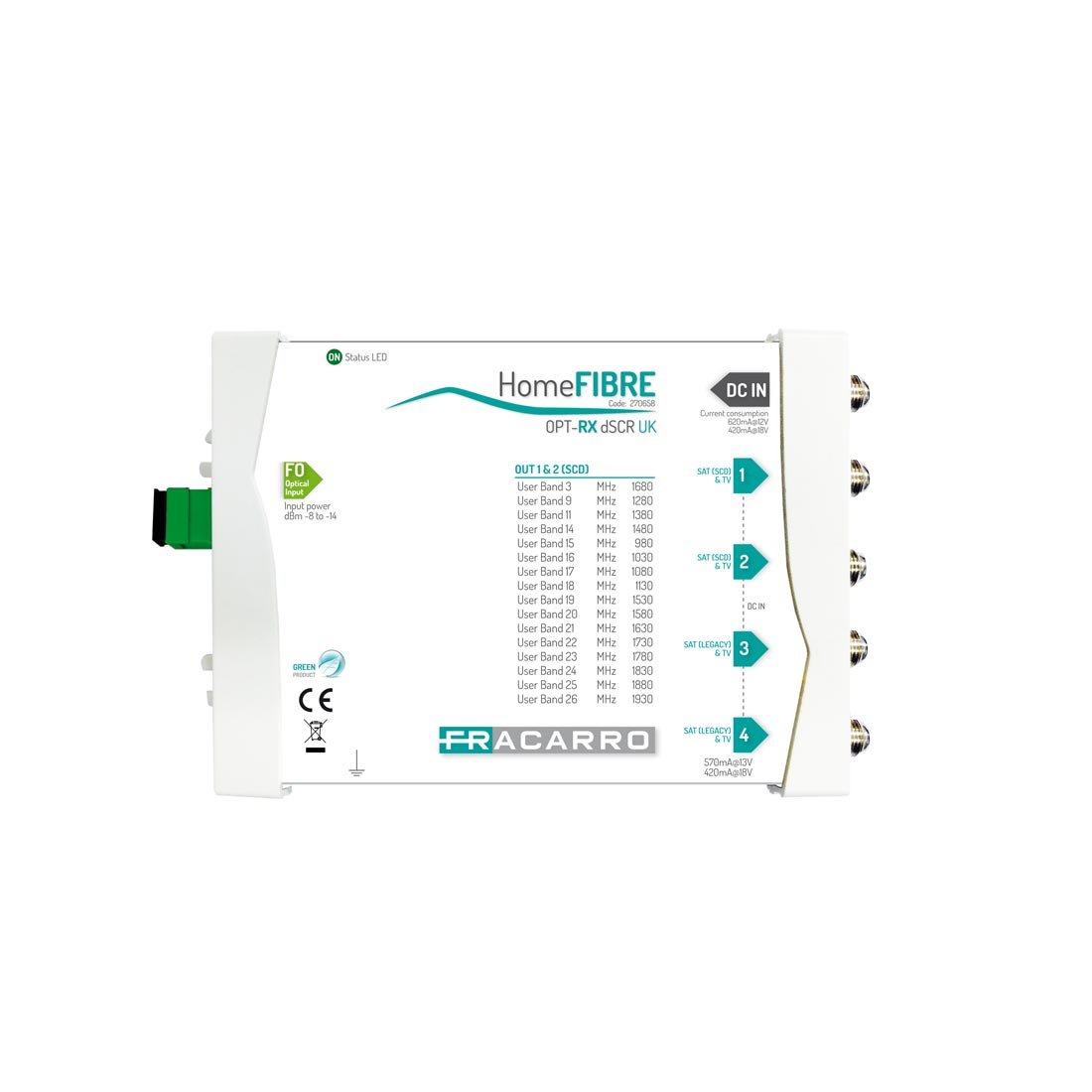

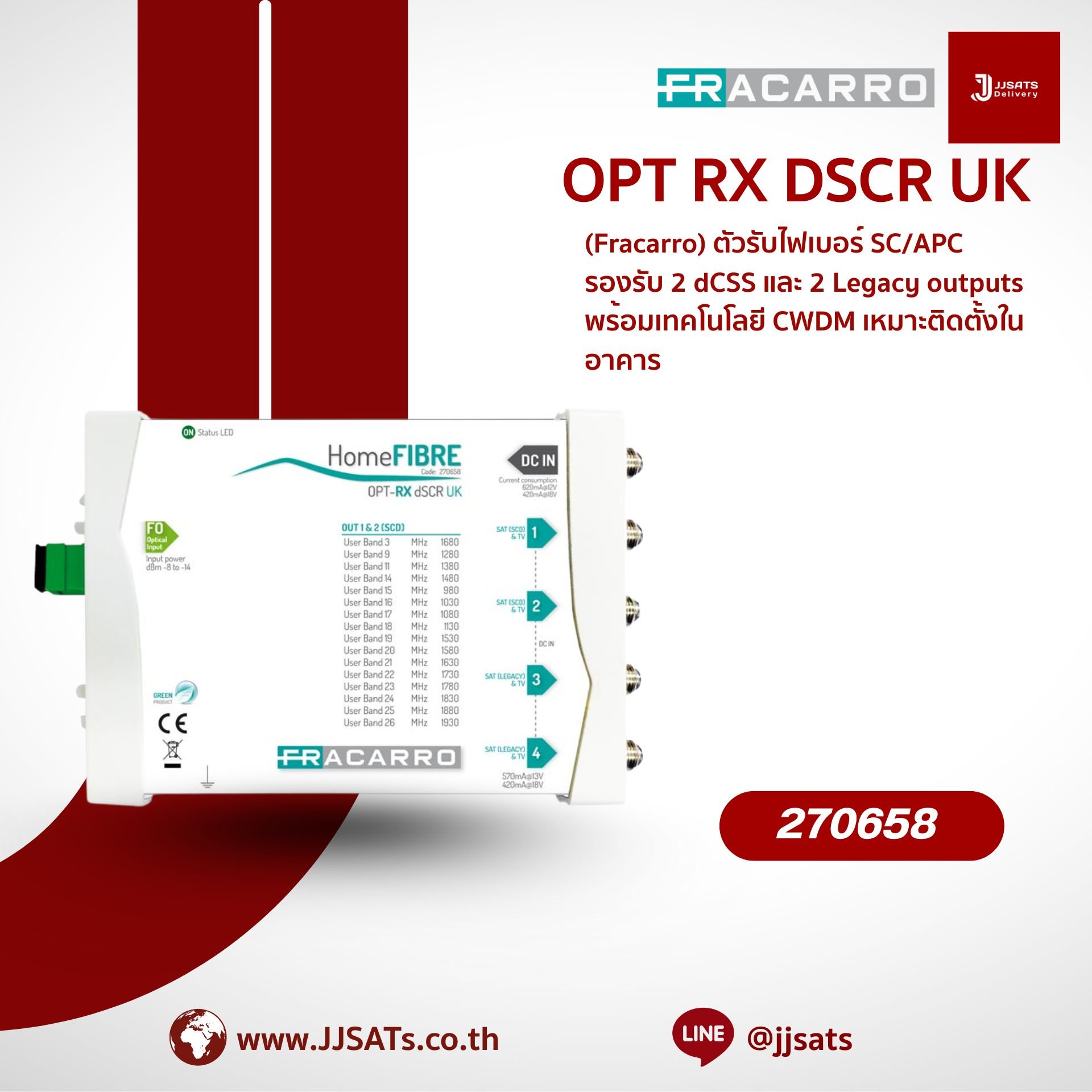

The OPT RX dSCR UK is an active optical receiver designed specifically for use in satellite TV distribution systems over fiber, especially in markets like the UK where dSCR (digital Satellite Channel Router) and Legacy outputs are commonly used. This device receives an optical signal (typically 1550 nm) via fiber and converts it into a coaxial RF output compatible with both SCR (Unicable/dSCR) and Legacy mode, delivering satellite and TV signals over a single coaxial cable.
Key Features:| OPT RX DSCR UK | ||
| Product Code | 270658 | |
| Optical Input Section | ||
| Optical Input Connector Type | 1 x SC/APC | |
| Wavelength Input Range | 1260-1650 | nm |
| Optical Input Power Level | -8 | dBm |
| RF Output Section | ||
| Connector Type | F Female | |
| Return Loss | -10 | dB |
| Number of Outputs | 2 (up to 32 SCD2 users dCSS + 2 Legacy) | |
| Output Level TV @ 8dBmo 8 transponder | 81 | dBµV |
| Output Level TV @ 8dBmo 16 transponder | 78 | dBµV |
| Output Level TV @ 8dBmo 40 transponder | 74 | dBµV |
| Output Level TV @ 14dBmo 8 transponder | 69 | dBµV |
| Output Level TV @ 14dBmo 16 transponder | 66 | dBµV |
| Output Level TV @ 14dBmo 40 transponder | 62 | dBµV |
| Output Level SAT @ 8dBmo | 82 | dBµV |
| Output Level SAT @ 14dBmo | 82 | dBµV |
| SCR Frequencies | 980, 1030, 1080, 1130, 1280, 1380, 1480, 1530, 1580, 1630, 1680, 1730, 1780, 1830, 1880, 1930 (SKY UK commands) | MHz |
| Specifications | ||
| Power Supply Voltage | 14/18 from all outputs | V |
| Current Consumption | 430@18V 620@12V | mA |
| Current Consumption (Power) | 9 | W |
| LED Indicator | Green LED on: normal operation (correctly powered); LED flashing: start up or reboot | |
| Operating Temperature | -5 to +50 | °C |
| Conformity | IEC EN 50083-2 | |
| Dimensions and Packaging | ||
| Pieces | 1 | |
| EAN Code | 8016978102600 | |
| Packaging Dimensions | 213 x 126 x 38 | mm |
| Product Dimensions | 160 x 100 x 36 | mm |
| Packaging Weight | 0.395 | kg |
