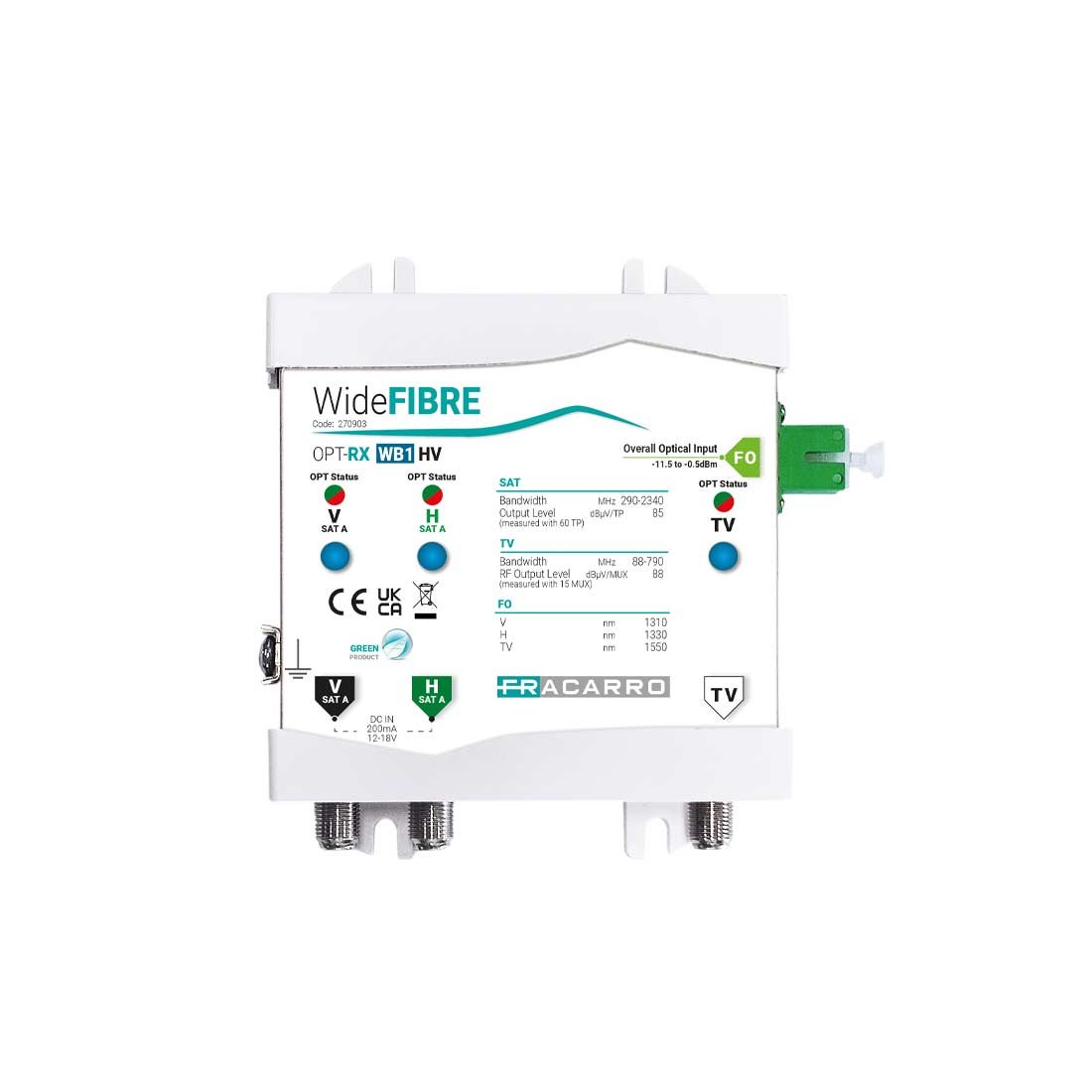

270903 – Fracarro OPT RX WB1 HV Wideband Optical Receiver, 2 Satellite Polarities (V/H) & 1 TV Output, CWDM Technology for Accurate Band Separation, Ideal for Indoor Installations

Attribute:

SKU : 270903

Brand : FRACARRO

Share

The OPT RX WB1 HV is an active wideband optical receiver designed to convert optical signals (1550 nm) into satellite RF signals in Wideband Vertical and Horizontal (V/H) format. It features two separate RF outputs (one for Vertical, one for Horizontal polarization), making it ideal for SMATV or MATV systems that distribute satellite signals over fiber optic infrastructure (FTTH/FTTB).

Key Features:
  • Converts 1550 nm optical input into two RF outputs (Vertical & Horizontal)
  • Supports wide RF output frequency: 290 – 2340 MHz
  • Active device requiring 12V DC / 0.5A power supply
  • Fiber connector: SC/APC
  • RF connectors: 2x F-type female (1x V, 1x H)
  • Ideal for SMATV, MATV, FTTH systems needing fiber-to-satellite signal conversion

OPT-RX WB1 HV
Product Code270903
Optical Input Section
Optical Input Connector Type1 x SC/APC
Wavelength Input Range1310 (SatA V), 1330 (SatA H), 1550 (TV)nm
Optical Input Power Level-5dBm
RF Output Section
Connector TypeF Female
Number of Outputs2 Wideband SAT polarities (V, H) + 1 TV
Output Level TV @ 8dBmo 16 Transponders88dBµV
Output Level SAT @ 8dBmo84dBµV
Output Level SAT @ 14dBmo84dBµV
Specifications
Power Supply Voltage12-18V
Current Consumption200@12VmA
LED IndicatorGreen: optical level in correct range; Orange: optical level below operating range; Red: optical level above operating range
Operating Temperature-10 to +55°C
Storage Temperature-40 to +70°C
ConformityCEI EN 50083-2 EN60065
Dimensions and Packaging
Pieces1
EAN Code8016978106851
Packaging Dimensions215 x 125 x 40mm
Product Dimensions114 x 120 x 31mm
Packaging Weight0.32kg
