SKU : GWN7701M
Categories : Network Infrastructure , Network Switch ,
Brand : Grandstream
Share

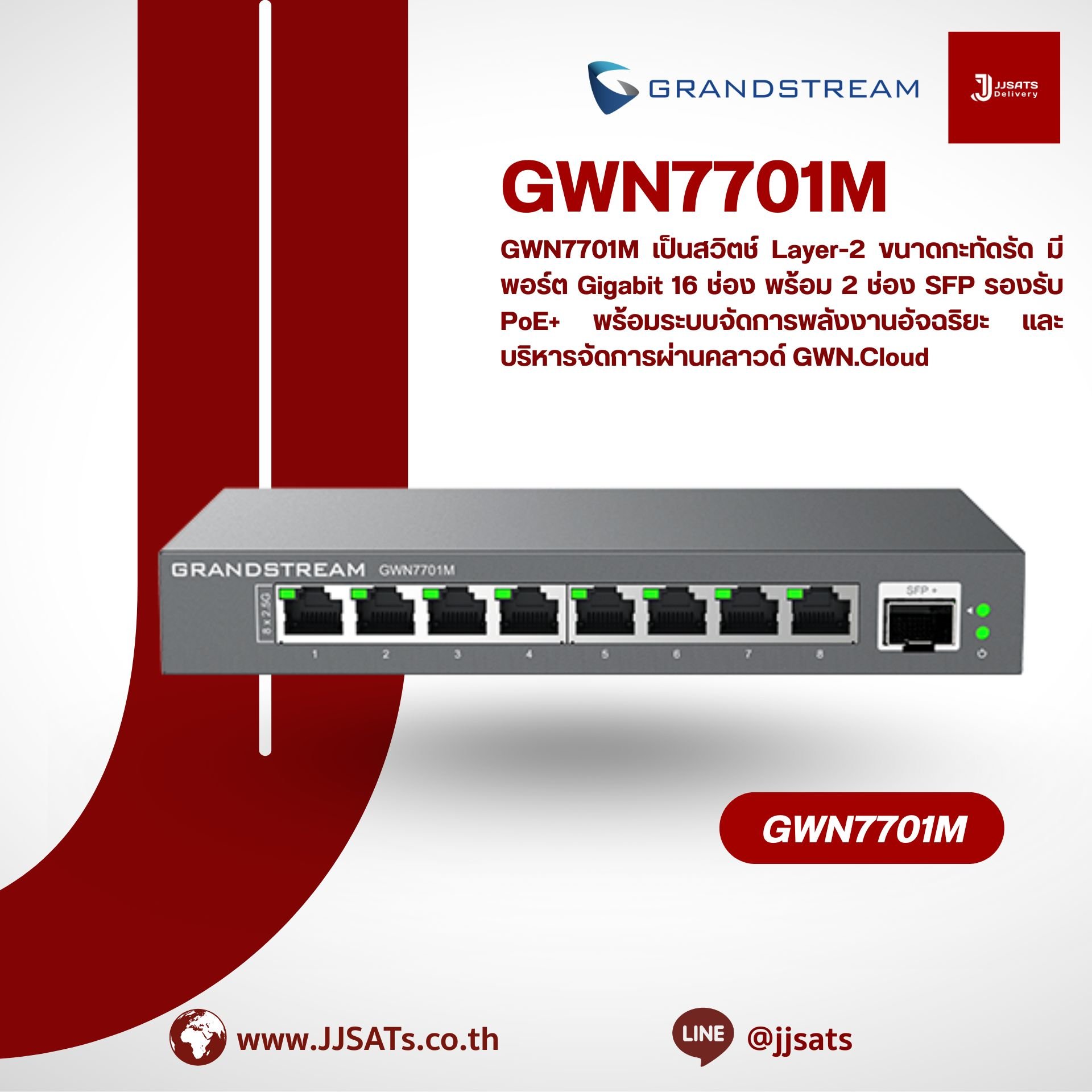

Grandstream GWN7701M Unmanaged 8-Port Multi-Gigabit Network Switch
The GWN7700M series are unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses. These 6 and 9-port multi-Gigabit switches support fast Ethernet, 1-Gigabit and 2.5-Gigabit network speeds while including 1 SFP+ Gigabit fiber port that provides 1-Gigabit or 10-Gigabit high-speed uplink connectivity to your network. The GWN7701M requires no configuration or installation, is desktop and wall-mountable, and provides auto MDI/MDIX to eliminate the need for crossover cables. It supports auto negotiation on each port to recognize the speeds of 100/1000/2500Mbps network devices and intelligently adjust for compatibility and optimal performance. The plug-and-play GWN7701M is the ideal unmanaged network switch for home offices and SMBs needing high-speed multi-Gigabit connectivity.
| Grandstream GWN7701M | |
| 2.5 Gigabit Ports | 8 |
| PoE Ports | N/A |
| Enclosure | Metal |
| Mounting | Desktop / Wall-Mount |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.1p, 802.1x, 802.3ae, 802.3aq, 802.3af, 802.3at |
| Port Features | 8× 100/1000/2500Mbps RJ45 Ports 1× SFP+ Fiber Port AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 2.5GBase-T / 1000Base-T / 100Base-TX / 10Base-Te |
| LED Indicators | Link/Activity (Green), Power (Green) |
| MAC Address Table | 4K |
| Switching Capacity | 60Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | MAC Auto-Learning & Aging, IEEE 802.3x Flow Control, 802.3az, 802.1p/DSCP QoS, IGMP Fast-Leave/Snoop |
| Power Adapter | External 12VDC/1A |
| Max Power Consumption | 9.7W |
| Environmental | Operating: 0~40°C, Storage: -20~60°C Humidity: 1090% Non-condensing |
| Dimensions (L x W x H) | Unit: 190 x 100 x 28mm Package: 300 x 130 x 53mm |
| Weight | Unit: 0.52KG Package: 0.77KG |
| Package Contents | 1x Switch, 1x Power Adapter, 1x QIG |
| Compliance | FCC, CE, RCM, IC |
