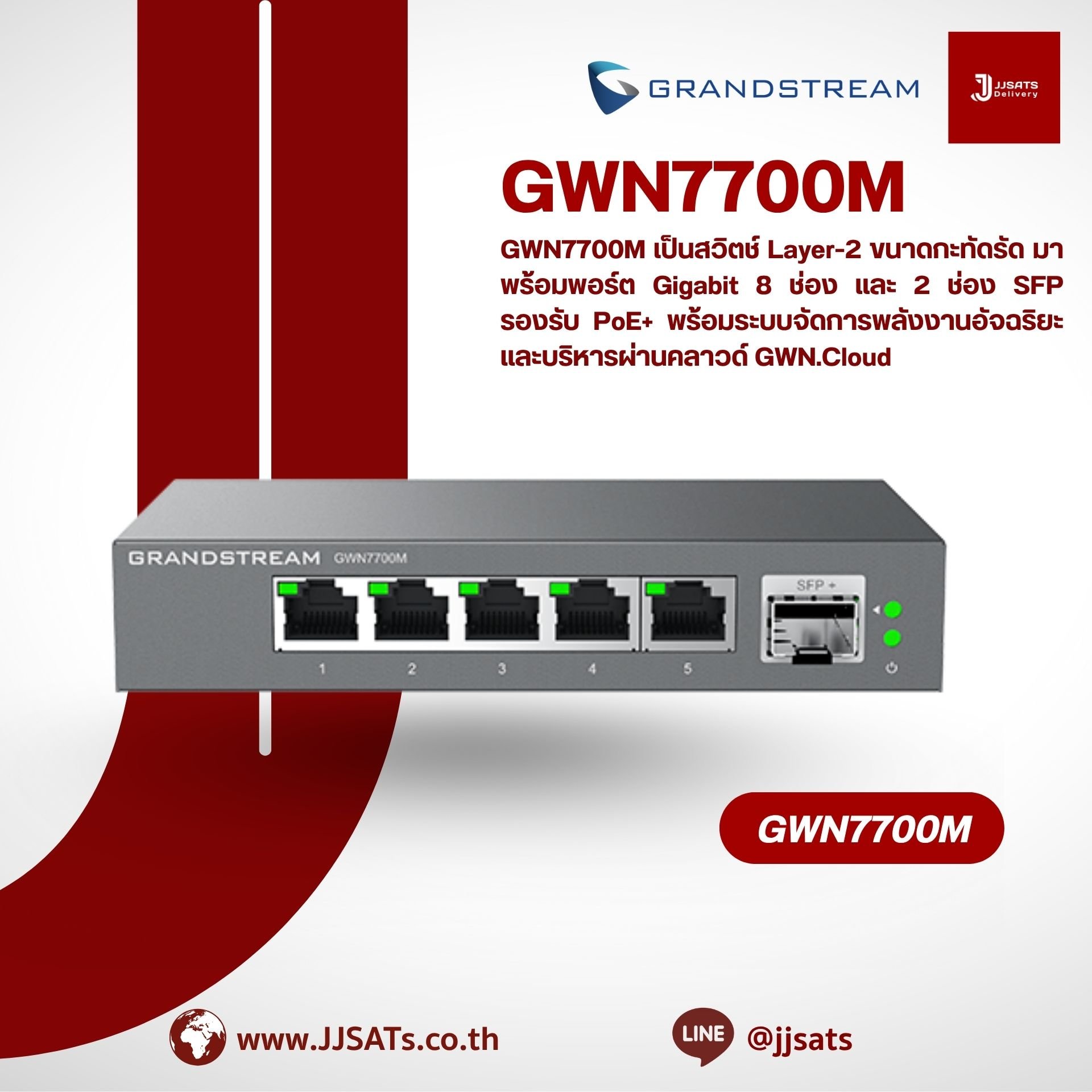

SKU : GWN7700M
Categories : Network Infrastructure , Network Switch ,
Brand : Grandstream
Share
Unmanaged Multi-Gigabit Network Switches
The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses
| Grandstream GWN7700M | |
| 2.5 Gigabit Ports | 5 |
| PoE Ports | N/A |
| Enclosure | Metal |
| Mounting | Desktop / Wall-Mount |
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.1p, 802.1x, 802.3ae, 802.3aq, 802.3af, 802.3at |
| Port Features | 5× 100/1000/2500Mbps RJ45 Ports, 1× SFP+ Fiber Port, Auto Negotiation, Auto MDI/MDIX |
| Network Media | 2.5GBase-T / 1000Base-T / 100Base-TX / 10Base-Te, Half/Full-Duplex |
| LED Indicators | Per port: Link/Activity (Green), Per device: Power (Green) |
| MAC Address Table | 4K |
| Switching Capacity | 45Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | MAC Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, Energy Efficient Ethernet, QoS, IGMP |
| Power Adapter | External 12VDC/1A |
| Max Power Consumption | 7.0W |
| Environmental | Operating Temp: 0 to 40 °C, Storage Temp: -20 to 60 °C Operating Humidity: 1090% non-condensing |
| Dimensions | Unit: 145 x 80 x 27mm Package: 255 x 110 x 53mm |
| Weight | Unit: 0.3KG, Package: 0.52KG |
| Package Contents | 1x Switch, 1x Power Adapter, 1x QIG |
| Compliance | FCC, CE, RCM, IC |
