New

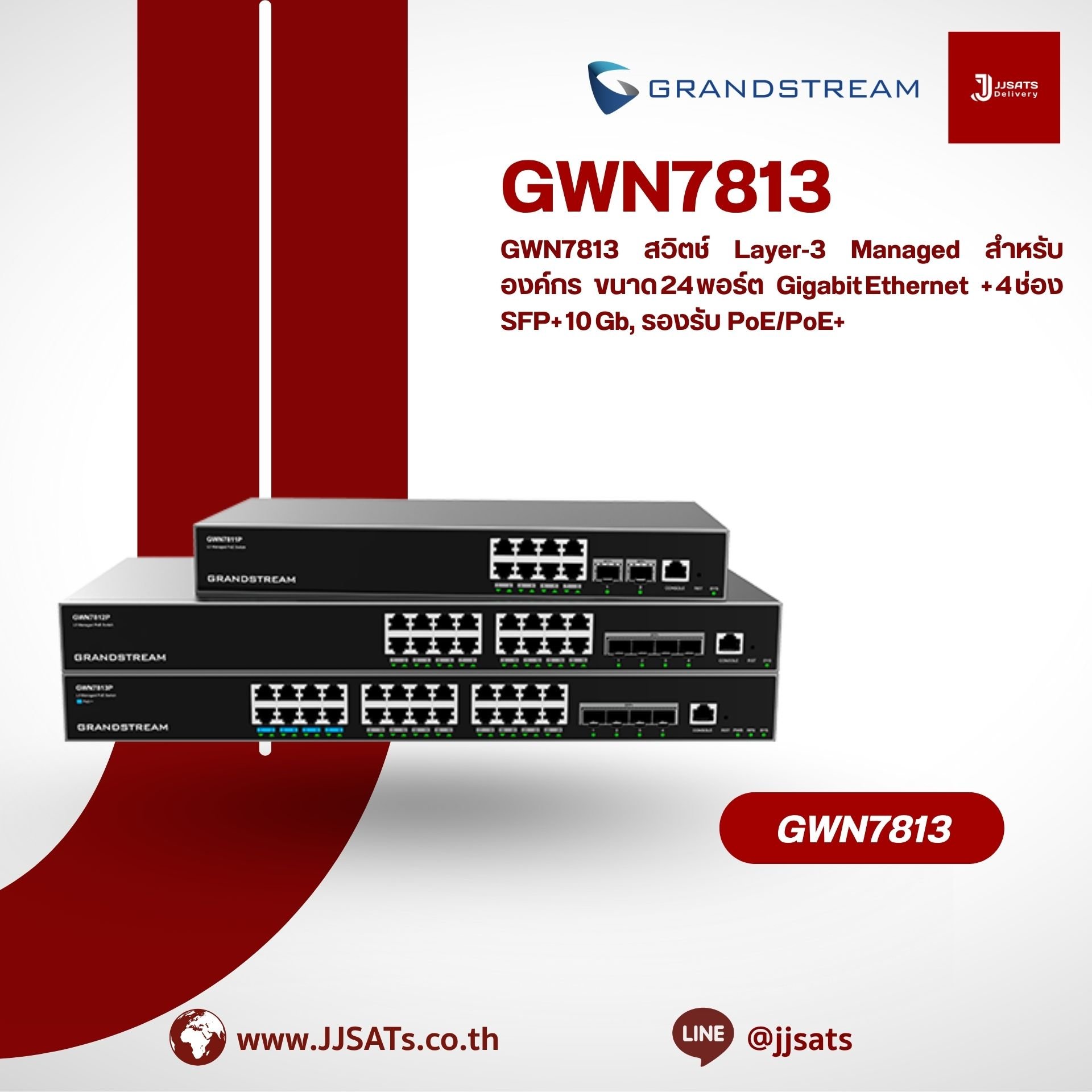

GWN7813 – Grandstream Layer 3 Managed Switch

Name: GWN7813 – Grandstream Layer 3 Managed Switch
Brand: Grandstream
SKU: GWN7813
Availability: InStock

Attribute:

SKU : GWN7813

Add to wishlist

Compare

24 Gigabit Ethernet ports and 4 10Gigabit SFP+ ports
Smart power control with dynamic PoE/PoE+ allocation
GWN7813: Non-PoE, GWN7813P: Supports IEEE 802.3af/at/bt PoE standard
Maximum PoE++ 60W output (Ports 1-8), 30W for other ports
Total PoE budget up to 370W
Supports IPv4 and IPv6 network deployment
Comprehensive security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP snooping
Embedded controller to manage the switch locally
Supports Grandstream GDMS Cloud and GWN Manager for remote management
Built-in QoS with prioritization for latency-sensitive traffic
14 Link Aggregation groups supported
Supports 10G modules: SM-10G, MM-10G, RJ45-10G (interval insertion for RJ45 modules required)
1 Console port for configuration
Supports external redundant power supply (RPS): 12V/5A (60W) or 54V (300W)
Surge Protection: ±6KV CM/DM (power), ±4KV CM (network ports)

Grandstream GWN7813P
Network Protocols	IPv4, IPv6, IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s, 802.3az, 802.3ad, 802.3AB, 802.1D, 802.1x
PoE Standards	IEEE 802.3af/at/bt
Gigabit Ethernet Ports	24
10Gigabit SFP+ Ports	4 (Supports DAC cable 5m)
Maximum no. of Supported Modules	SM-10G: 4, MM-10G: 4, RJ45-10G: 2 (RJ45-10G modules must be interval inserted)
Console	1
# of PoE Ports	24
Link Aggregation	14
External Redundant Power Supply (RPS)	54V (300W)
Max Output Power per PoE Port	60W (Ports 18, PoE++), 30W (Ports 924)
Max Total PoE Output Power	370W
Surge Protection	±6KV CM and DM for power, ±4KV CM for network ports
