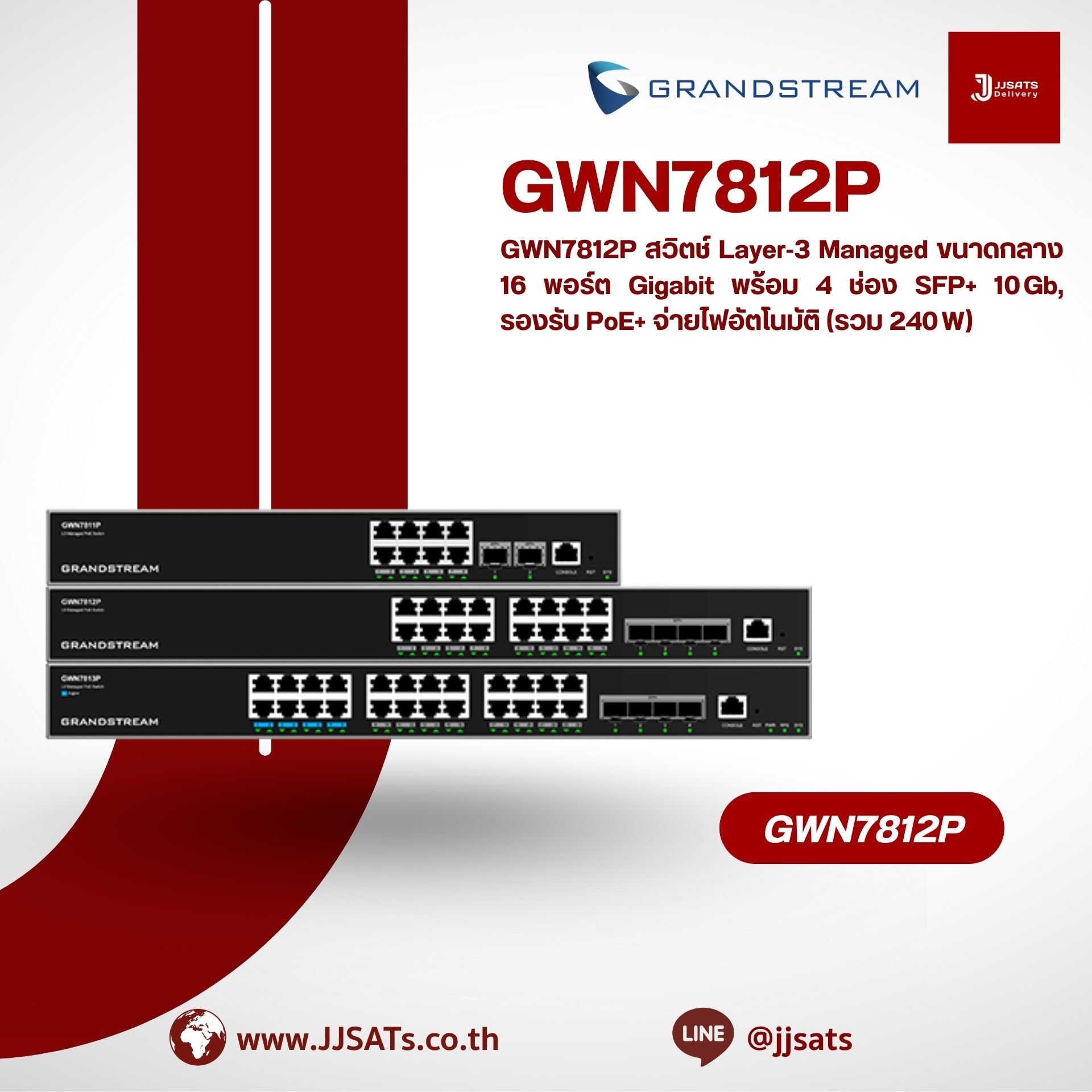

GWN7812P – Grandstream Layer 3 Managed PoE Switch

Name: GWN7812P – Grandstream Layer 3 Managed PoE Switch
Brand: Grandstream
SKU: GWN7812P
Availability: InStock

Attribute:

SKU : GWN7812P

Add to wishlist

Compare

24 Gigabit Ethernet ports and 4 10Gigabit SFP+ ports
Smart power control with dynamic PoE/PoE+ allocation
Supports IEEE 802.3af/at PoE standard
Maximum 30W output per PoE port
Total PoE budget up to 240W
Supports IPv4 and IPv6 network deployment
Comprehensive security: ARP Inspection, IP Source Guard, DoS protection, port security, DHCP snooping
Embedded controller to manage the switch locally
Supports Grandstream GDMS Cloud and GWN Manager for remote management
Built-in QoS with prioritization for latency-sensitive traffic
5 Link Aggregation groups supported
Supports 10G modules: SM-10G, MM-10G, RJ45-10G (interval insertion for RJ45 modules required)
1 Console port for configuration
Surge Protection: ±6KV CM/DM (power), ±4KV CM (network ports)

Grandstream GWN7812P
Network Protocols	IPv4, IPv6, IEEE 802.3, 802.3i, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.1p, 802.1Q, 802.1w, 802.1d, 802.1s, 802.3az, 802.3ad, 802.3AB, 802.1D, 802.1x
PoE Standards	IEEE 802.3af/at
Gigabit Ethernet Ports	24
10Gigabit SFP+ Ports	4 (Supports DAC cable 5m)
Supported Modules	SM-10G: 4, MM-10G: 4, RJ45-10G: 2 (interval insertion required)
Console Port	1
Number of PoE Ports	24
Link Aggregation	14
External Redundant Power Supply (RPS)	/
Max Output Power per PoE Port	30W
Max Total PoE Output Power	240W
Surge Protection	±6KV CM and DM for power, ±4KV CM for network ports
