SKU : ACE 4S-2T
Brand : ACE
Share

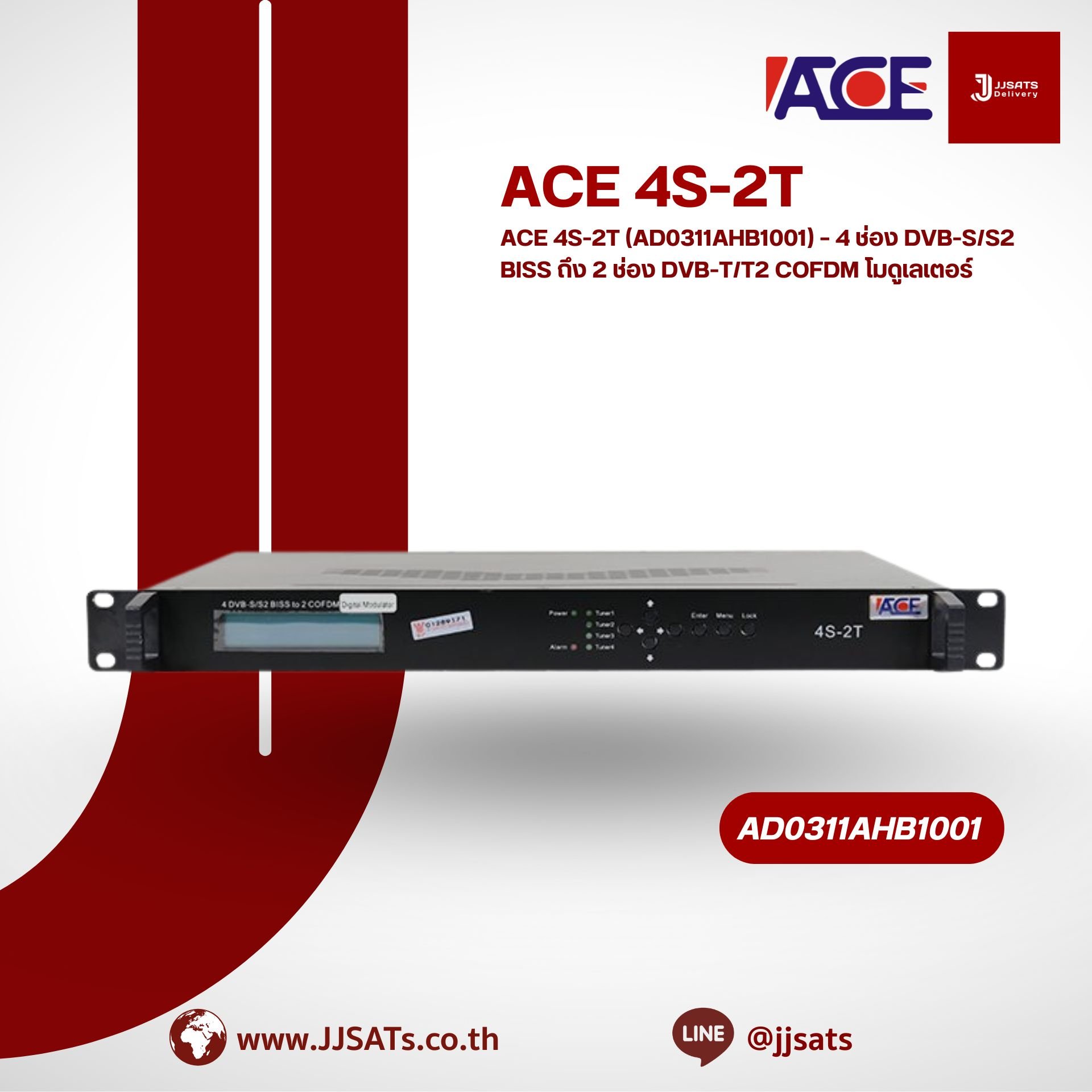

4S-2T 4 DVB-S/S2 BISS to 2 COFDM Modulator is a cost-effective DVB-T Trans modulator developed according to DVB-T standard. It supports 4 Tuner input selecting from 4 Tuner ports. After demodulating, re-multiplexing, then it gives 1 or 2 DVB-T RF out. BISS function is also embedded to descramble multiplexed programs. With the features of low cost and high performance, it provides various solutions for operators to re-distribute contents.
| ACE 4S - 2T | |
| CODE | 4S - 2T |
| Input | 4 Tuner input (4 DVB-S/S2 BISS Digital Tuner 2 COFDM Modulator) |
| DVB-S/S2 inputs tuner | Frequency Input: 950~2150MHz Symbol rate: DVB-S: QPSK 2~45Mbauds; DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK |
| Multiplexing | • Maximum PID Remapping: 128 output per channel • PID Remapping • Accurate PCR adjusting • Generate PSI/SI table automatically Modulation |
| BISS Descrambling | Mode 1, Mode E (Up to 60Mbps) (descramble individual program) |
| DVB-T Modulator | Standard: EN300744 Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 FFT mode: 2K, 4K, 8K MER: ≥42dB Code Rate: 1/2, 2/3, 3/4, 5/6, 7/8 RF output: F typed, 75Ω impedance,1 RF out --- Option, 2 RF out --- Option RF Range: 30~999.999MHz, 1KHz step RF output level: -20~-5 dBm, 0.1db step RF Output Bitrate: Max 31.668Mbps per channel |
| Function System | • LCD/keyboard and web management • English language • Web software upgrading |
