SKU : ACE 8T4S-4T
Brand : ACE
Share

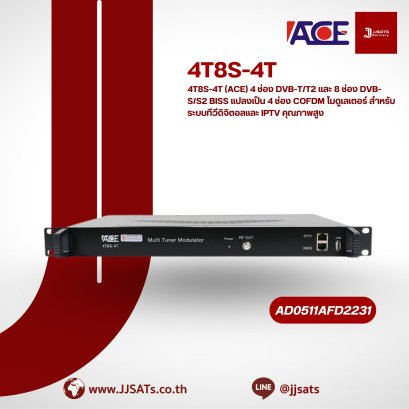

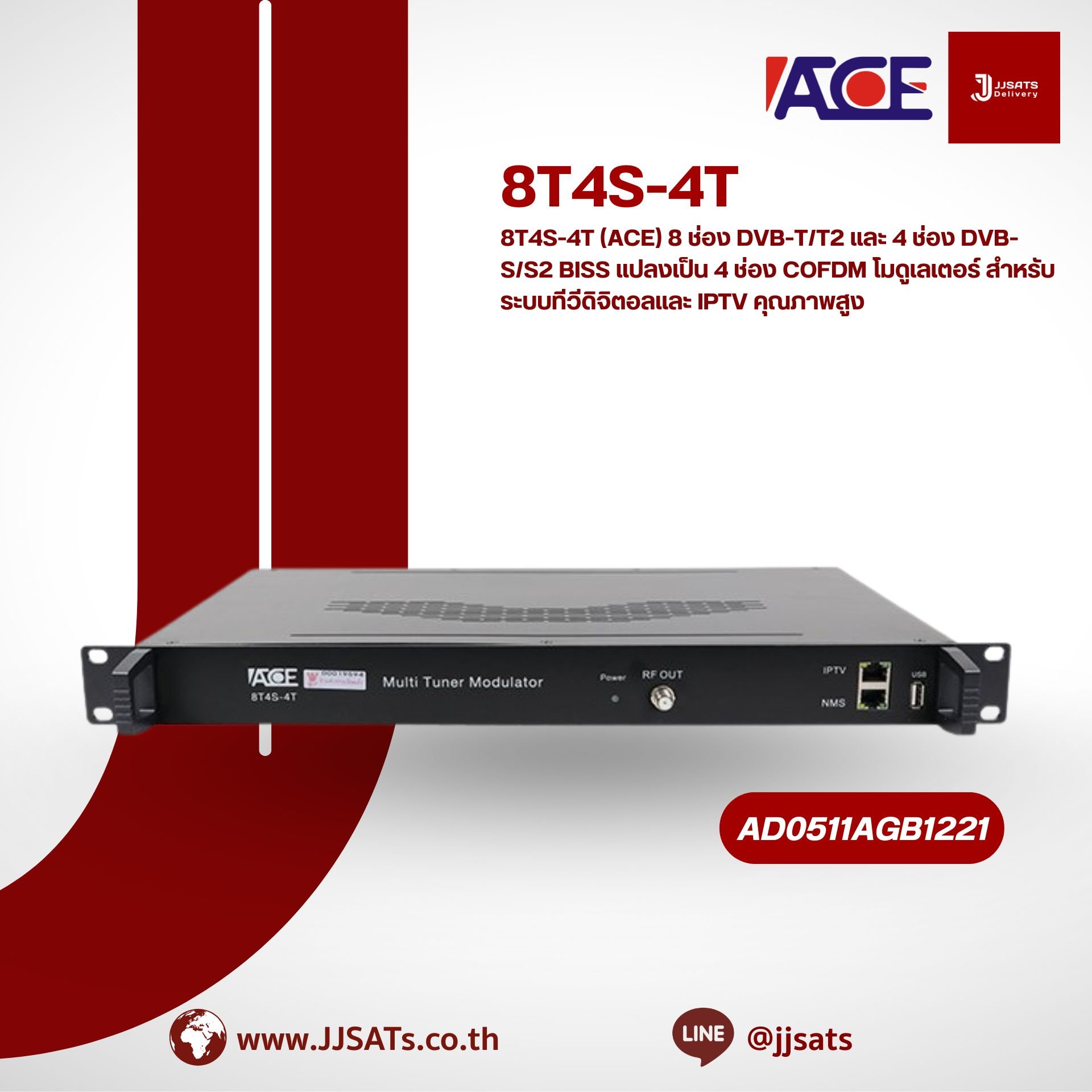

The ACE 8T4S-4T is a high performance and cost-effective DVB-T modulator designed Ithas8 DVB-T2 tuner inputs and 4 DVB-T tuner inputs, after multiplexing, scrambling and modulating process, then it gives 4 RF output. To meet customers’ various requirements, this device is also equipped with 128 IP input and 4 MPTS output over UDP and RTP. Its pluggable structure design greatly facilitates the change of modules as needed. Moreover, 8T4S-4T can support Biss descrambling (Optional) and can be upgraded and controlled through network system, which allows it to be widely used in setting up digital broadcasting network and provide good signals for scientific laboratory and DVB-T STB.
| ACE 8T4S - 4T | |
| CODE | 8T4S - 4T |
| Input | • 8 DVB-T/T2 & 4 DVB-S/S2 BISS Tuner inputs • 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45, 1000M/100M Unicast/Multicast |
| DVB-S inputs tuner | Frequency Input: 950~2150MHz Symbol rate: 2~45Msps Signal Strength: -65~-25dBm FEC: 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| DVB-S2 inputs tuner | Frequency Input: 950~2150MHz Symbol rate: QPSK 1~45 Mbauds, 8PSK:2~30Mbauds Code rate: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 Constellation: QPSK, 8PSK Max input bitrate: ≤129 Mbps |
| DVB-T inputs tuner | Frequency Input: 30~999.999MHz Bandwidth: 6M / 7M / 8M |
| Multiplexing | • Maximum PID Remapping: 256 output per channel • PID Remapping • Accurate PCR adjusting • Generate PSI/SI table automatically Modulation |
| DVB-T Modulator | Standard: EN300744 FFT mode: 2K Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42dB RF frequency: 50~960MHz, 1KHz step RF output: 4xRF COFDM DVB-T Out (4 carriers combined output) RF output level: -28~ -3dbm, 0.1dB Step |
| Constellation | 64/ 256 QAM |
| Bandwidth | 6M |
| Function System | • Web NMS support • English and Chinese language • 4xMPTS over UDP and RTP out (RJ45, 1000M/100M, Unicast/Multicast) • Web and USB software upgrading |
| Dimension(W×L×H) | 482×300×44.5 mm. |
| Weight | 3.7 Kg |
