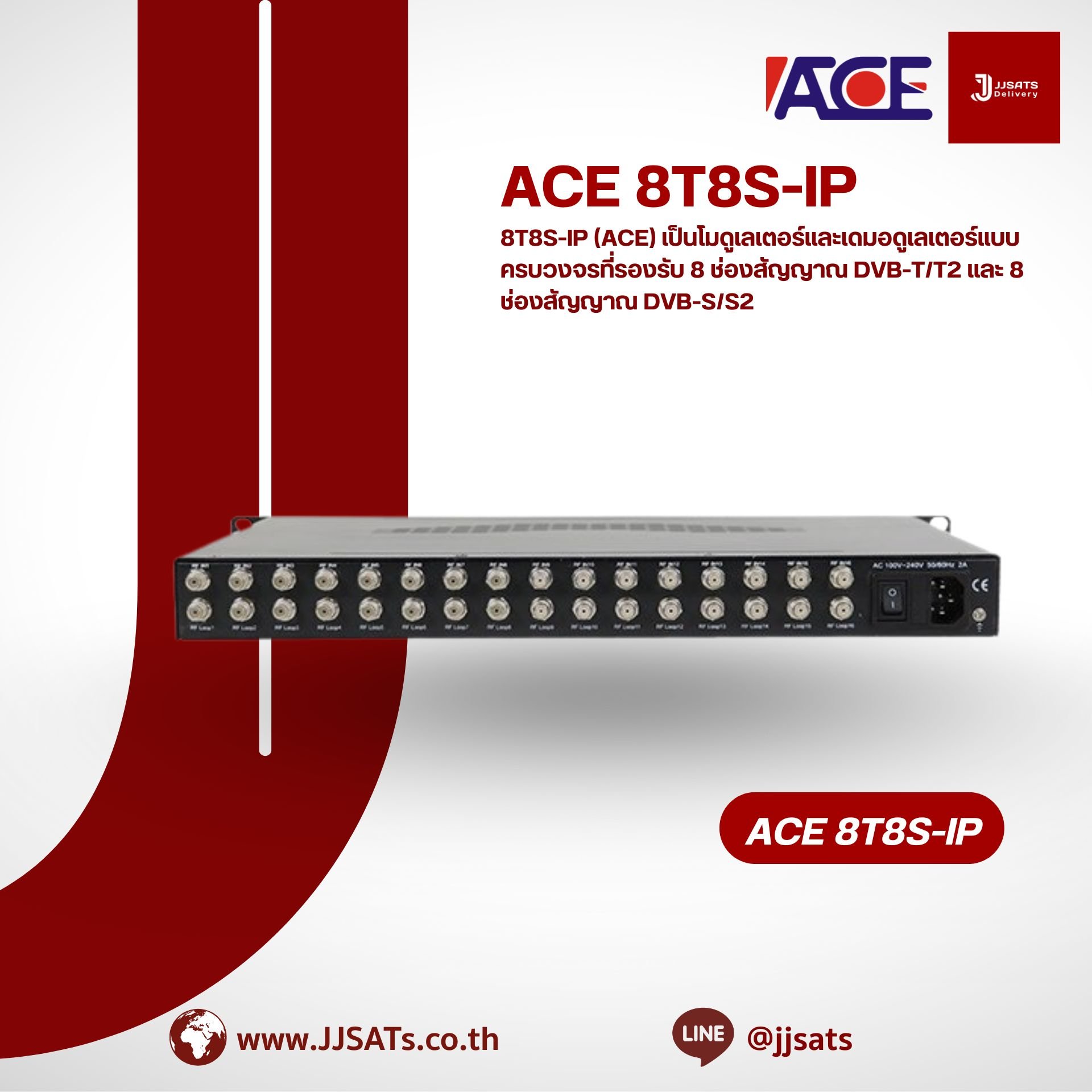

8T8S-8T 8 DVB-T/T2 & 8 DVB-S/S2 BISS to 8 COFDM Modulator is a high performance and cost-effective DVB-T modulator designed It has 8 DVB-T/T2 FTA tuner input and 8 DVB-S/S2 FTA tuner input, 8 groups multiplexing and 8 groups modulating, and supports maximum 512 IP input through GE1 and GE2 port and 8 IP (MPTS) output through GE1 port and 8 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with 2 ASI input ports. 8T8S-8T is also characterized with high integrated level, high performance and low cost. It supports dual power supply (optional). This is very adaptable to newly generation broadcasting system.
| ACE 8T8S - 8T | |
| CODE | 8T8S - 8T |
| Input | • 8 DVB-T/T2 inputs (F-Type Interface) • 8 DVB-S/S2 inputs (F-Type Interface) • 512 IP input through GE1 over UDP and RTP protocol |
| DVB-T/T2 inputs tuner | Frequency Input: 60~890MHz Bandwidth: 6M / 7M / 8M |
| DVB-S inputs tuner | Frequency Input: 950~2150MHz Symbol rate: 0.5~45Msps Signal Strength: -65~-25dBm FEC: 1/2, 2/3, 3/4, 5/6, 7/8 Constellation: QPSK Max input bitrate: ≤129 Mbps |
| DVB-S2 inputs tuner | Frequency Input: 950~2150MHz Symbol rate: QPSK/8PSK /16APSK: 0.5~45 Msps, 32APSK:0.5~40Msps; FEC: [QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10] [8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10] [16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10] [32APSK: 3/4, 4/5, 5/6, 8/9, 9/10] Constellation: QPSK, 8PSK, 16APSK, 32APSK Max input bitrate: ≤129 Mbps |
| BISS descrambling | Mode 1, Mode E (Up to 850Mbps) descramble individual program |
| Multiplexing | • Maximum PID Remapping: 360 output per channel • PID Remapping • Accurate PCR adjusting • Generate PSI/SI table automatically |
| DVB-T Modulator | Standard: EN300744 RF output: 1xRF 8 COFDM DVB-T Output total bandwidth limitation 40M (8 carriers combined output) FFT mode: 2K Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM Guard Interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42dB RF frequency: 50~960MHz, 1KHz step RF output level: -28~ -3dbm, 0.1dB Step |
| Stream output | • RF Output (F-Type Interface) • 4xMPTS over UDP and RTP out , RJ45, 1000M/100M, Unicast/Multicast |
| Function System | • Web-based NMS support (English language) • Ethernet software upgrading |
| Dimension(W×L×H) | 482×300×44.5 mm. |
