SKU : ACE 16T-IP
Categories : Hotel/Hospital IPTV System , Head End for IPTV System ,
Brand : ACE
Share

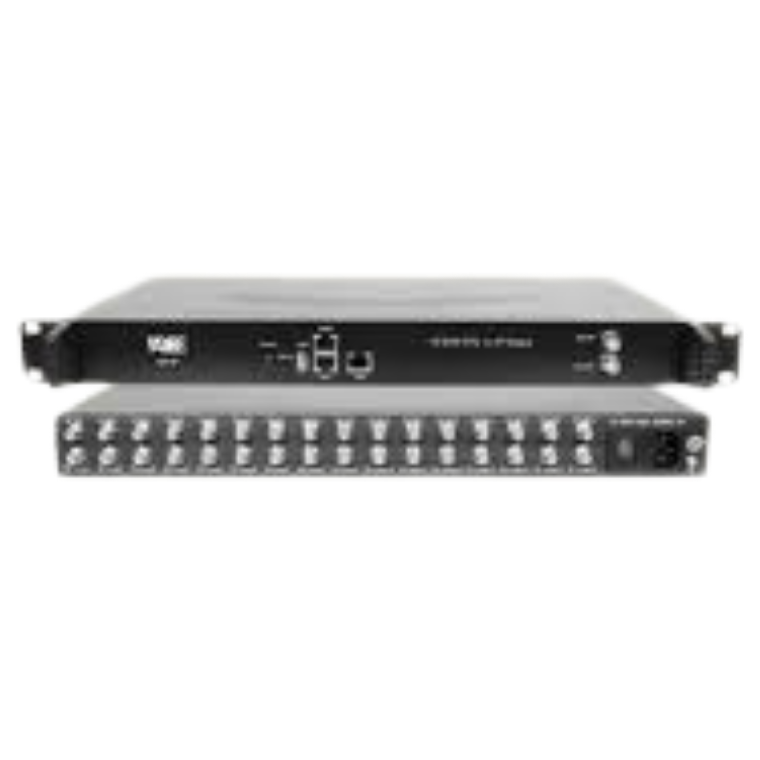

The ACE 16T-IP is a head-end interface conversion device which supports MPTS and SPTS output switchable. It supports 16 MPTS or 512 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 16 tuners DVB-T/T2 into IP package, or directly convert the TS from ASI input and tuner into IP package, then output the IP package through different IP address and ports.
| ACE 16T - IP | |
| CODE | 16T - IP |
| INPUT | 16 DVB-T/T2 Tuners input |
| OUTPUT | • 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast • 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast |
| Tuner Section | FreQuency: 30MHz ~999.999 MHz; Bandwidth: 6M,7M, 8M |
| Multiplexing | • 256 per input channel • PID remapping ( automatically or manually) • Accurate PCR adjusting • Generate PSI/ SI table automatically |
| Dimension(W×L×H) | 482×410×44 mm. |
| Weight | 3.6 Kg. |
