EAP615GP-Wall – Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Name: EAP615GP-Wall – Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
Brand: Tp-link
SKU: EAP615GP-Wall
Availability: InStock

Attribute:

SKU : EAP615GP-Wall

Add to wishlist

Compare

Categories : GPON FTTx/FTTr ,

Brand : Tp-link

Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point

Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz†
1× GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming§
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
Easy Use: One-Click Pairing and Automatic Adoption
Smart O&M: PPSK and Multiple Portals§
Centralized Management: Integrates with the Unified Optical Solution
Wall-Mounted, AC Powered

HARDWARE FEATURES

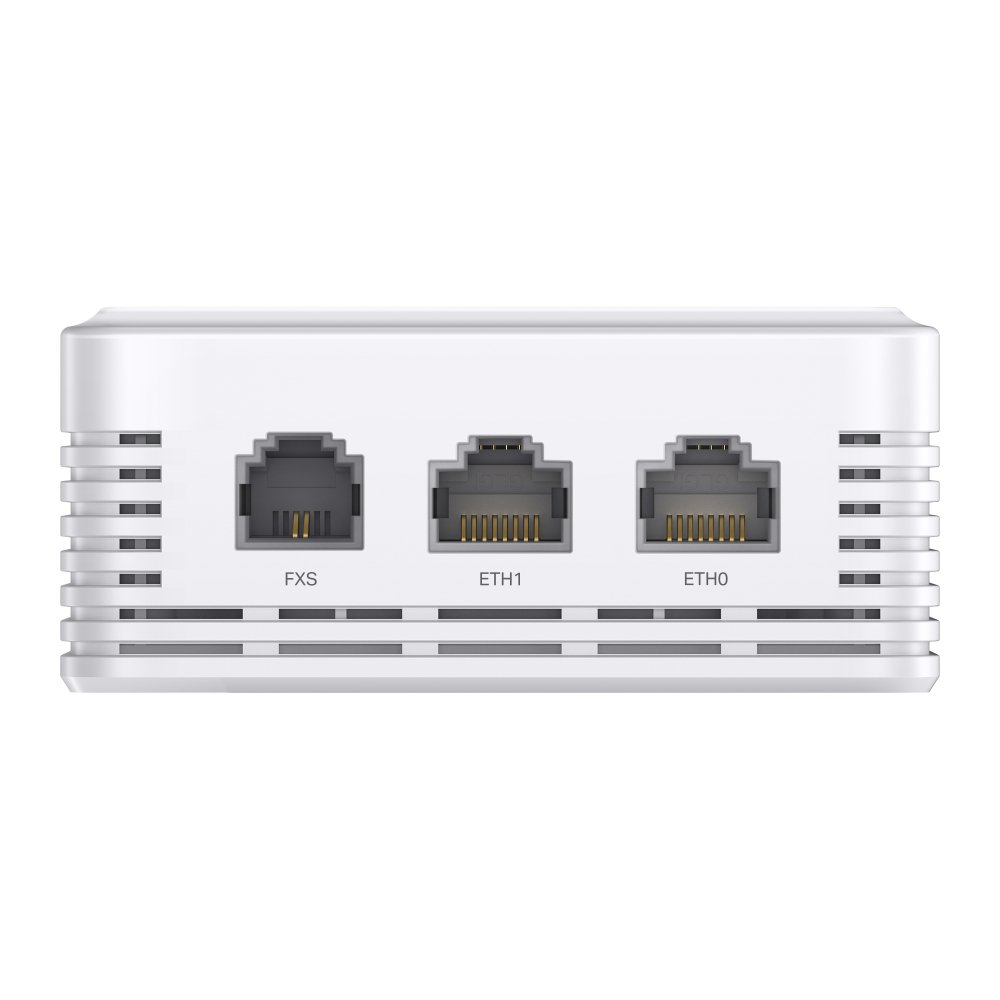

Interface	• 1x GPON Port • 1x FXS Port • 2x Gigabit RJ45 Ports
GPON Interface	• Port Type: SC-APC • Standards and Protocols: ITU-984.x, G.988, Class B+ • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) • Fiber Type: 9/125 um Single mode • Max. Cable Length: 20 km
Button	• Reset • LED
Power Supply	100–240V~ 50/60Hz, 0.5A
Max. Power Consumption	12.2 W
Weight	320g
Dimensions ( W x D x H )	5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm)
Antenna	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6.5 dBi

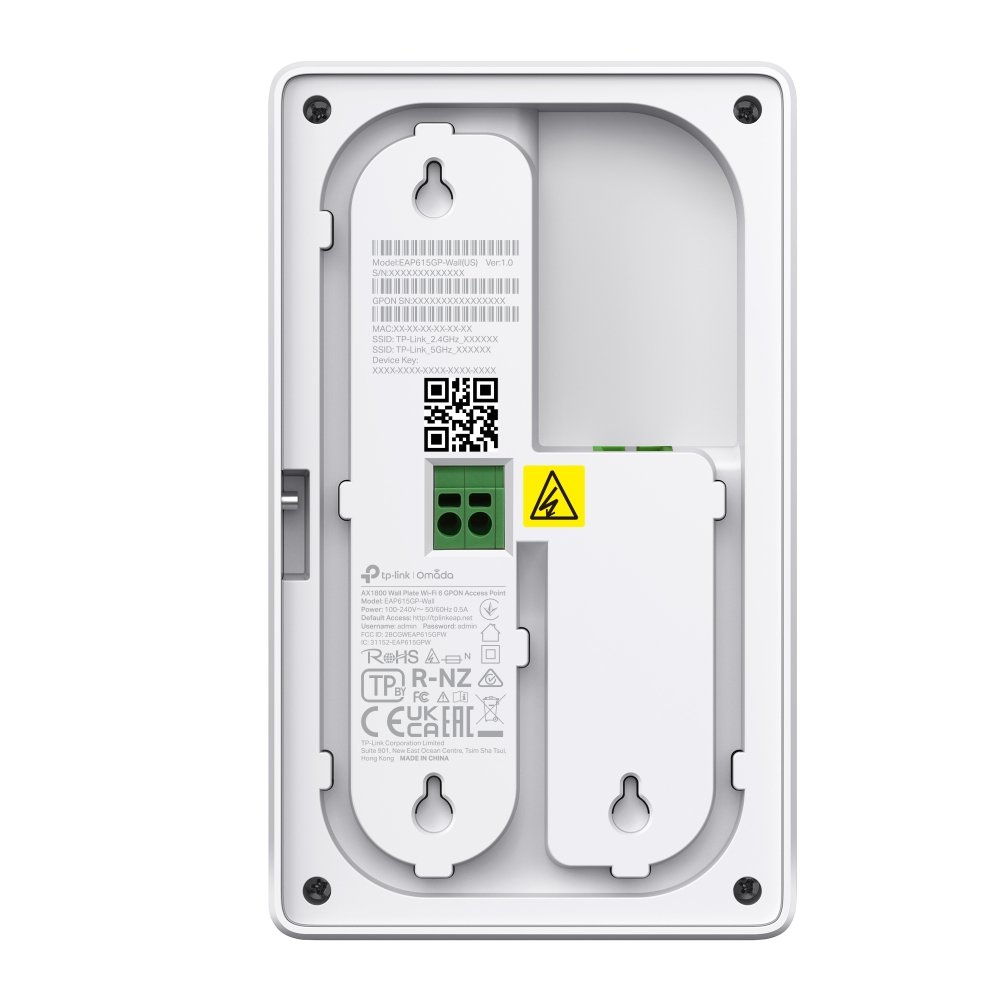

Mounting	Wall Mounting (Kits included)
