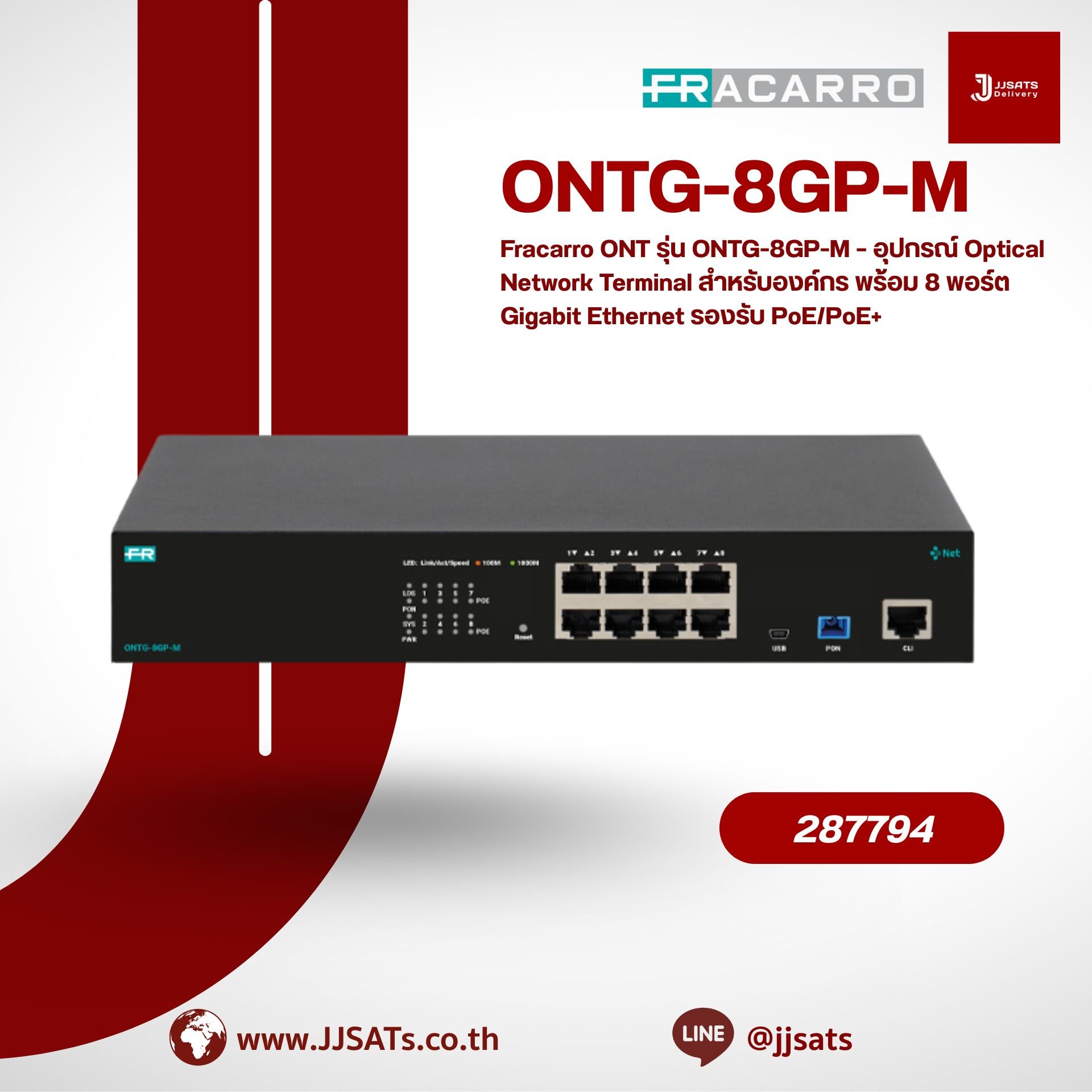

The ONTG-8GP-M optical receiver completes the range of the Fracarro ONT family, fitting into a business market segment thanks to greater versatility and the ability to support devices in the field that require power.
The 8 Giga Ethernet ports are in fact equipped with PoE/PoE+ functionality compatible with IEEE802.3ah capable of powering IP cameras, VoIP phones, access points, etc.
ONTG-8GP-M receiver meets FSAN ITU-T G.984.2 standard protocol, supports 1.25Gbps/2.5Gbps asymmetric uplink/downlink speed.
Technical chars
- XPON support
- PoE/PoE+
- Supports VLAN capabilities and IGMP multicast snooping - capabilities
- Network security: MAC address learning
- Smart O&M: WebUI / SNMP / CLI
- AES encryption and decryption
- Fanless and Noise-Free
- Auto MDI/MDI-X
| ONTG-8GP-M | ||
| Code | 287794 | |
| Management ports | 1 x RJ45 (console management) | |
| Optical section | ||
| Connector type | SC/UPC single-mode | V |
| PON ports | 1x GPON Optical Interface | °C |
| PON max. distance | 1.25Gbps (Uplink) / 2.5Gbps (Downlink) | °CMbps |
| Optical Sensitivity | Up to -28 (@1490nm) | |
| Wavelength | Rx: 1490 / Tx: 1310 | nm |
| Optical sensitivity | Up to -28 (@1490nm) | |
| Max. speed | 1.25Gbps (Uplink) / 2.5Gbps (Downlink) | |
| Optical saturation | -8 | dBm |
| DEthernet Section | ||
| LAN ports |
| |
| POE power budget | 56 | W |
