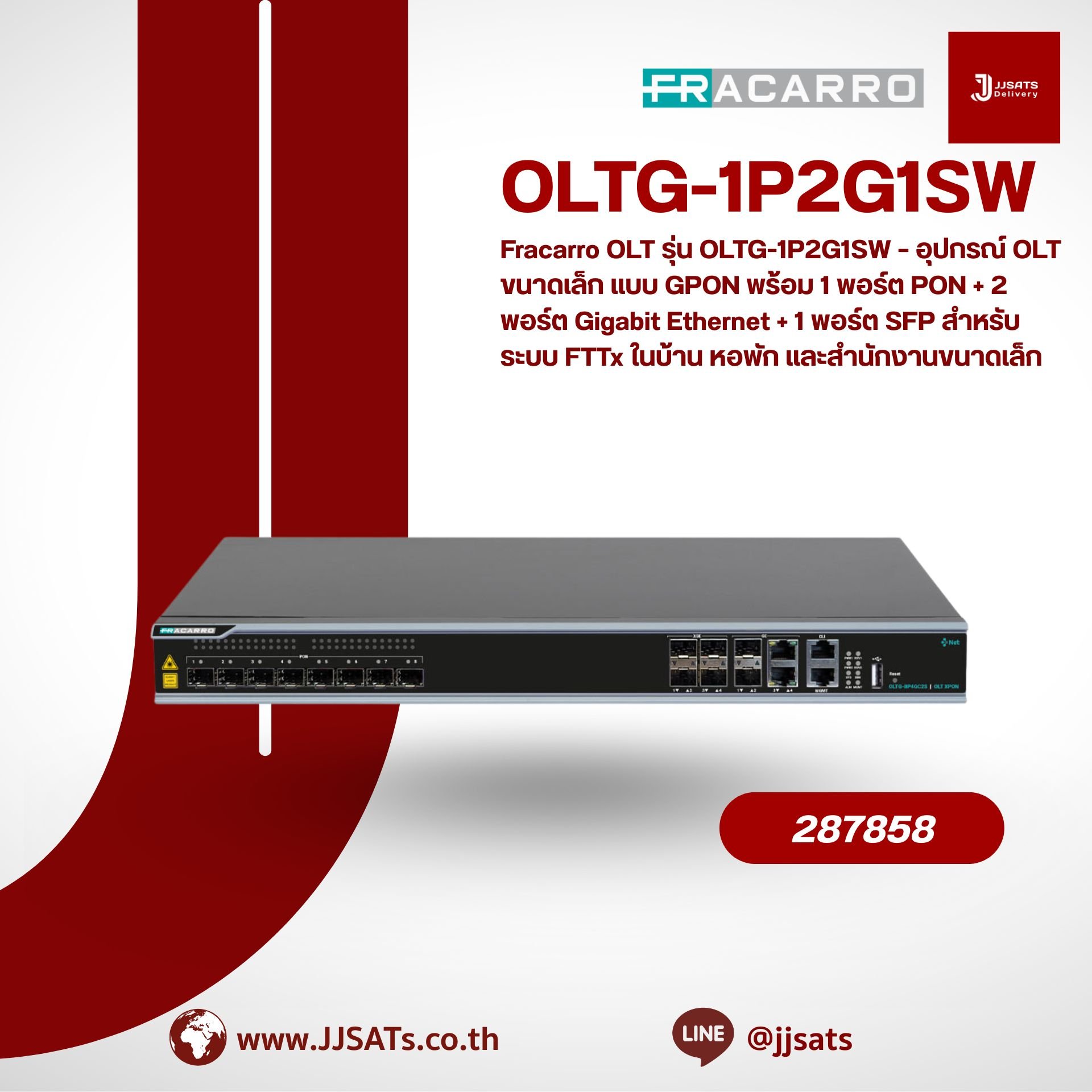

OLT transmitters
The OLT (Optical Line Terminal) OLTG-1P2G1SW optical terminal manage data distribution on 9/125 single-mode optical fiber and it can be installed in small and medium structures to support the development of three-in-one broadcast television network, FTTP (fiber to the premise), FTTO (fiber to the office) e FTTR (fiber to the room), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications.
Technical chars
1 PON port (SFP C++ included)
2x GE 10/100/1000M auto-negoziabile o 1x SFP+ 10GE
4096 VLAN
Backplane 27.75 Gbps
1U rack
PSU integrated
Display to view IP address, ONT number, etc.
| OLTG-1P2G1SW | |
| Code | 287858 |
| UPLINK port | 2x COMBO (10/100/1000M auto-negotiation or 2x SFP 1GE) and 4x SFP+ 10GE |
| Management ports | 1 x RJ45 (console management) and 1 USB port for backup, upgrade and log |
| Optical section | |
| Connector type | SFP Class C++ (SC/UPC connector) |
| PON ports | 1 |
| PON splitting | 1:128 (max 1:32 recommended in business market) |
| Wavelength | Tx: 1490 / Rx: 1310 |
| PON max. distance | 20 |
| Optical power | 1.5 to 5 dBm class B+; 3 to 7 dBm class C+ (@1490nm) |
| Optical saturation | -8 dBm Classe B+; -12 dBm Classe C+ (@1310nm) |
| Optical sensitivity | Up to -28dBm (classe B+), up to -30dBm (classe C+) |
| Optical saturation | -8 dBm Class B+; -12 dBm Class C+ (@1310nm) |
| Max. speed | 1.25 (Uplink) / 2.5 (Downlink) |
