SKU : 287560
Categories : Network Infrastructure , GPON FTTx/FTTr ,
Brand : FRACARRO
Share
SFP Series
SFP &Small Form Factor Pluggable'� modules are
compact, hot+pluggable transceiver devices Installed at
the OLT level, to guarantee connectivity towards the
ONTs and to guarantee the connection of Uplink

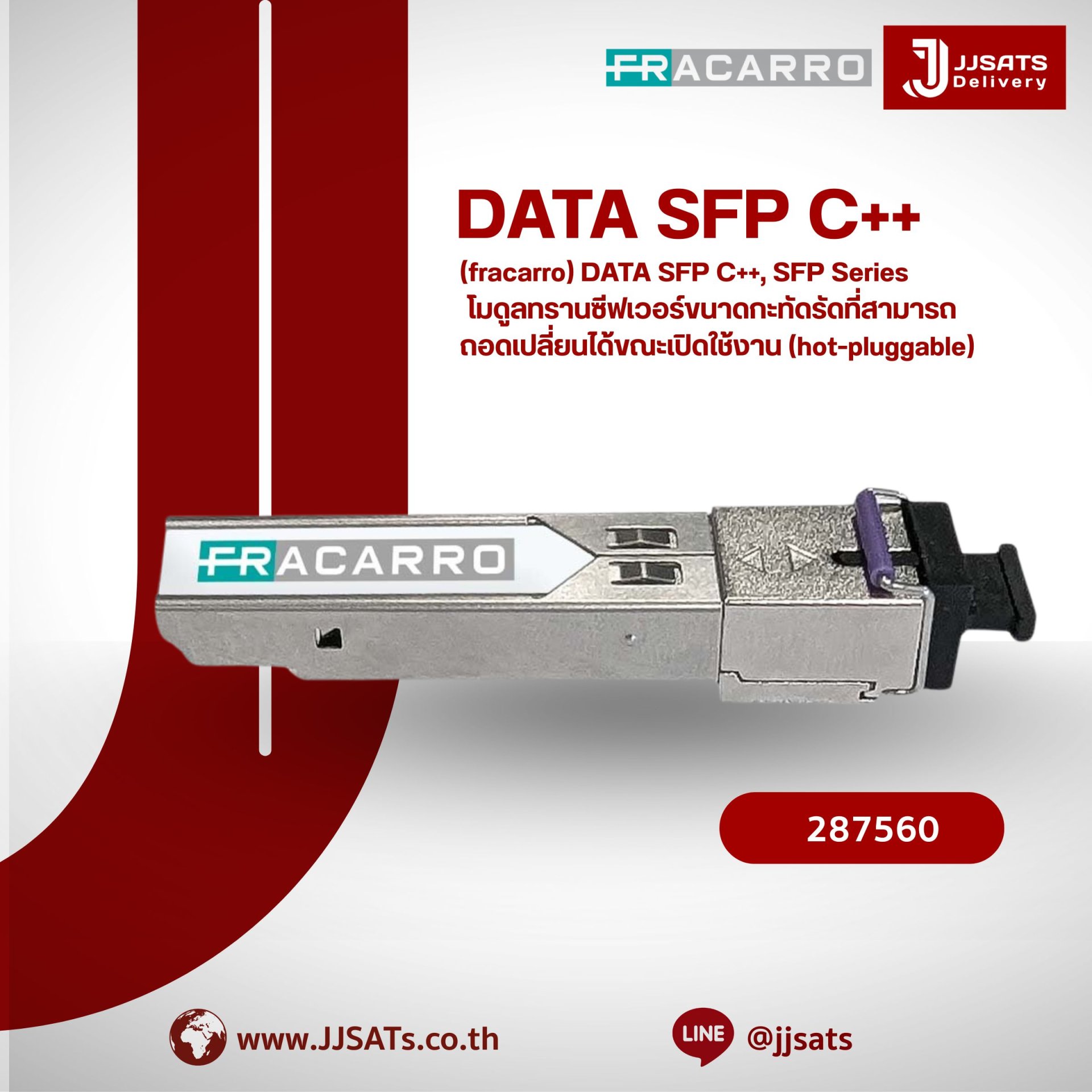

| Name | DATA SFP C++ |
|---|---|
| Code | 287560 |
| Connector | SC/UPC (Class C++) |
| Type of module | - |
| Maximum splitting | 1:128 |
| Wavelength | TX (Downlink): 1490 / RX (Uplink): 1310 |
| Maximum transmission speed | 1.244 (Uplink) / 2.488 (Downlink) Gbps |
| Maximum transmission distance | 20 Km |
| Optical power | 3 ÷ 7 dBm (@1490nm) |
| Optical saturation | -12 dBm (@1310nm) |
| Sensitivity of the optical receiver | up to -30 dBm (@1310nm) |
| General Features | |
| Supply voltage | 3.3 Vdc |
| Total supply current | 250 mA |
| Operating temperature | 0 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | 10 to 90 (without conditioning) |
| Weight | 35 g |
| Dimensions | 64 x 13.4 x 13.6 mm |
| Barcode | 8016978103997 |
| Packing | Single |
| Packing dimensions | 64 x 13.4 x 13.6 mm |
| Gross weight | 90 g |
