Optical Line Terminal DATA GPON 4 TX

Name: Optical Line Terminal DATA GPON 4 TX
Brand: FRACARRO
SKU: 287558 OLT
Availability: InStock

Attribute:

SKU : 287558 OLT

Add to wishlist

Compare

Categories : SMATV FTTx HFC Fracarro , Optical fibre FTTx GPON OLT/ONT(ONU) ,

Brand : FRACARRO

Fracarro DATA GPON 4 TX (287558) Optical Line Terminal (OLT) for data distribution over optical fibre. 4xPON, Uplink: 4xGE + 2xSFP 1GE, dual power slots. Management via SNMP, WEB, CLI, Telnet.

Technical characteristics:
Optical Line Terminal (OLT) for data distribution over optical fibre.

DATA GPON 4 TX
Code		287558
UPLINK port		4 x 10/100/1000M auto-negotiation, 2 x SFP 1GE/SFP+ 10GE
Management ports		1 x 10/100 Base-T (outband management port), 1 x RJ45 (console management)
Optical section
Connector type		SFP Class C++ (SC/UPC connector)
PON ports		4
PON splitting		1:128
Wavelength	nm	Tx: 1490 / Rx: 1310
PON max. distance	km	20
Optical power	dBm	3 to 7 (@1490nm)
Optical saturation		-12 (@1310nm)
Optical sensitivity		Up to -30 (@1310nm)
Optical saturation		-12 (@1310nm)
Max. speed		1.244 (Uplink) / 2.488 (Downlink)
Functionality
Layer 2 features		Up to 16k MAC Addresses Supports up to 4096 VLANs Supports VLAN ports and VLAN protocols VLAN Tag/Untag support, VLAN transparent transmission VLAN translation and QinQ support Port based storm control Supports port isolation Supports single port traffic limiting 802.1d and 802.1w support Static LACP support Port based QoS, VID, TOS and MAC address Access control list IEEE802.x flow control Statistical port stability monitoring
Layer 3 features		Layer 3 routing ARP proxy Static route 1024 hardware host routes 512 hardware subnet routes
Software functionality		IGMP snooping Up to 256 multicast groups DHCP server, DHCP relay, DHCP snooping Dynamic Band Allocation (DBA) Gemport traffic Compliance with the ITUT984.x standard Transmission distance up to 20km. Support data encryption, multicast, port VLAN, separation, RSTP, etc. Support ONT auto-discovery/link detection/software update remote Support for VLAN splitting and user separation to avoid a broadcast storm Power failure alarm to alert system operator Support for Broadcasting Storm functionality Support for isolation between different ports ACL and SNMP support for configuration and packet filtering data Designed to keep the system running and maintain system stability Support for RSTP, IGMP Proxy
Management
Option mode		Status, configuration and monitoring of ports Ventilation control Online configuration of ONT receivers User and alarm management
Management mode		SNMP, Telnet, CLI, Web interface, EMS
Specifications
Power supply voltage	Vdc/A	100-240/50-60
Current consumption	W	35
Operating temperature	°C	0 to +50
Storage temperature	°C	-40 to +85
Relative humidity	%	5 to 90 (without condensation)
Dimensions and packaging
Packing		Single
Pieces		1
EAN code		8016978103973
Packaging dimensions	mm	575 x 500 x 115
Product dimensions	mm	442 x 220 x 43.6
Packaging weight	kg	5.1
Net Weight	kg	2.8

Optical Line Terminal DATA GPON 4 TX

Attribute:

Related Product

Optical Line Terminal DATA GPON 8 TX

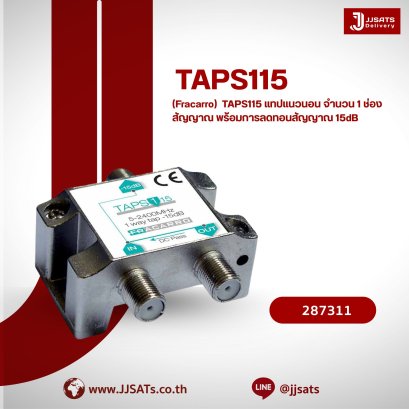

Fracarro model TAPS115, horizontal tap with 1 output

Fracarro TAPS110 – 1-output horizontal signal tap

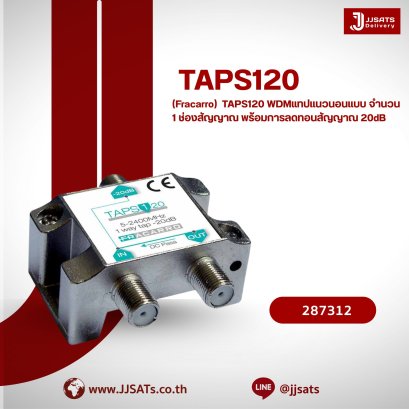

Fracarro model TAPS120, 1-output horizontal tap
