SKU : 270655 Receivers
Categories : Fracarro FTTx HFC Smatv , Optical fibre Receivers (Node) ,
Brand : FRACARRO
Share

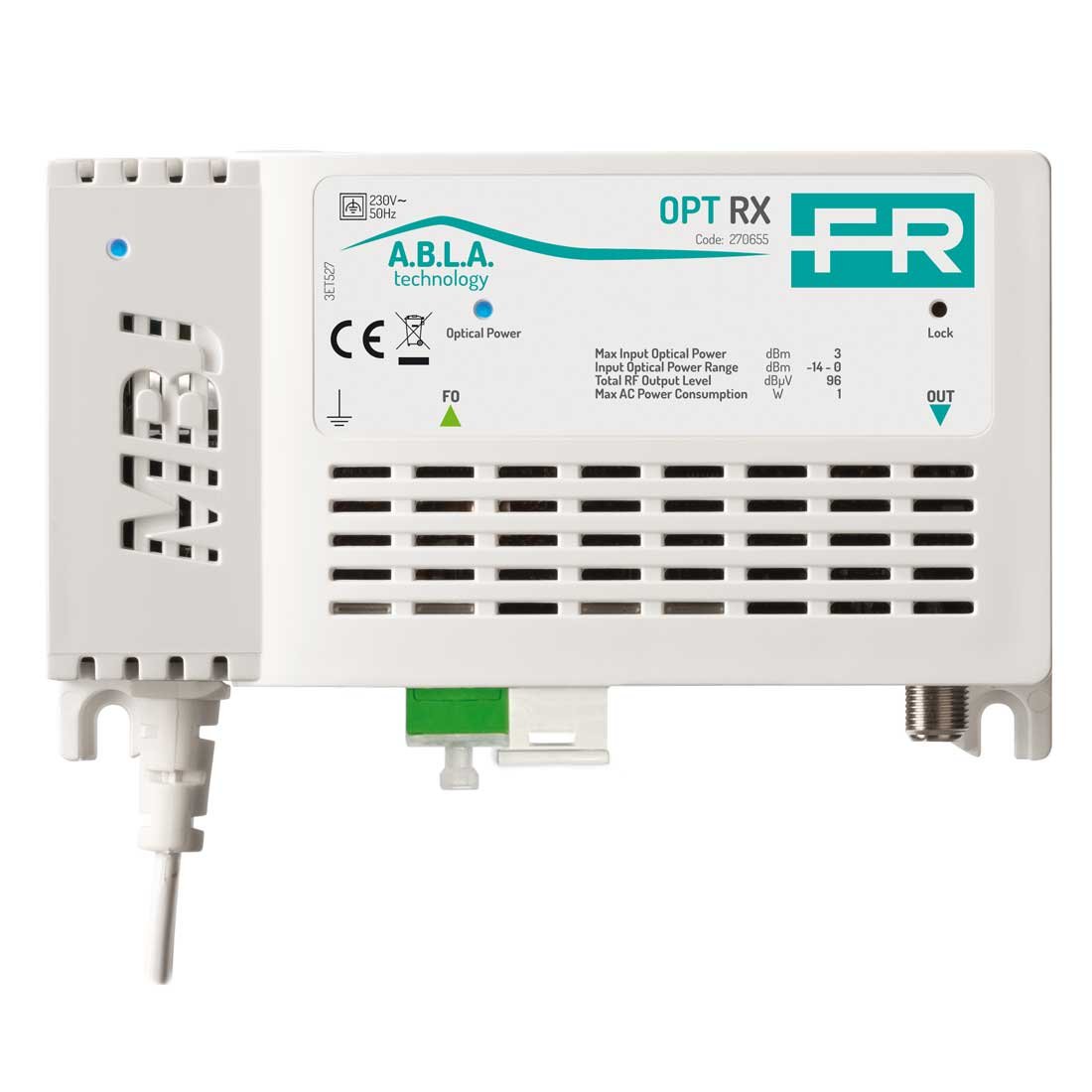

Fracarro OPT RX(270655) Receivers OPT-MBJ optical receiver with one wideband RF output for receiving TV+SAT signals distributed over a single fiber. Optical input range of 0 to -15dBm; optical window of operation 1270-1610nm. (dimensions 135x82x39mm)
Technical characteristics:
- OPT RX: Immediate indication of correct working conditions. Separate LEDs for received optical power and RFP presence|P Dedicated LEDs for monitoring optical input level status and RF presence
- A.B.L.A. Technology: this exclusive FRACARRO system maintains the correct optical level via special independent electronic circuits, even if the RF input level of each input changes
- Dedicated A.B.L.A. status LEDs
- Protective shell: OPT-MBJ optical transmitters and receivers are protected by an innovative protective shell made of flame retardant ABS material (Class V0)
- Broadband TV / SAT
- Suitable for standard DIN rail mounting (with quick release)
- Low power consumption
- Power supply status LED
- Quick and easy installation (Plug&Play)
- High shielding against electromagnetic interference
- Standard SC/APC connectors
OPT RX | ||
| Code | 270655 | |
| Optical input | ||
| Optical input connector | SC/APC | |
| Wavelength input | 1260-1650 | nm |
| Optical input power | ≤=0 (0 to -15) | dBm |
| RF output | ||
| Connectors type | F Female | |
| Return loss | -7 | dB |
| Outputs | 1 x (TV + SAT) | |
| Output level TV | ||
| 8dBmo 8 transponder | 82 @MUX | dBµV |
| Output level SAT | ||
| 8dBmo | 74 @TP | dBµV |
| Specifications | ||
| Power supply voltage | 184-264 / 50-60 | Vdc/A |
| Current consumption | 1.5 | W |
| LED | Optical power: optical level in correct range Lock: RF signal lock | |
| Operating temperature | -10 to +55 | °C |
| Conformity | CEI EN 50083-2 EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978103683 | |
| Packaging dimensions | 176 x 110 x 50 | mm |
| Product dimensions | 135 x 82 x 39 | mm |
| Packaging weight | 0.33 | kg |
