SKU : 270661 Receivers
Categories : SMATV FTTx HFC Fracarro , Optical fibre Receivers (Node) ,
Brand : FRACARRO
Share

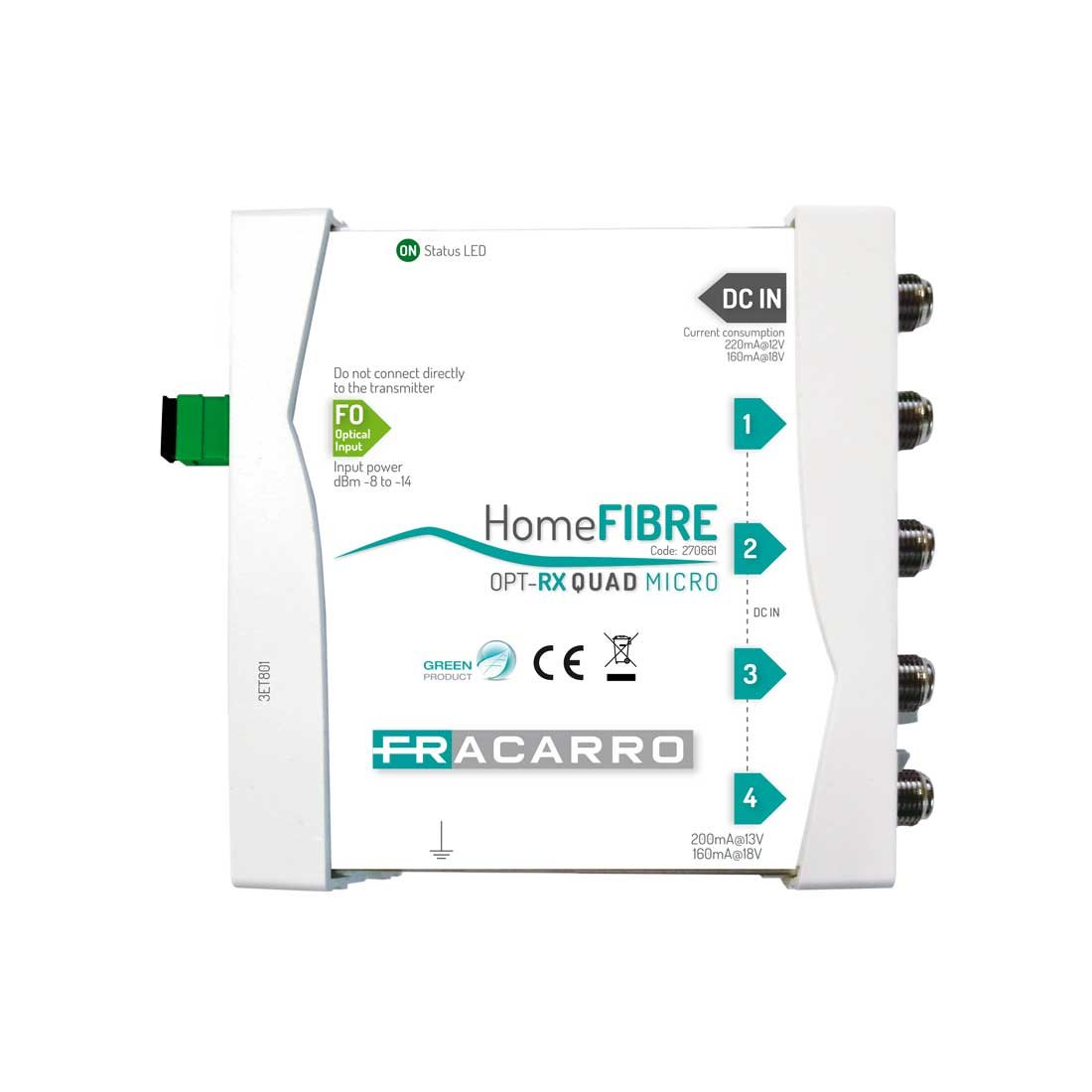

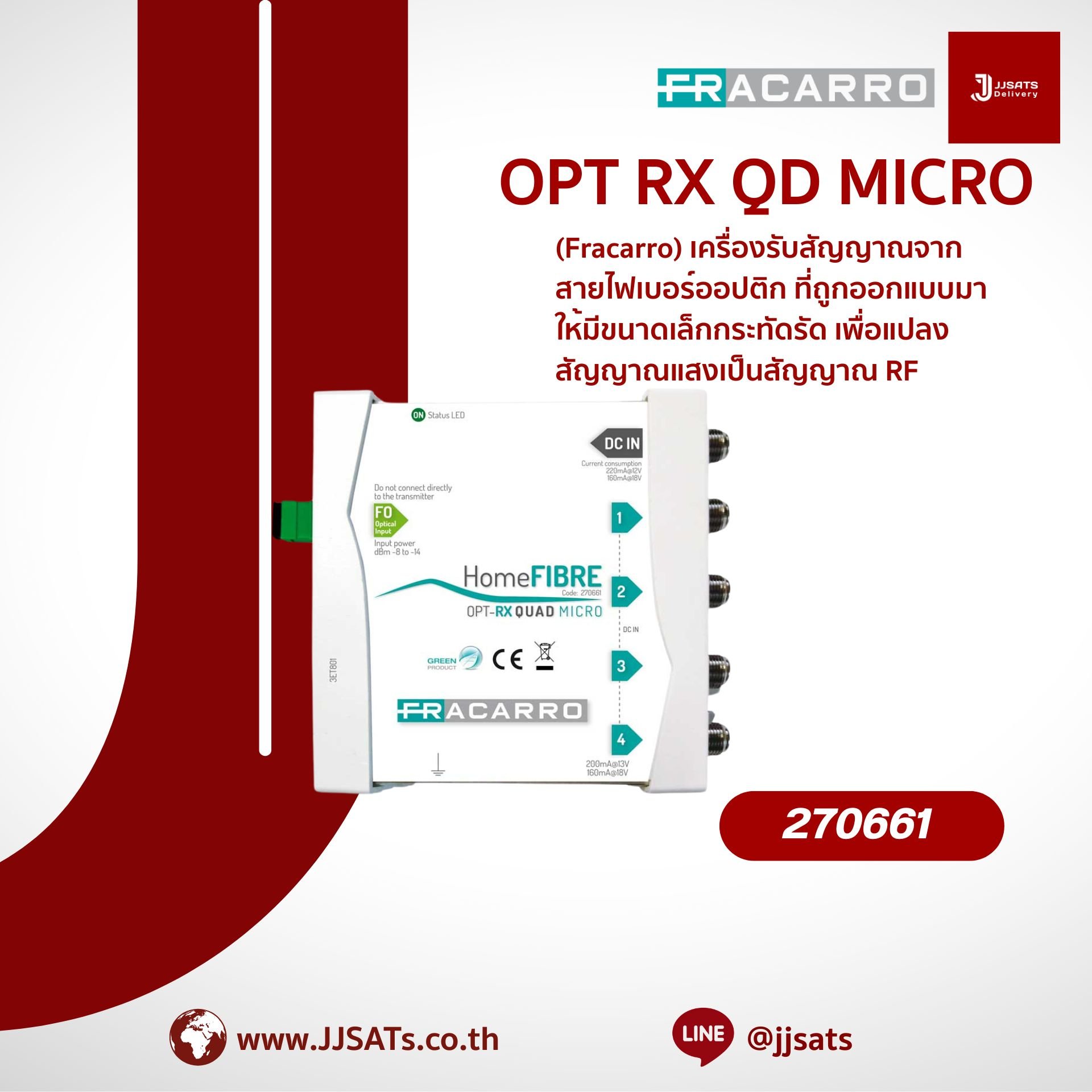

Fracarro OPT RX QD MICRO (270661) ReceiversOptical TV SAT receiver with universal legacy 4SAT+TV+FM outputs, SC/APC optical connector
Technical characteristics:OPT RX QD MICRO | ||
| Code | 270661 | |
| Optical input | ||
| Optical input connector | 1 x SC/APC | |
| Wavelength input | nm | 1260-1650 |
| Optical input power | dBm | ≤ -8 |
| RF output | ||
| Connectors type | F Female | |
| Return loss | dB | -10 |
| Outputs | 4 x TV + SAT | |
| Output level TV | ||
| 8dBmo 8 transponder | dBµV | 79 |
| 8dBmo 16 transponder | dBµV | 76 |
| 8dBmo 40 transponder | dBµV | 72 |
| 14dBmo 8 transponder | dBµV | 67 |
| 14dBmo 16 transponder | dBµV | 64 |
| 14dBmo 40 transponder | dBµV | 60 |
| Output level SAT | ||
| 8dBmo | dBµV | 74 |
| 14dBmo | dBµV | 62@TP |
| Specifications | ||
| Power supply voltage | V | 14/18 from all outputs |
| Current consumption | mA | 200@13V |
| Current consumption | W | 2.8 |
| LED |
| |
| Operating temperature | °C | -5 to +50 |
| Conformity | CEI EN 50083-2 EN60065 | |
| Dimensions and packaging | ||
| Pieces | 1 | |
| EAN code | 8016978101733 | |
| Packaging dimensions | mm | 110 x 130 x 37 |
| Product dimensions | mm | 120 x 100 x 36 |
| Packaging weight | kg | 0.312 |
