SKU : 283167 ASI
Categories : SMATV FTTx HFC Fracarro , SMATV Headends ,
Brand : FRACARRO
Share

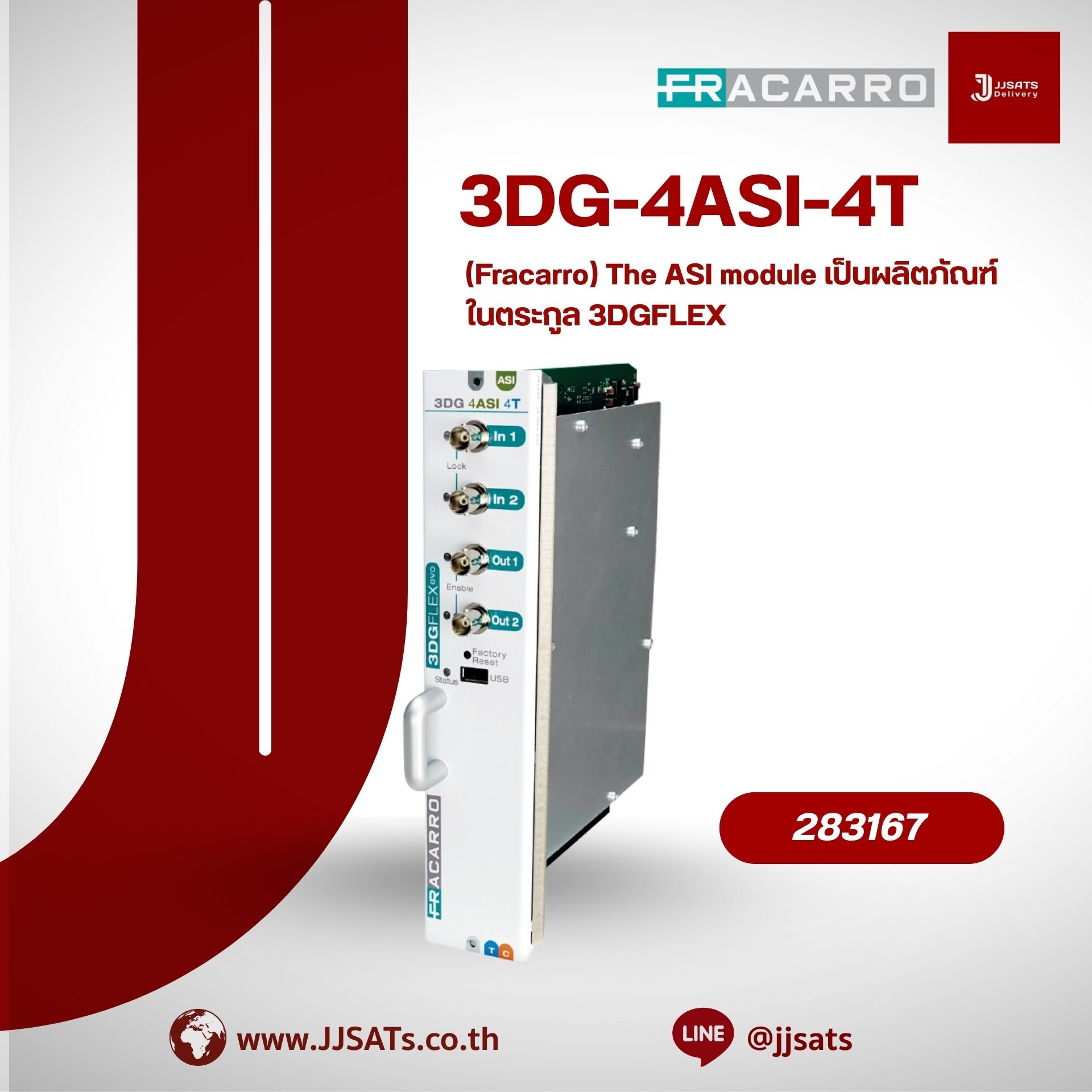

3DGFLEX ASI Series, transmodulation from ASI to DVB-T
| CODE | 283167 | |
| ASI Max bitrate | 214 | |
| Back panel | ||
| Connectors | Back Panel 48 pin | |
| Type | Paralle | |
| Max bitrate | 1000 (bidirectional) | Msymb/sec |
| Outputs | ||
| Generated channels | 4 (2 pairs of adjacent mux) | no. |
| Standard | DVB-T / DVB-C | |
| Channels range | S2-E69 | |
| Frequency | 111-862 | MHz |
| Tuning step | 250 | kHz |
| Level | 95 | dBµV |
| Level adjustment | 0-20 | dB |
| Flatness in band | ±1.5 | |
| MER | ≥36 | dB |
| Spurious rejection | <-50 | dB |
| Spectrum | Normal, inverted |
