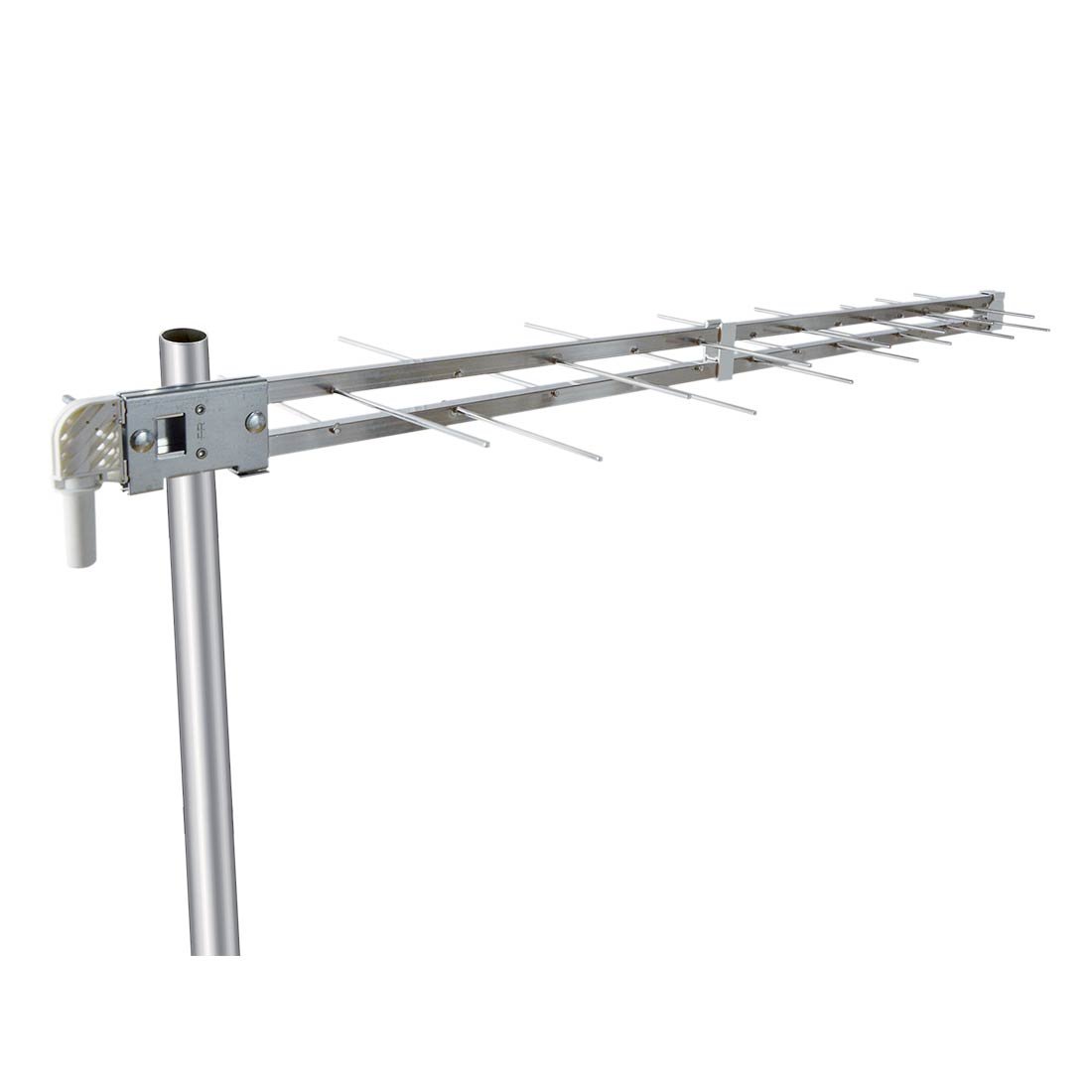

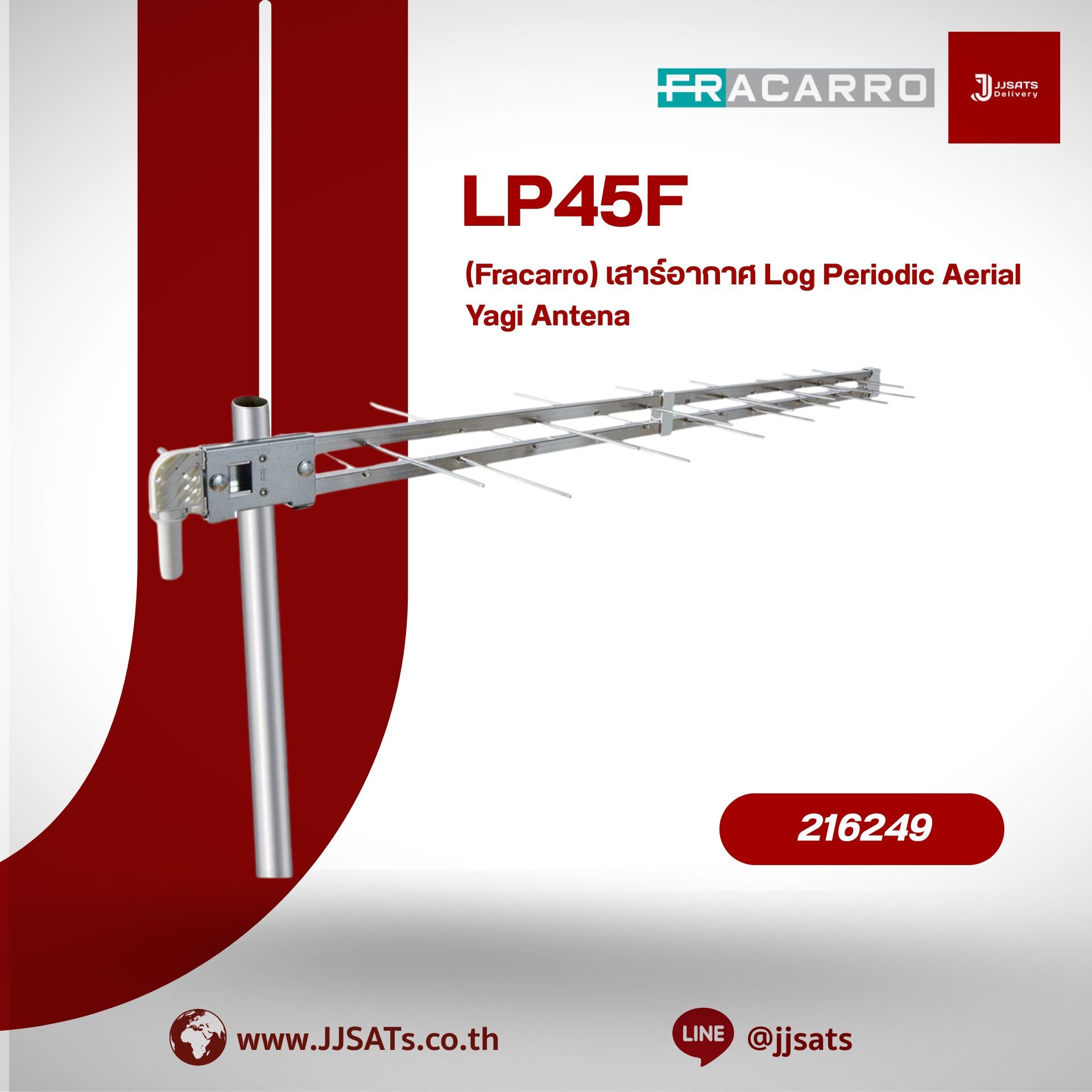

Log-periodic pre-assembled aerials for UHF band characterized by extremely easy connection due to the F connector being located near the mast clamp.
- Due to the specific mast clamp these aerials can be assembled in vertical or horizontal polarisation without additional accessories.
- Geometrical dipole distribution has been redesigned in order to obtain a good 4G LTE filtering.
- White plastic parts.
| CODE | 216249 | |
| Elements | 14+14 | no |
| Band | UHF | |
| Channel | E21-E60 | |
| Bandwidth | 470-790 | MHz |
| Gain | 11 | dBi |
| Front/Back ratio | 36 | dB |
| Return loss | -15 | dB |
| Beamwidth (-3dB) | ±28 | ° |
| Wind load at 120km/h (720N/m²) | 3.0 (29.43) | kg (N) |
| Connector | F | Type |
| Impedance | 75 | Ω |
| Max mast (Ø) | 60 | mm |
| Dimensions (L x H) | 99 x 32 | cm |
| Quantity Masterbox | 15 | pcs |
| Unit weight | 0.80 | kg |
| Total weight | 13.2 | kg |
